Medium Length Full Range Line Array Speaker System for Fixed Installation

EJ2003IC

Only available in Asia

    DESCRIPTION

    PLEASE NOTE: This product is stocked and shipped from our warehouse in China. This product is ONLY available for sale in Asia.

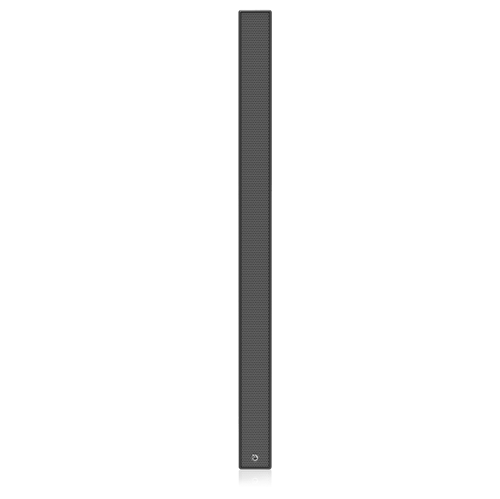

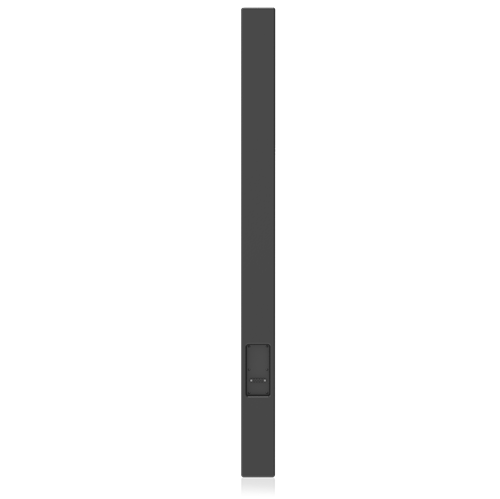

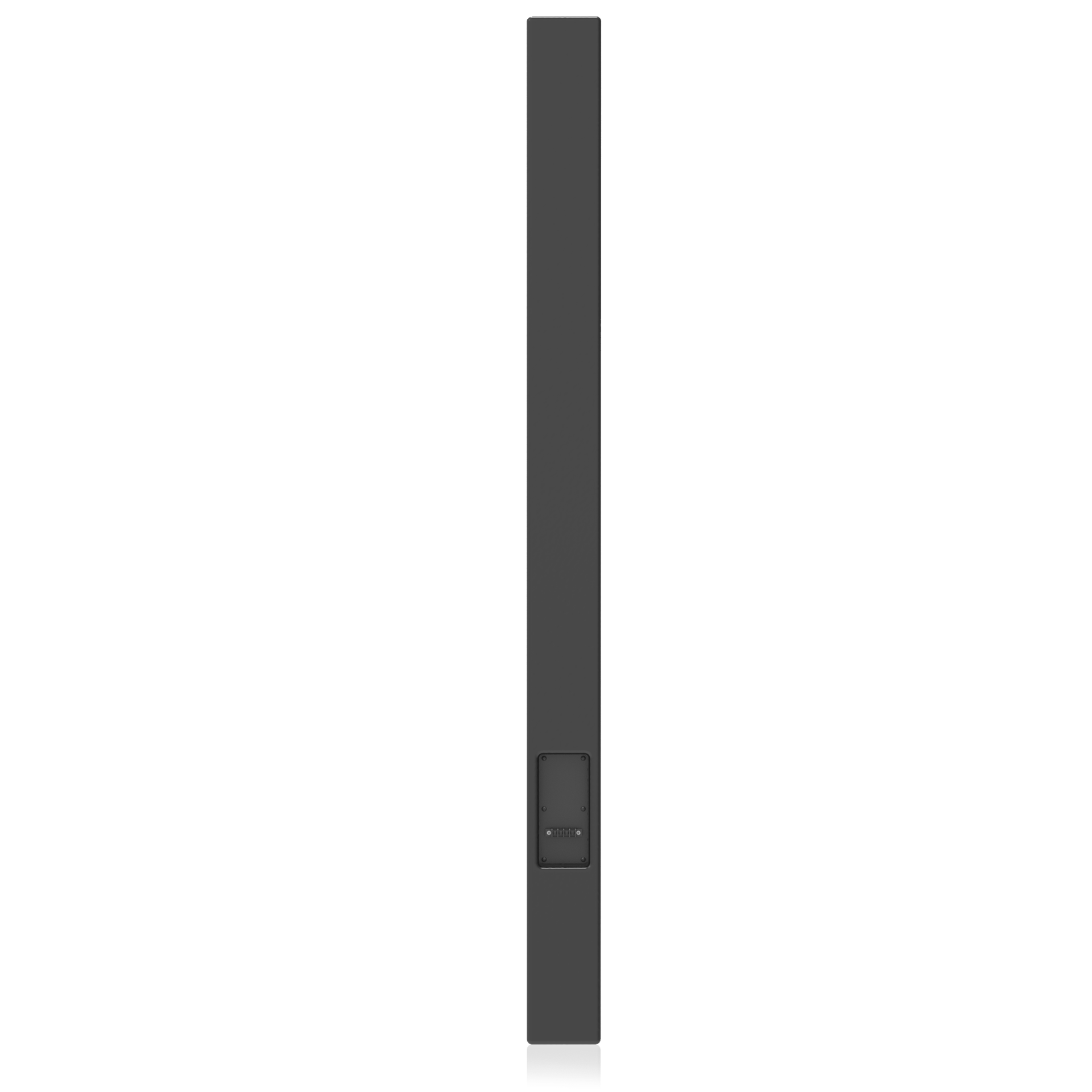

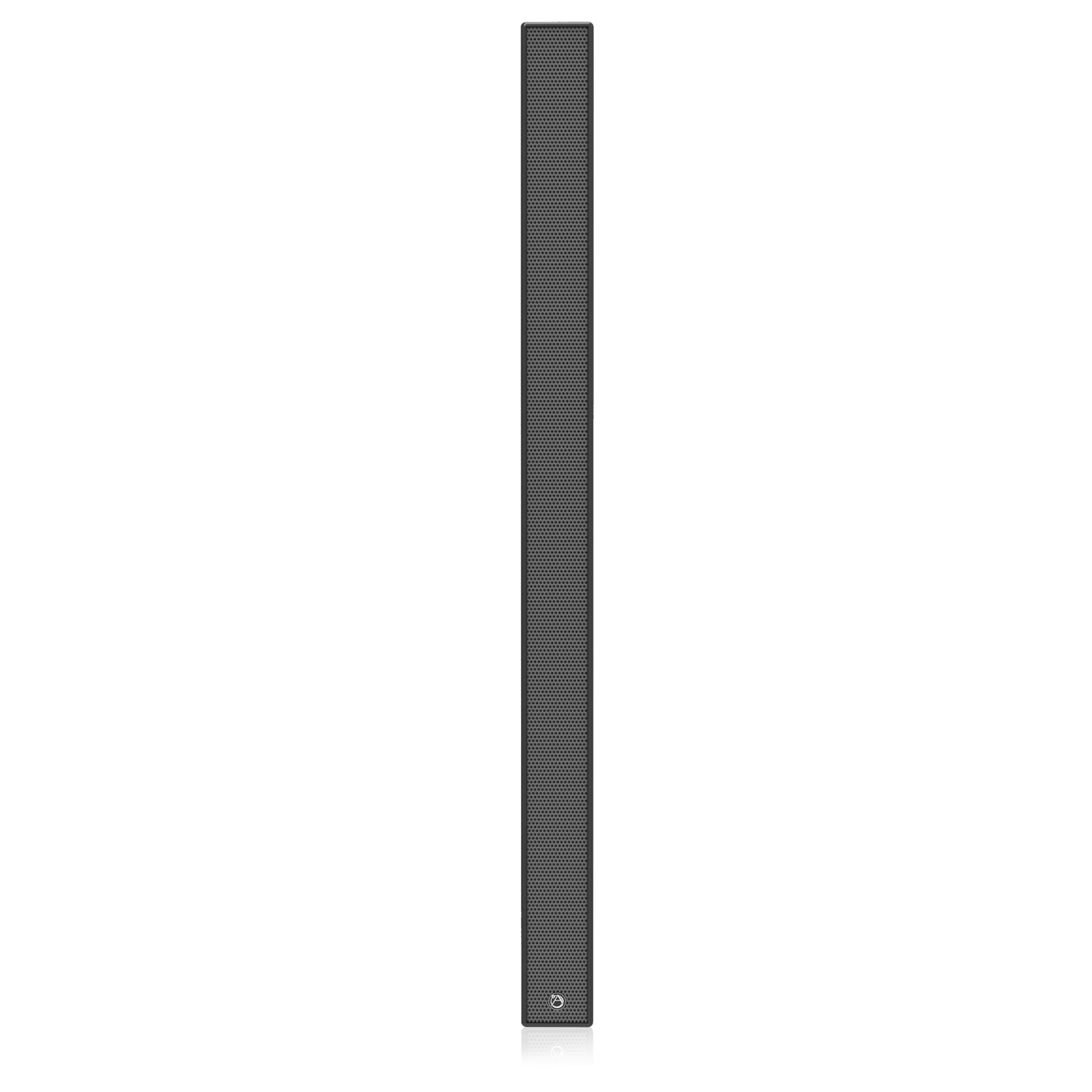

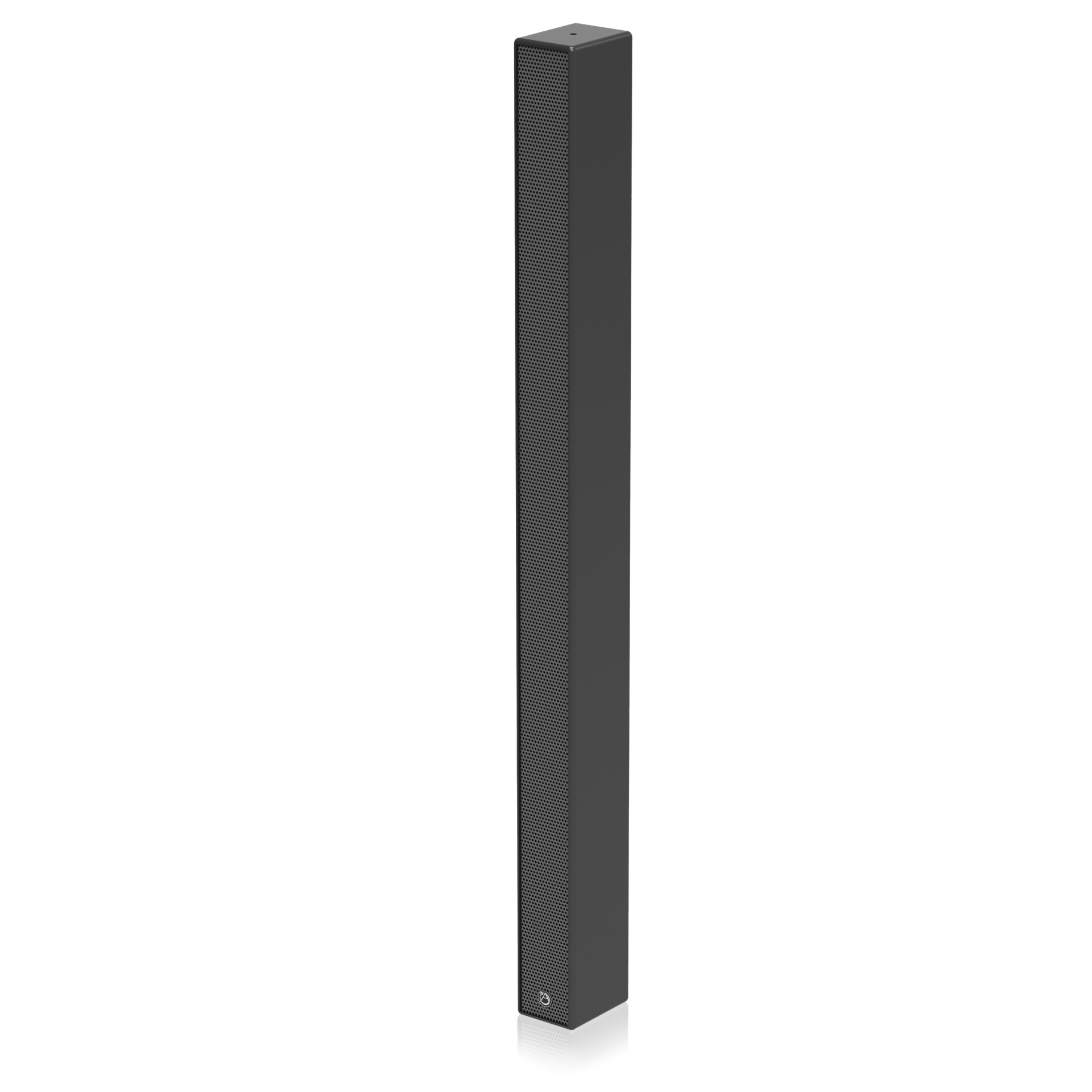

    The AtlasIED EJ2003I-B line array system is a 500W RMS power full range speaker system that is designed for use in speech and music reproduction applications for small venues like houses of worship, medium sized theaters, or schools. The unit consists of a sealed baltic birch enclosure housing twenty proprietary 3" full range drivers.

    The EJ2003I-B is designed to be used in conjunction with a powered subwoofer unit, the EJW115AI-B, that powers the EJ2003I-B with its built in class D amplifier to take advantage of the integrated DSP preloaded in the subwoofer amplifier. The unit can also be used with other high power amplifiers, but utilizing a digital signal processor is recommended for best sound quality.


    Features
    • Twenty Proprietary 3" Full Range Speakers
    • Sealed Baltic Birch Cabinet Design
    • Excellent Pattern Control to 115Hz Vertically
    • Finished in Heavy Duty Black Duracoat™
    • Barrier Strip Terminal
    • Wall Mount Bracket Sold Separately (ALELB1-B)

    SPECIFICATIONS
    Total RMS Power 500 Watts
    Sensitivity 94 dB (1W/1m)
    Frequency Response 175Hz - 16kHz
    Height 65.6" (1660mm)
    Depth 6.4" (163mm)
    MAX SPL 3' 112 dB
    MAX SPL 12' 107 dB
    Width 4.8" (122mm)
    Weight 30 lbs (13.61 kg)

    SUPPORT FILES
    A-Line ELIJAH Data Sheet A-Line ELIJAH Data Sheet
    Owners Manual (12 pages) Owners Manual (12 pages)
