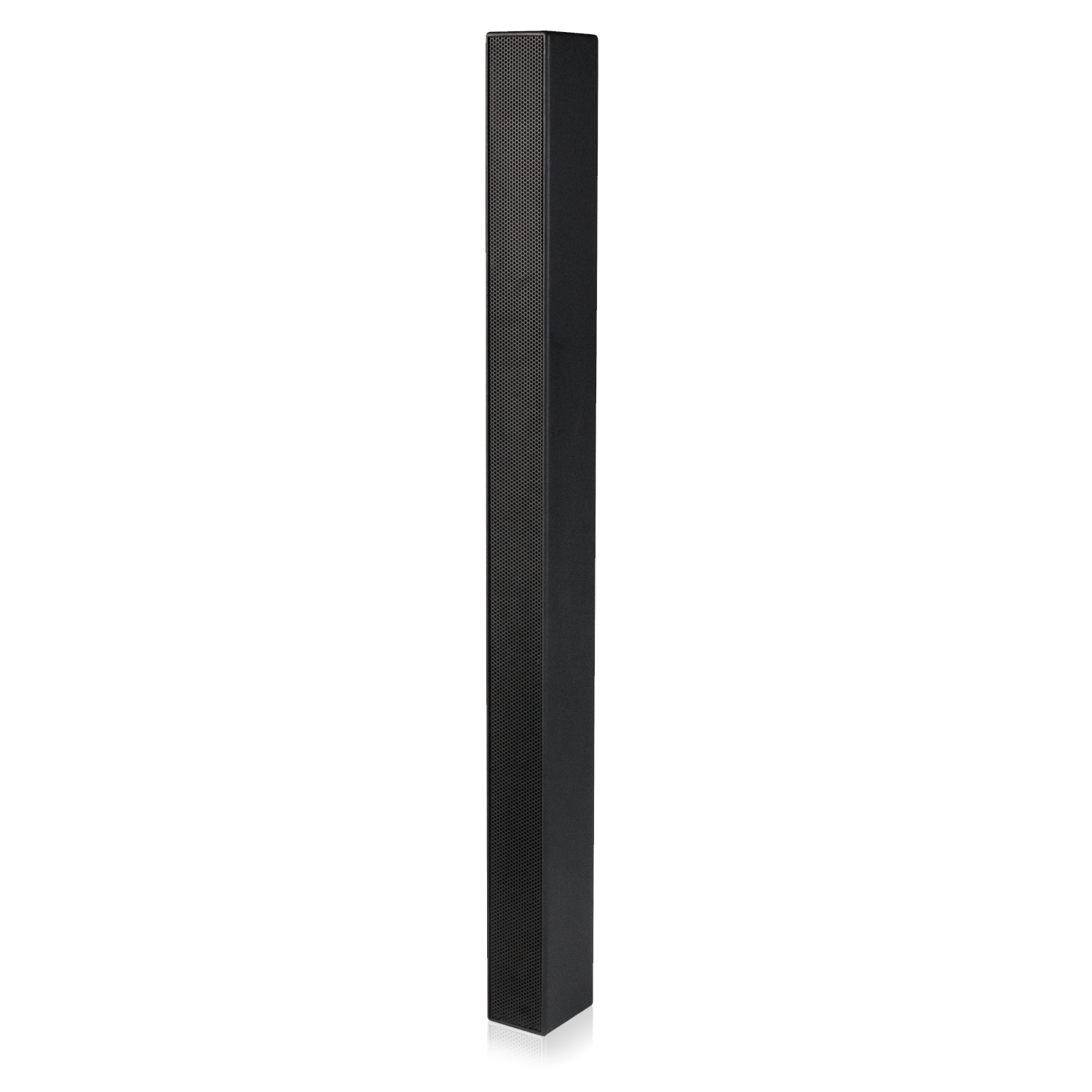

Medium Length Full Range Line Array Speaker System for Portable Installation

EJ2003C

Only available in Asia

  • Non-Powered
    DESCRIPTION

    PLEASE NOTE: This product is stocked and shipped from our warehouse in China. This product is ONLY available for sale in Asia.

    The Atlas A-Line EJ2003-B line array system is a 500W RMS power full range speaker system that is designed for use in speech and music reproduction applications for small venues like houses of worship, medium sized theaters, or schools. The unit consists of a sealed enclosure housing twenty proprietary 3" drivers. The EJ2003-B is designed to be used in conjunction with a powered subwoofer unit, the EJW115A-B, that powers the EJ2003-B with its built in class D amplifier.


    Features

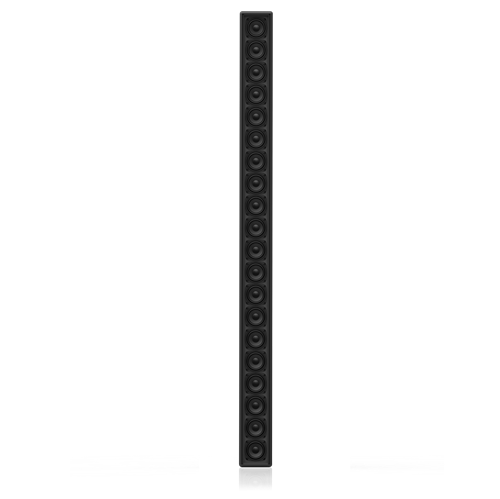

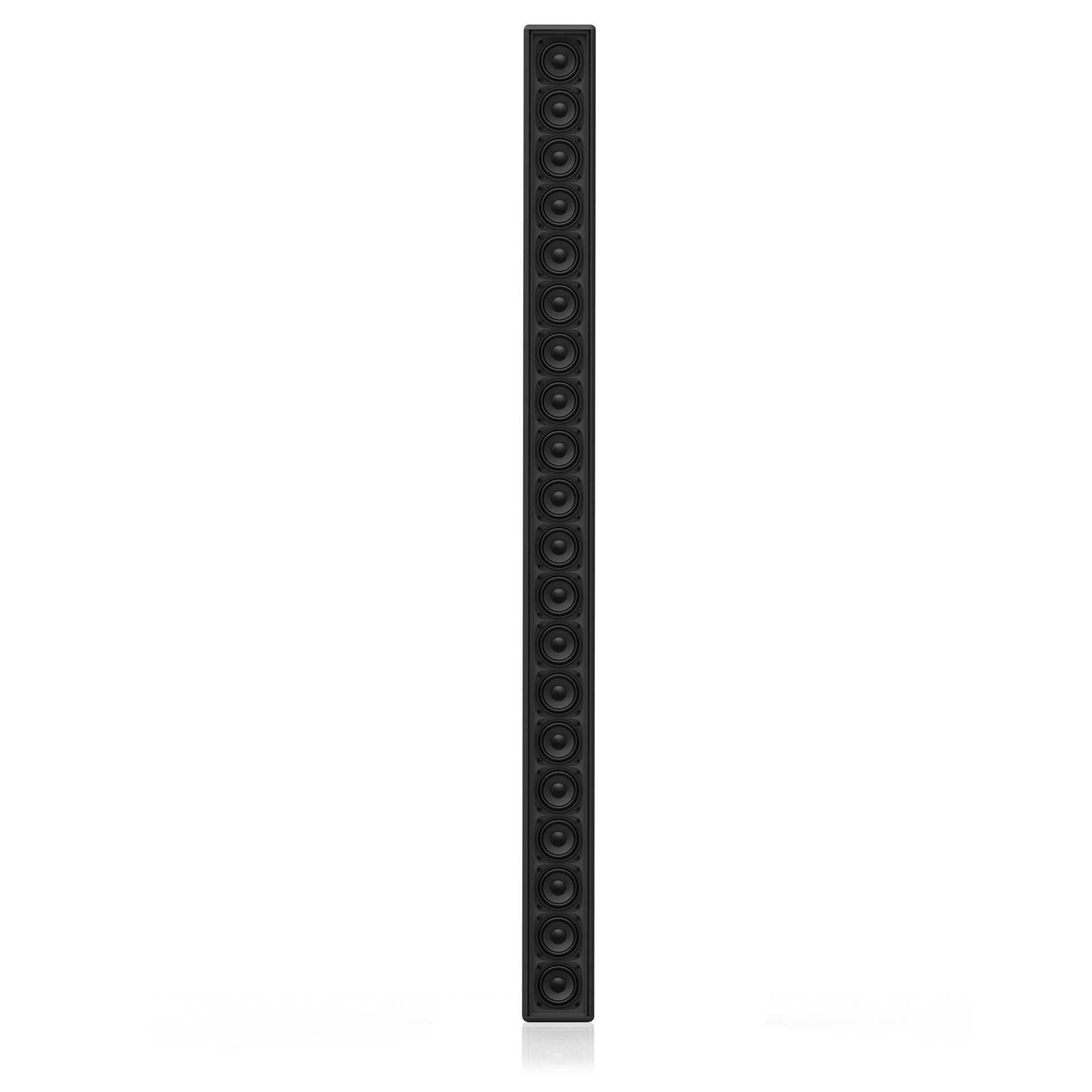

    • Twenty Proprietary 3" Full Range Speakers
    • Sealed Baltic Birch Cabinet Design
    • Excellent Pattern Control to 115Hz Vertically
    • NL4 Speak-ON™ Connectors
    • Finished in Heavy Duty Black Duracoat™

    SPECIFICATIONS
    Total RMS Power 500 Watts
    Midrange RMS Power 1000 Watts
    Sensitivity 94 dB 1W/1m
    Frequency Response 175Hz - 16kHz
    MAX SPL 3' 112 dB
    MAX SPL 12' 107 dB
    Width 4.8" (122mm)
    Weight 30 lbs (13.61 kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    ELIJAH_2003 EASE DATA ELIJAH_2003 EASE DATA
    A-Line ELIJAH Data Sheet A-Line ELIJAH Data Sheet
    EJ2003-B Datasheet (1 page) EJ2003-B Datasheet (1 page)
