20A AC Power Conditioner and Spike Suppressor (Single Housing)

ECM-20SH
  • UL Listed
  • CETL
  • CUL
  • ETL

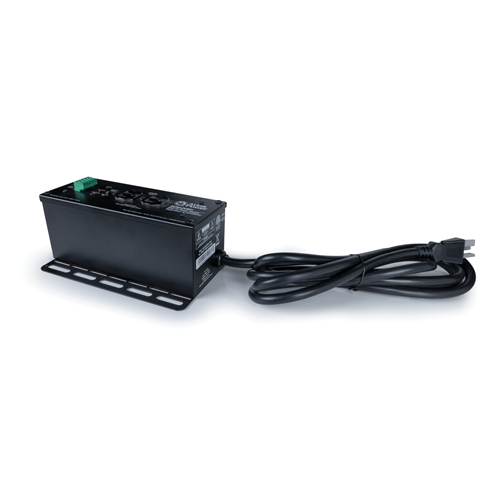

    The Atlas Power ECM-20SH is a 120V 60Hz AC, 20A Single Housing (SH) Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an Atlas Power Sequence controller, ECS-6RM or the ECS-3, up to 1000ft away.

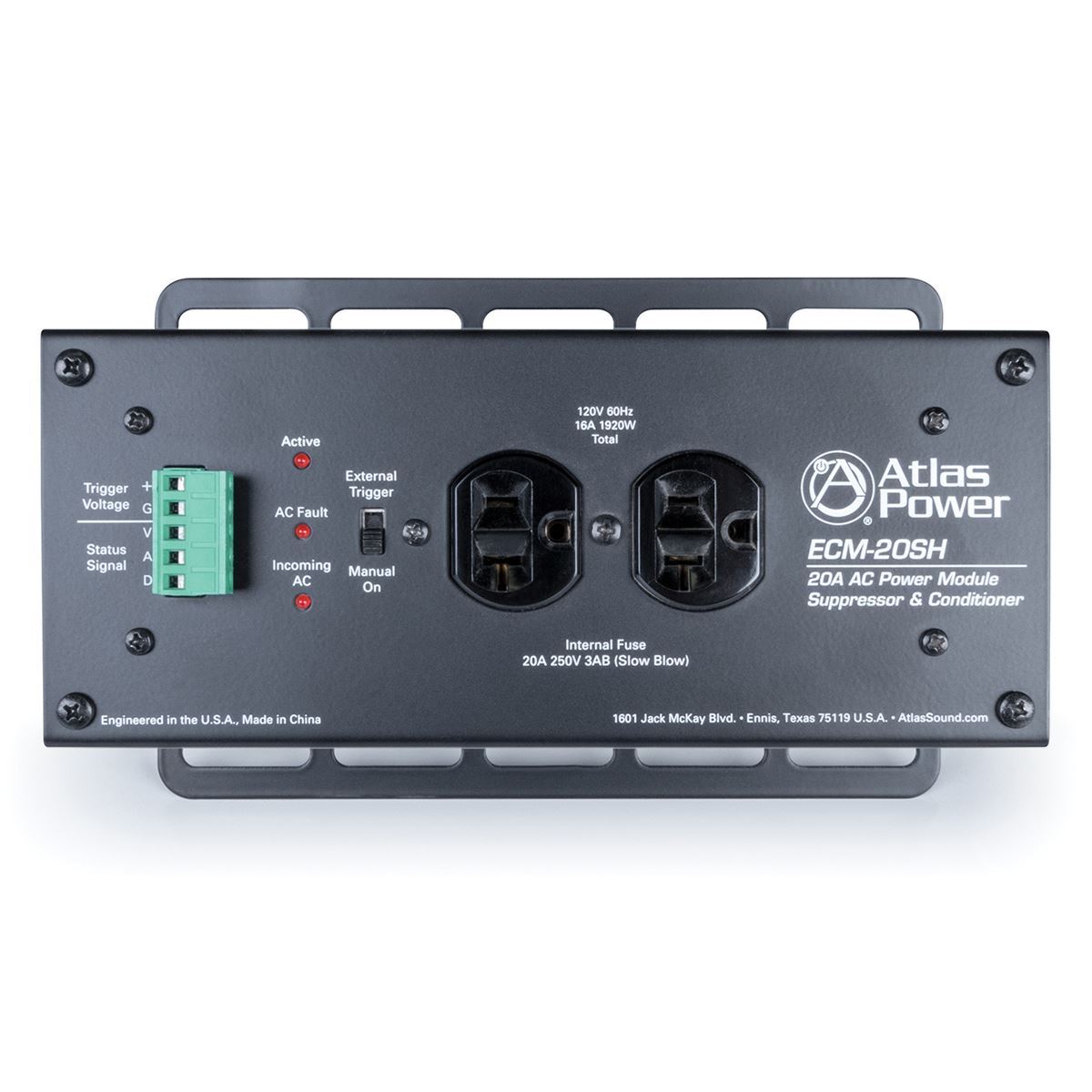

    The ECM-20SH features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies. If an AC spike or surge occurs, the ECM-20SH also incorporates Clamping Suppression technology to prevent the unwanted energy from getting into your AV system. Other features include a Manual Bypass Switch, Incoming AC presence LED, Active LED and an AC Fault indicator. When interfaced with the ECS-6RM Sequencer controller, Extreme Voltage Shutdown Circuitry (EVS) is active, along with Voltage and Current status readings.

    Features
    2 Outlets, 20A
    Radio Frequency and Electromagnetic Interference Filtering
    Spike & Surge Suppression
    Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
    AC Fault Indicator
    Fuse Protection @ 20A Slow Blow
    Manual Bypass Switch
    Active Outlet LED
    RoHS Compliant
    Tech Specs
    Current Rating 20 Amps
    Power Requirement 120V 60Hz
    Certified to Safety Listing MET (UL 1449)
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Power Consumption 5 Watts
    AC Mains Power Cord 9' (3m)
    Height 3.0" (76.2mm)
    Width 8.5" (215.9mm)
    Depth 3.5" (88.9mm)
    Weight 5.5 lbs (2.49 kg)
    Support Files

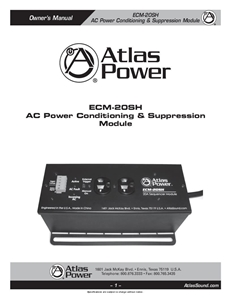

    Owners Manual ECM-20SH_Owners_Manual (16 pages) View | Download

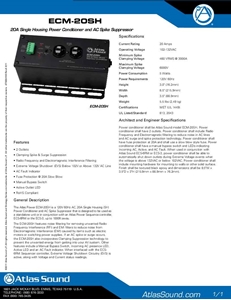

    Data Sheet Data Sheet (1 page) View | Download

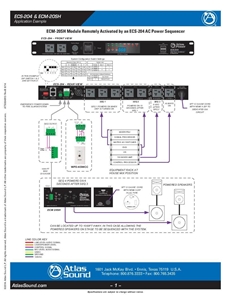

    Application Example ECM-20SH_ECS-204_App (2 pages) View | Download

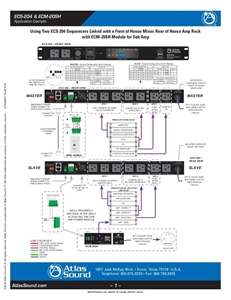

    Application Example ECS-204_ECM-20SH_App (2 pages) View | Download
