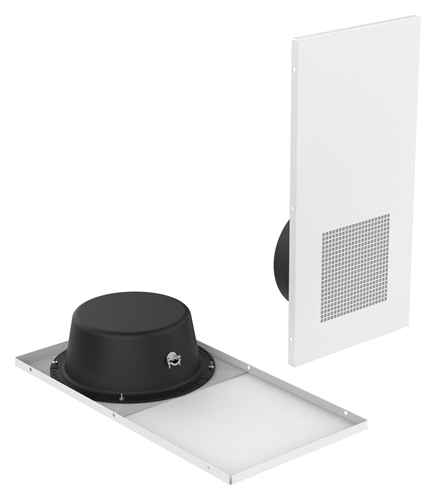

1' x 2' Drop Tile Loudspeaker Package with Perferation Below Loudspeaker Only

DT21
  • UL Listed
  • CUL
  • 70V100VCAPABLE

    Installer friendly AtlasIED DT21 provides clear paging and background music in a labor saving package. Ideal for use in shopping malls, department stores, and anywhere large quantities of loudspeakers are to be utilized.

    The AtlasIED DT21 1' x 2' drop in loudspeaker system simplifies loudspeaker installation by providing an all in one loudspeaker package in acoustic ceiling grids. The system includes the loudspeaker / transformer, enclosure, and grille. Enjoy clear, crisp paging and background music from the installation friendly DT21 without compromising building cosmetics.


    FEATURES
    All In One, Pre-Assembled Unit Drops Into Ceiling Grids to Reduce Installation Time and Costs
    Solid White Panel with Punched Speaker Grille Blends in with Most Acoustic Ceiling Tiles
    Standard 8" Speaker with Built-In 25V / 70.7V Transformer
    UL1480 / UL2043
    SPECIFICATIONS
    Speaker 8" Dual Cone
    Frequency Response 100Hz - 5kHz
    70.7V Power Taps .25, .5, 1, 2, & 4 Watts
    Dispersion 105°– 2kHz Octave Band (-6dB)
    Sensitivity 96dB
    Magnet Weight 10oz (283g)
    Length 23.9" (607mm)
    Width 12.83" (325.9mm)
    Depth 4.53" (115mm)
    Weight 9.25lbs (4.2 kg)
    Color White
    SUPPORT FILES

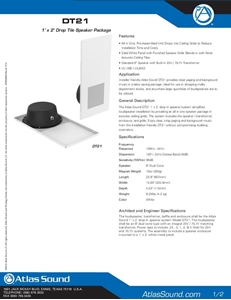

    Data Sheet ATS004928 DT21 Datasheet (2 pages) View | Download
    CAD Drawing DT21 Download
    Revit Drawing DT21 Revit Drawing Download
