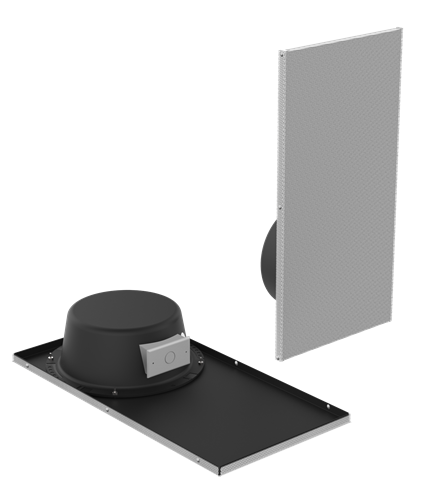

1' x 2' Drop Tile Speaker Package with Perforation Across Entire Tile

DT12
Availability: In stock
MSRP (USD): $132.99/each
Must purchase in multiples of 2
  • UL Listed
  • CUL
  • 70V100VCAPABLE
    DESCRIPTION

    The DT12 from AtlasIED combines ease of installation with superb intelligibility for speech and music reproduction.

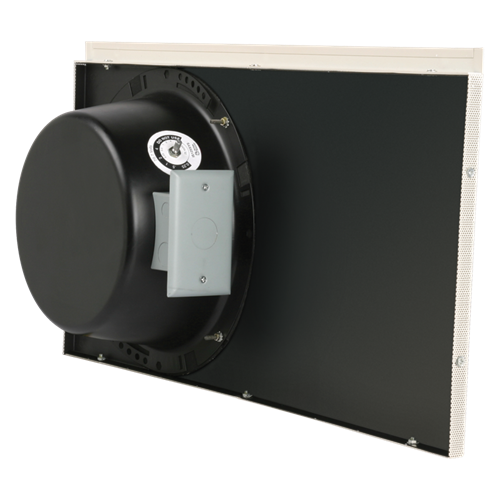

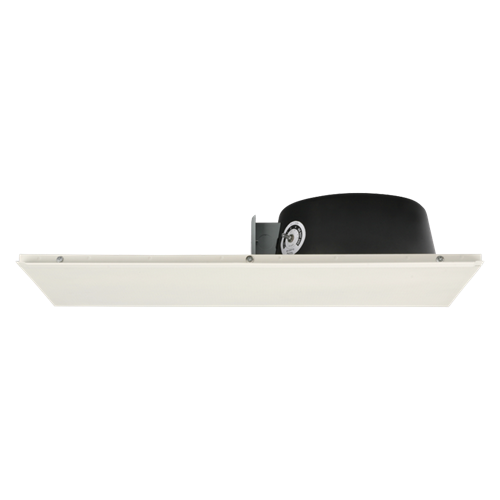

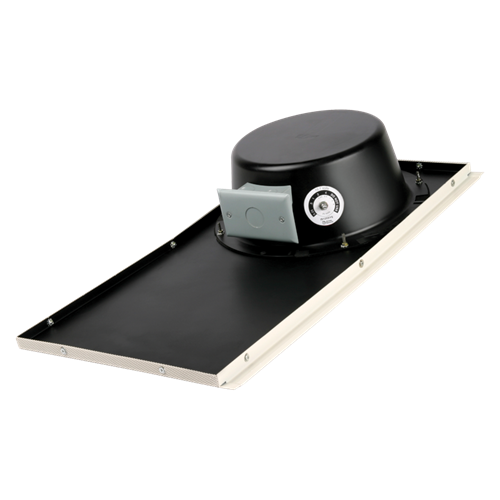

    The 1' x 2' footprint allows quick installation into 2' x 2' or 2' x 4' acoustic tile ceilings. The E.O. box (with cover) is smartly positioned on the side of the conical enclosure to facilitate rigid or flexible conduit. An external tap selector switch (located on the side of the enclosure) allows for easy system tuning by providing quick installer access to the 70.7V tap settings ranging from .25 to 4 watts.


    FEATURES
    • 10oz 8" Dual Cone Speaker with 25V/ 70.7V Transformer
    • External Tap Selector Switch
    • Integral E.O. Box for Conduit or Plenum Wire Termination
    • Low Profile Conical Enclosure
    • 8Ω Bypass
    • ETL Certified, Safety Listed to UL1480

    SPECIFICATIONS
    Speaker Type 8", 10oz Dual Cone
    Sensitivity 97dB (1W/1m)
    Power Taps .25, .5, 1, 2, 4 Watts & 8Ω Bypass
    Length 23-7/8" (606mm)
    Frequency Response 85Hz - 8kHz
    Width 12-7/8" (327mm)
    Dispersion 105° - 2kHz Octave Band (-6dB)
    Depth 4-1/2" (114mm)
    Weight 9.5 lbs (4.3kg)

    SUPPORT FILES

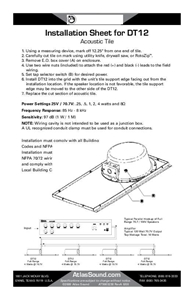

    DT12 Install Sheet (1 page)

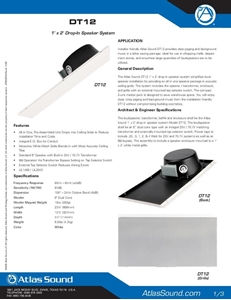

    DT12 Datasheet (3 pages)
