Digital Sound Masking Processor and Amplifier - Replaced by the DSP2212

  • UL Listed
  • CUL
  • BAA
  • TAA
  • 70V / 100V Operation

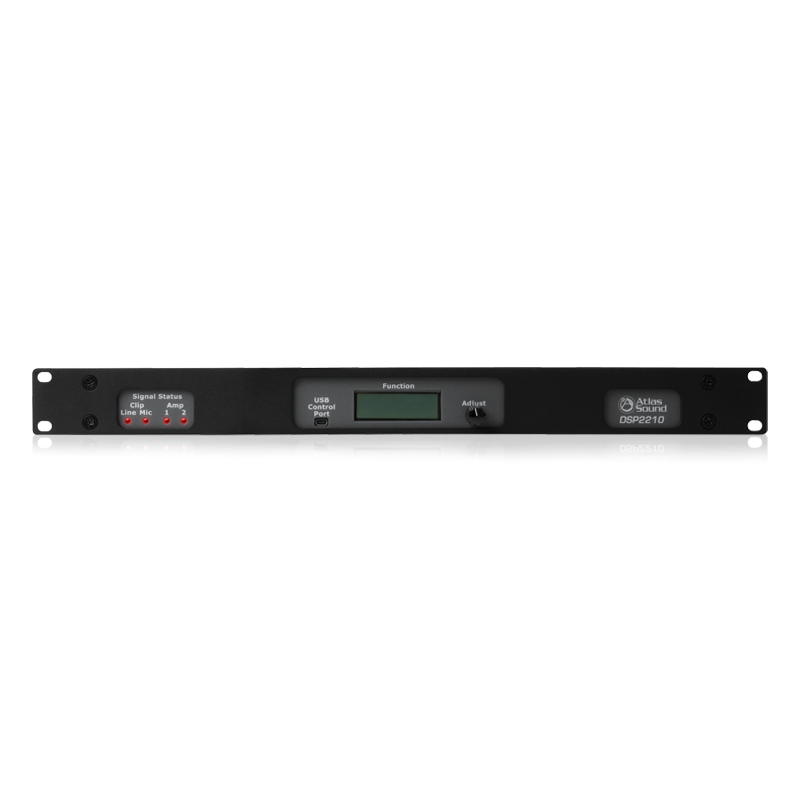

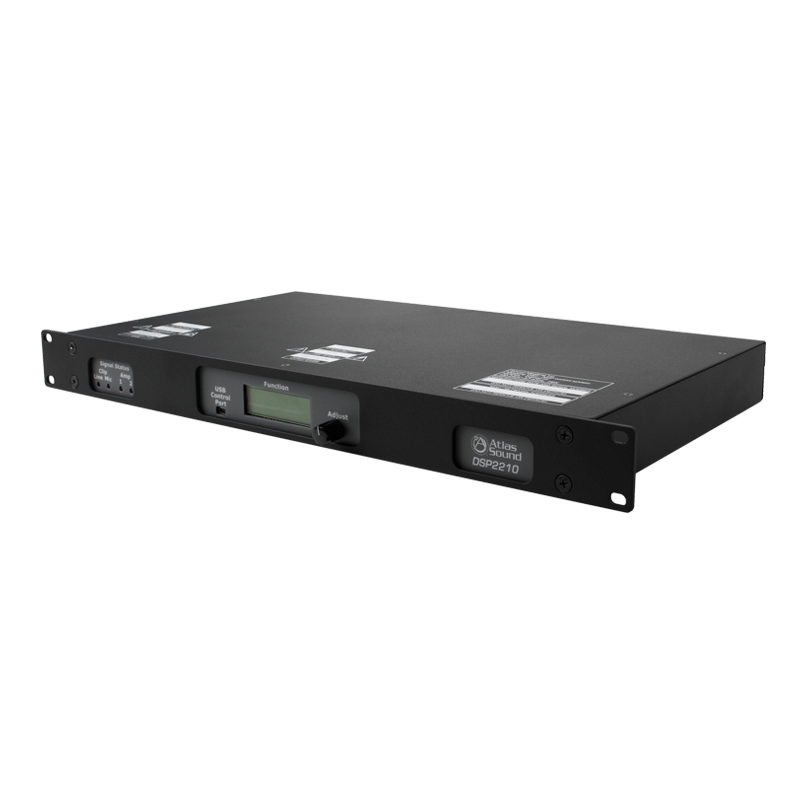

    The AtlasIED DSP2210 digital sound masking processor and Amplifier system is a self contained, compact two zone digital DSP-GUI controlled processor and digital amplifier capable of simultaneous distribution of masking, paging, and background music signals for use in Industrial, Institutional, Commercial and Government facilities.

    The AtlasIED DSP2210 is capable of automatic mixing, set up and administration of all inputs/outputs per zone (channel). This is accomplished via an intuitive ‘simple to use' Graphic User Interface (GUI) managed via a local laptop or desktop computer that is running Microsoft® Windows®. It provides up to 2 channels of independent on-board digital Class-D amplifiers rated at 25W RMS at 70V. It has a pink noise generator which is random and non-repeating up to (215) hours with EQ adjustments programmable on a per zone basis.

    The DSP's provide dynamic control and management with independent 1⁄3 Octave (28) band EQ *(Filter type is Butterworth @ 19dB and Linkwitz-Riley at 24dB) and Parametric EQ 8-band for calibration of all PA and masking signals on a per zone basis. Paging (PA) levels are adjustable in 0.5dB increments per zone on Line Level (Music) and Microphone paging inputs.

    • Two (2) Channels of Random Pink Noise Generator Non-Repeating Up to 215 Hours
    • Two (2) Audio Outputs of 25 Watts RMS Digital Class-D Amplification at 85% Efficiency

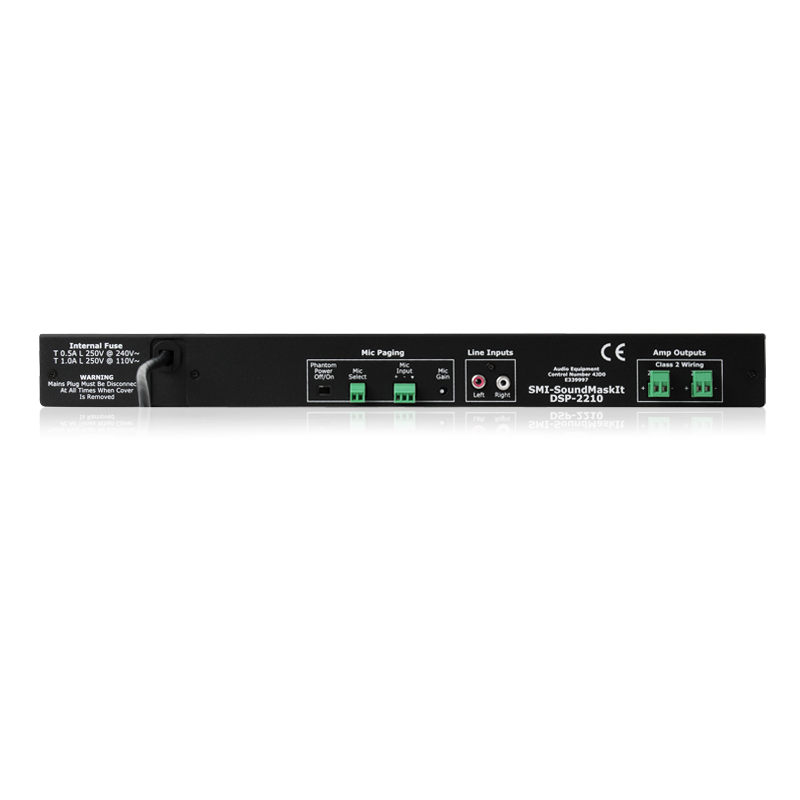

    • Multiple Audio Source Inputs for Background Music and Paging
    • Visual Status Front LCD Display for All Major Input and Output Control Functions
    • UL / CUL / FCC and CB (International) Listed

    Height 1.75" (44.5mm)
    Width 19" (482.6mm)
    Depth 10" (254mm)

    Atlas DSP8807_2212_2210 Software Atlas DSP8807_2212_2210 Software

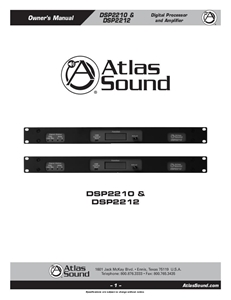

    DSP2210-12 Owners Manual (16 pages) DSP2210-12 Owners Manual (16 pages)

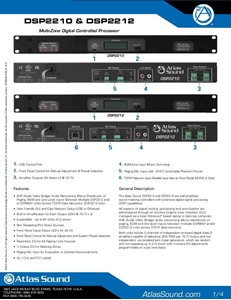

    DSP2210 & DSP2212 Datasheet (4 pages) DSP2210 & DSP2212 Datasheet (4 pages)
    Atlas Sound Masking White Paper (2 pages) Atlas Sound Masking White Paper (2 pages)

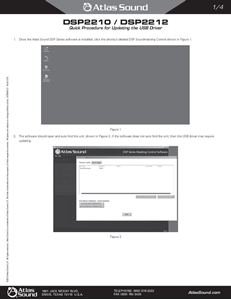

    DSP2210-DSP2212 USB Driver Update Procedure (4 pages) DSP2210-DSP2212 USB Driver Update Procedure (4 pages)
