Dante Accessory Card for DPA Amplifiers

DPA-DAC4
Availability: In stock
Your price (USD): $532.99
  • Dante enabled
    DESCRIPTION

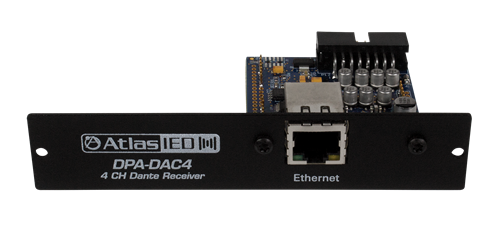

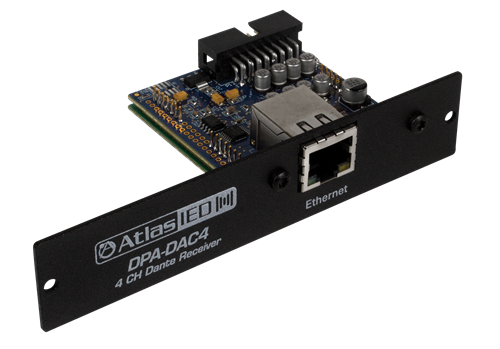

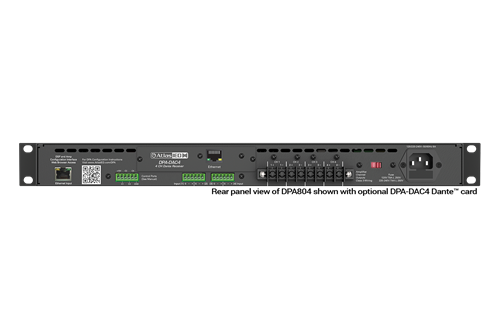

    The DPA-DAC4 accessory card is designed to work in conjunction with DPA Series 4-channel amplifiers. The DPA-DAC4 is a 4-input Dante™ receiver that features digital audio transportation over standard IP networks. The DPA Series 4-channel amplifiers come standard with four balanced line inputs and an accessory card slot to add an additional 4-inputs, giving the amplifier a total of 8-inputs.

    All inputs can be mixed and routed to any of the four amplifier channels. All four amplifier channels have an assortment of DSP tools including level controls, EQ’s, limiters, high & low pass filters, and delay to provide flexibility for a range of applications.


    FEATURES
    • Dante™ Network Audio Enabled
    • 4-Channel Receiver
    • Integrates with 4-Channel DPA Series Amplifiers

    SPECIFICATIONS
    Connector Type RJ-45
    Gain Controls 0dBFS = 20dBu & 0dBFS = 10dBu PCB shunt selectable
    Frequency Response 20Hz - 20KHz +/- 1dB
    THD .06% @ 1KHz
    Maximum Output Level 7dBu
    Height 0.97" (2.46cm)
    Width 4.70" (11.94cm)
    Depth 2.5" (6.3cm)
    Weight 2.6oz (0.07kg)

    SUPPORT FILES

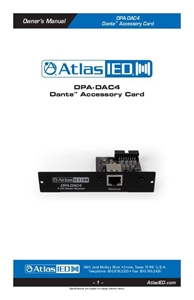

    Owners Manual
    ATS005361 RevB DPA-DAC4 Owners Manual
