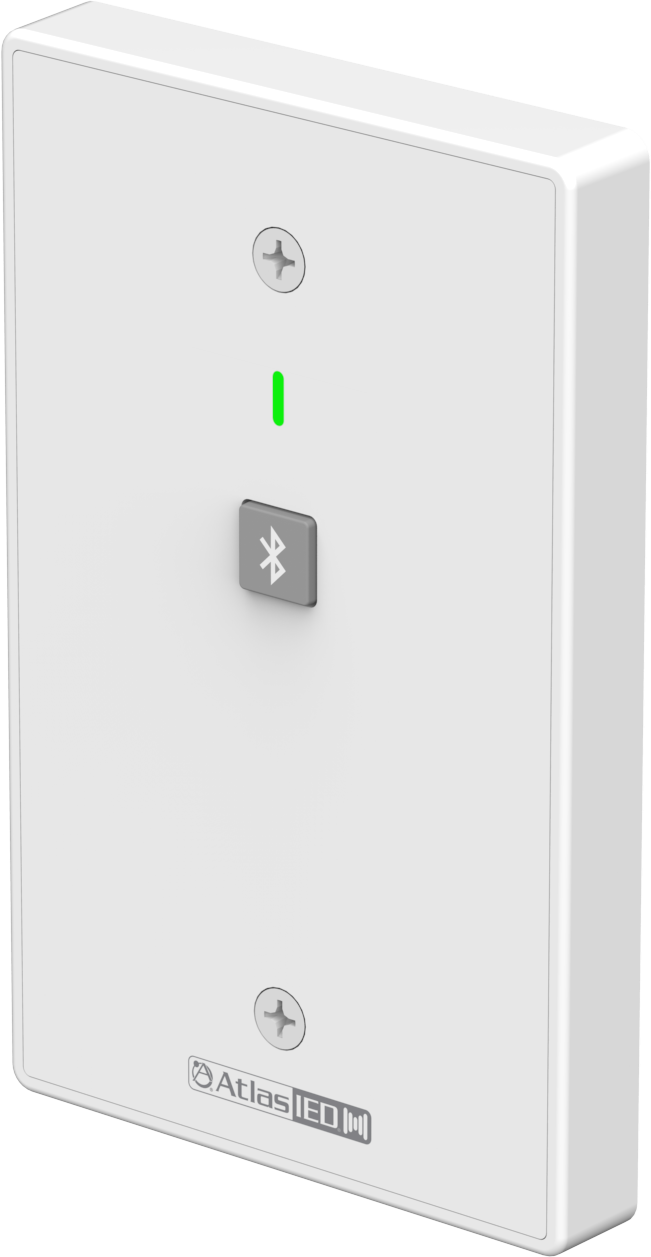

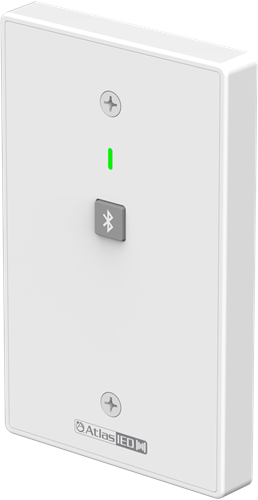

DMA Bluetooth Receiver Wall Plate

The AtlasIED DMA-BT is part of the DMA Digital Mixer Amplifier accessory line and connects directly to a DMA amplifier. Connection is made easy utilizing plug-and-play industry standard CAT5/6 cabling and. The DMA-BT and can be installed up to 330 ft (100 meters) from the amplifier, providing flexible placement options.

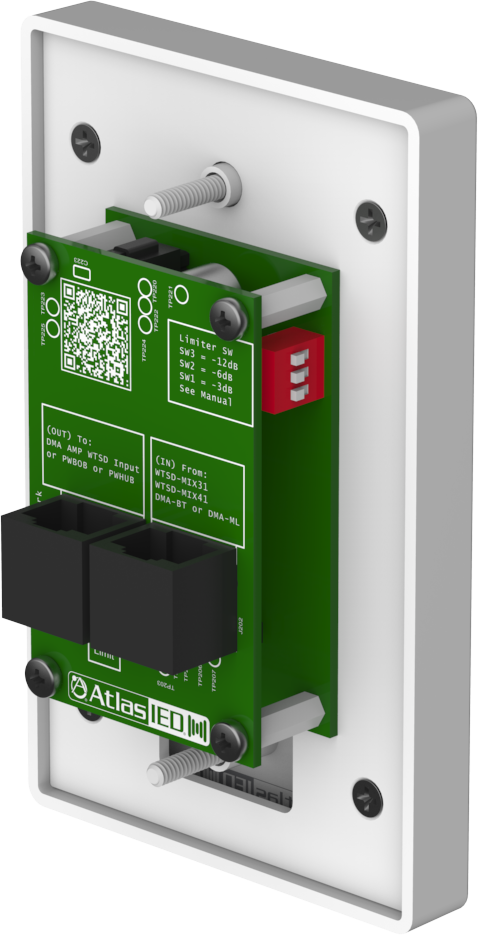

The DMA BT uses commercial-grade Bluetooth 5.1 technology featuring ultra-low noise performance, long-range connectivity, no auto-reconnect behavior, and a quick disconnect bump feature. The Bluetooth discovery ID can be customized through the DMA App, allowing the broadcast name to be tailored to the venue. Installation meets low voltage standards and is straightforward, with the wall plate fitting into a standard single gang electrical box or low voltage ring and requiring only 1.5 inches (38 mm) of clearance depth.

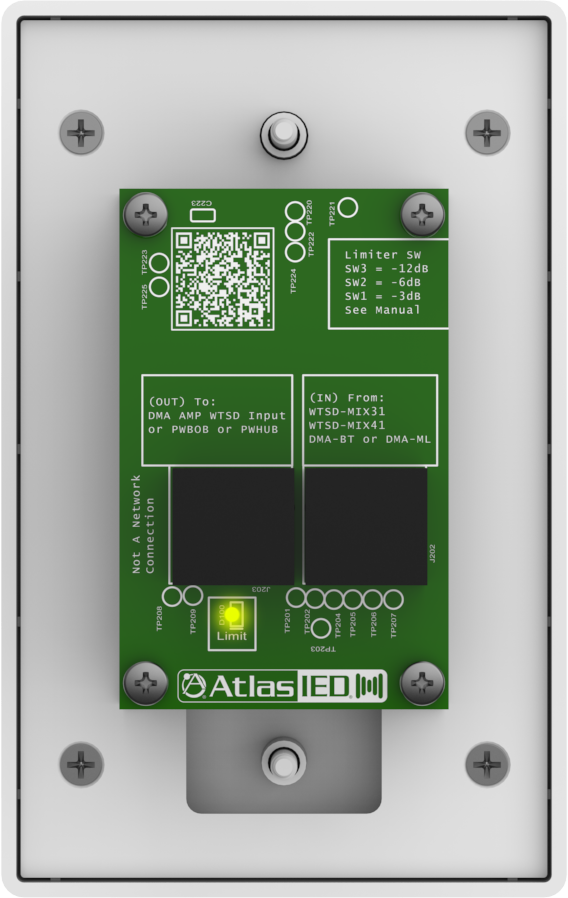

The DMA-BT includes an onboard signal limiter to manage the level placed on the summed bus, with adjustable settings from –3 dB to 21 dB. The DMA-BT faceplate provides signal and limiter status indicators.
