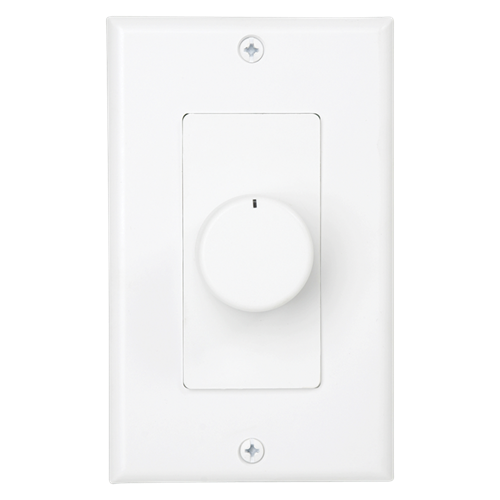

70V Stereo Attenuator with Decora-Style Plate

DAT35ST70
Availability: In stock
Your price (USD): $70.99
  • TAA
    DESCRIPTION

    AtlasIED offers traditional autoformer controls to provide excellent stereo performance and maximum speaker-handling capability. The DAT35ST70 includes positive off and full-power pass through at the maximum setting. Contacts are make-before-break for smooth transition.Designed for 25 or 70.7 volt use provide level control in distributed constant-voltage systems and is UL listed. This single gang model mounts standard E.O. boxes 2 1/2" deep. Includes white and ivory knobs, inserts and trim plates.


    FEATURES
    • Single Gang
    • Stereo Version of AT35D
    • White & Ivory Decora Plates Included

    SPECIFICATIONS
    Plate Color White - Ivory
    Plate Size 1 gang
    Plate Type Decora
    Power Rating 35W
    Total Attenuation 27 dB
    Height 4 1/8" (10.4775 cm)
    Width 2 3/4" (6.985 cm)
    Depth 2 1/2" (6.35 cm)
    Shipping Weight 1.45 lbs (0.66 kgs)

    SUPPORT FILES
    Installation Sheet

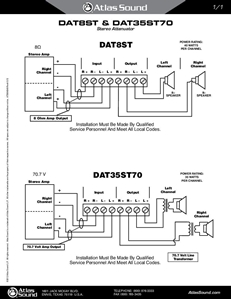

    DAT8ST & DAT35ST70 Install Sheet
    CAD Drawing
    DAT35ST70
