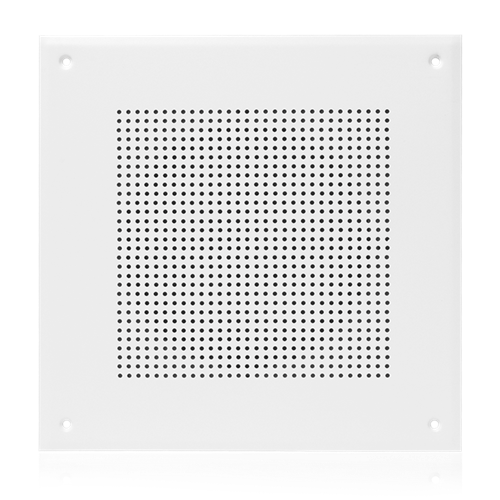

8" In-Ceiling Loudspeaker with 4-Watt 25V/70V Transformer with 161-8 Square Baffle

D161-8
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CUL
  • 70V100VCAPABLE
  • TAA
  • BAA

    Convenient, labor saving assemblies are ideal for use wherever a general-purpose paging and music loudspeaker is required. Quality components are factory wired and shipped complete with dual-cone loudspeaker, dual-voltage transformer and round or square grille. D Series incorporates 8" model C10A with a 10-ounce ceramic magnet. Versatile 25V/70.7V transformer includes pre-wired secondary leads with color coded, stripped and tinned primary. Recessed grilles are offered in square versions with attractive white epoxy finish. To meet code requirements and facilitate installation in a wide variety of ceilings, AtlasIED offers an optional selection of recessed and surface mounting enclosures, mounting rings and tile bridge accessories.

    Features
    Save Time and Money with Factory-Assembled Loudspeaker, Transformer and Baffle Packages
    Tech Specs
    Frequency Response 100Hz - 10kHz
    Sensitivity 97dB
    Power Taps .5, 1, 2, & 4 Watts
    Speaker Type Treated Paper
    Dispersion 105°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 5.33 lbs (2.42 kgs)
    Support Files

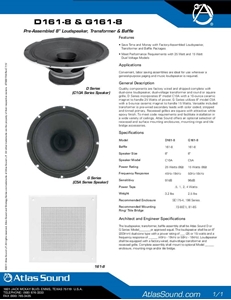

    Data Sheet D161-8 & G161-8 Data Sheet (1 page) View | Download
