Telephone Intercom Handset / Chrome Hook Switch / 25 inch Armored Cable

Name: Discontinued Obsolete SKU
Brand: AtlasIED
SKU: CE-2A-AC
Rating: 5 (5 reviews)

CE-2A-AC

DESCRIPTION

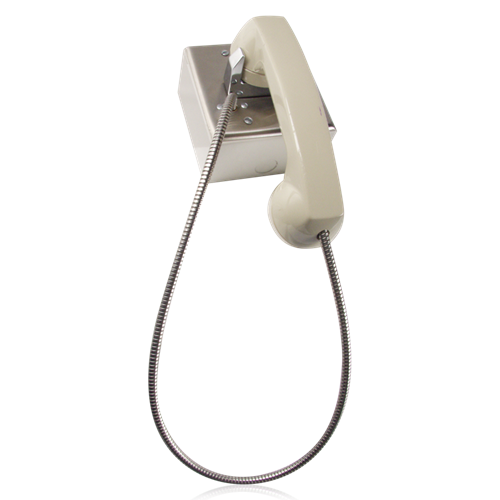

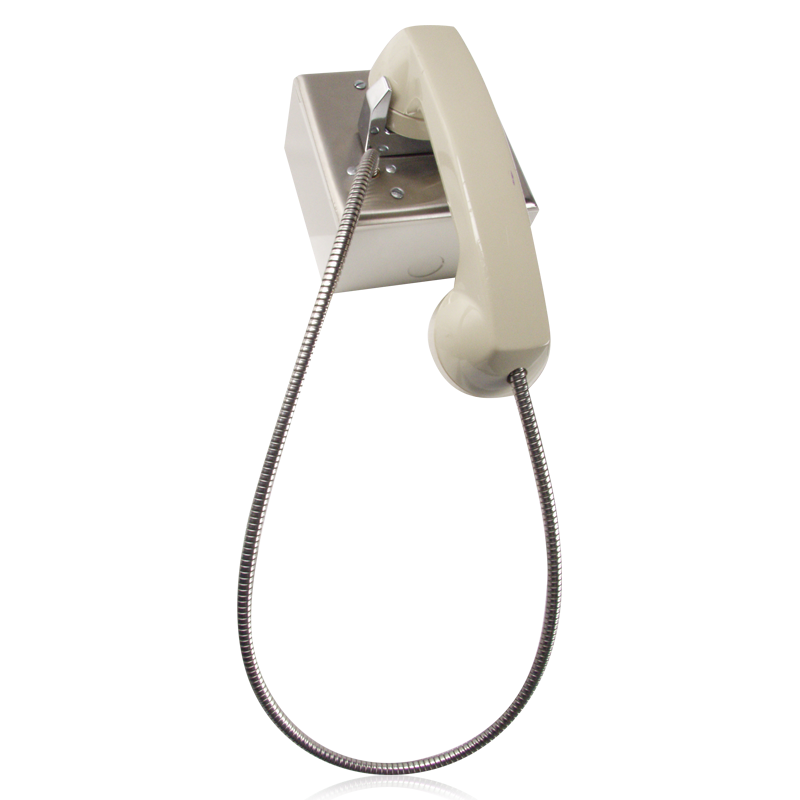

The CE-2A-AC. features a standard "500" style neutral color handset with a chrome hookswitch, and brushed stainless steel plate. The hookswitch is a leaf type with cross bar palladium contacts for long-life and trouble-free operation. Model CE-2A-AC includes a 25" (635mm) stainless steel armored cable, securely fastened to mounting plate and handset for installations that require vandal protection. (Option requires 3 1/4"(83mm) in front of plate, 1 1/2" (38mm) behind plate).

Features

Brushed Steel Wall Plates Fit Standard 2 Gang Electrical Boxes (Hardware Included)
Circuitry Provides Precise Speech Reproduction
DPDT Style Hookswitch can be Wired as Form A, B, or C to Meet Your System Needs
Shipped Assembled and Wired to a Barrier Strip Terminal Block on the Mounting Plate with Color Coded Leads and Spade Plugs
Units are Designed for Use with Atlas PVP-24 Visitation System and Common Talk Phone Systems

SPECIFICATIONS

Height	4 1/2" (11.43 cm)
Depth	2 1/4" (5.72 cm)
Shipping Weight	1.50 lbs (0.68 kgs)

SUPPORT FILES

CE Series Installation Instructions (1 page)

View | Download

Telephone Intercom Accessories Datasheet (3 pages)

View | Download
