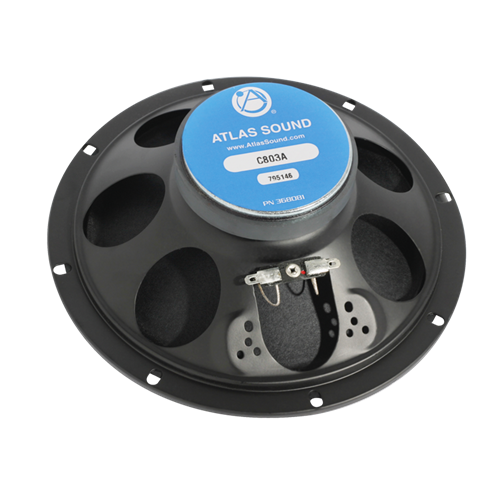

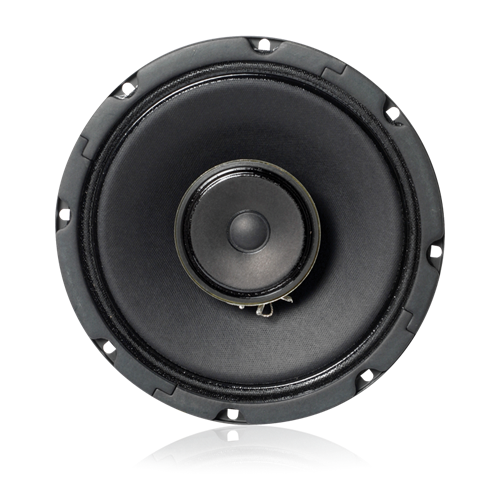

8" In-Ceiling Coaxial Speaker with 5-Watt 70V Transformer

C803AT70
Availability: Call Us for Product Availability
MSRP (USD): $70.99
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

    Model C803AT70, A high-quality 16-watt loud speaker with a factory-installed 70.7V 5W linematching transformer

    Model C803AT70 utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance.

    This coaxial speaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

    The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).

    Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.


    FEATURES
    • Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
    • Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
    • Offers Proven Performance with Wide Frequency Response
    • Post-Mounted Tweeter Adds Strength and a More Attractive Appearance

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 98dB (peak), 95dB (avg)
    Frequency Response 100Hz - 10kHz
    Power Taps .5, 1, 2, & 5 Watts
    Dispersion 120°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.67 lbs (1.66 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

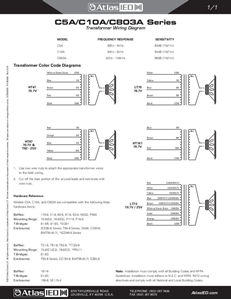

    C5A, C10A, C803A Install Sheet (1 page)

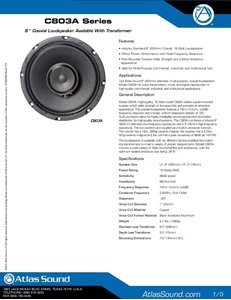

    C803A Series Datasheet (5 pages)
    C803-GD87 EASE DATA
