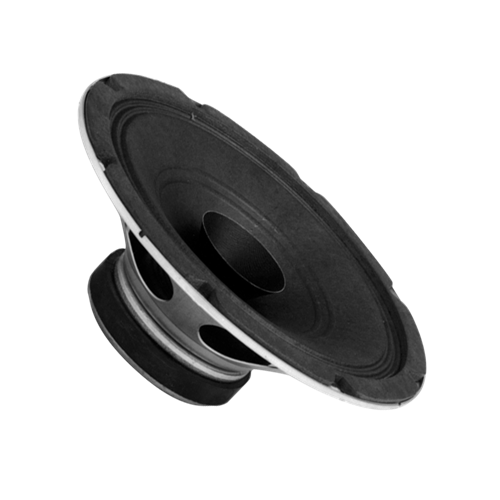

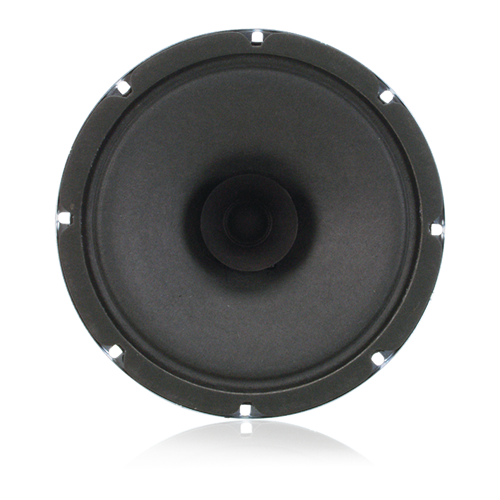

8" Dual Cone In-Ceiling Loudspeaker with 4-Watt 25V/70V Transformer and 5oz Magnet

C5AT72
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CUL
  • 70V100VCAPABLE

    Model C5AT72 is a reliable, economically priced 15-watt loudspeaker with a pre-mounted 25/70.7V 4W transformer that offers many features found in loudspeakers costing considerably more.

    It includes a curvelinear, treated-paper cone for lower harmonic distortion. It is also equipped with a full 1" diameter copper voice coil with a black-anodized aluminum former for better power dissipation.

    Model C5A operates within a frequency response range of 50Hz - 18kHz with a sensitivity of 96dB and a dispersion angle of 105°.

    It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.

    Features
    Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
    Industry Standard Value Loudspeaker with Proven Performance
    Mounts a Wide Selection of Atlas Sound Baffles
    With Factory-Installed LT-72 Line-Matching Transformer
    UL Certified, Safety Listed to UL1480 and UL2043
    Tech Specs
    Speaker Type Treated Paper
    Sensitivity 96dB Peak, 93dB Average
    Frequency Response 100Hz - 10kHz
    Dispersion 105°
    Power Taps .5, 1, 2, & 4 Watts
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 2.17 lbs (0.98 kgs)
    Safety Listed 1480
    Support Files

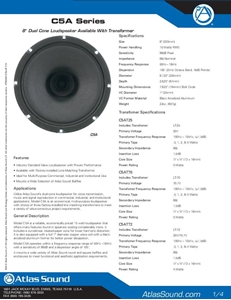

    Data Sheet C5A Series Data Sheet (4 pages) View | Download
    EASE File Download
    Installation Sheet ATS004345 C5A-C10A-C803A Install Sheet RevC (1 page) View | Download
