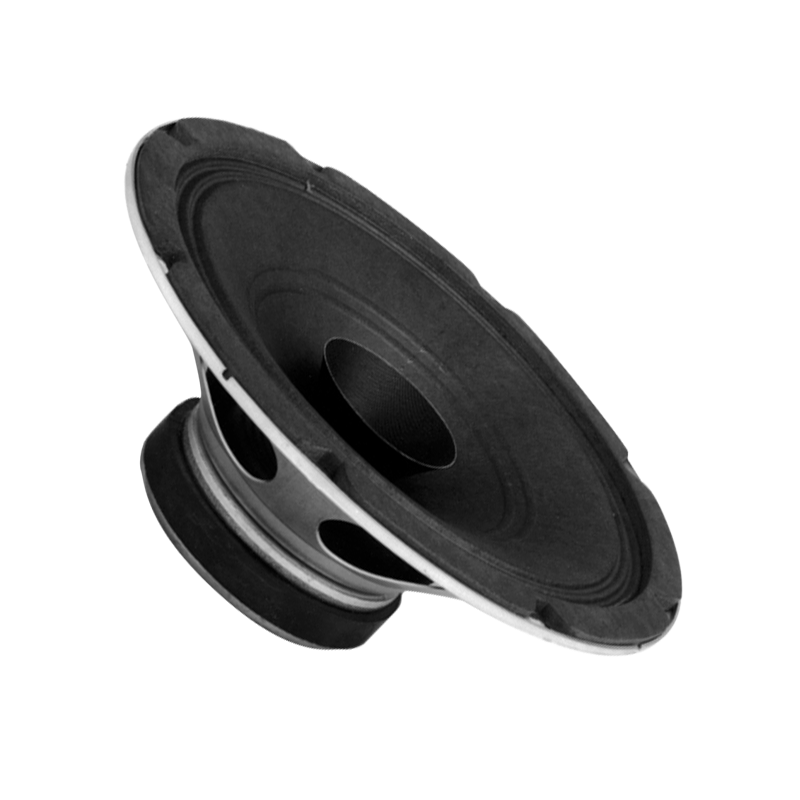

8" Dual Cone In-Ceiling Speaker with 5-Watt 25V Transformer and 5oz Magnet

C5AT25
Availability: In stock
Your price (USD): $38.99
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
    DESCRIPTION

    Model C5AT25 is a reliable, economically priced 15-watt speaker with a pre-mounted 25V 5W transformer that offers many features found in speakers costing considerably more.

    It includes a curvelinear, treated-paper cone for lower harmonic distortion. It is also equipped with a full 1" diameter copper voice coil with a black-anodized aluminum former for better power dissipation.

    Model C5A operates within a frequency response range of 50Hz - 18kHz with a sensitivity of 96dB and a dispersion angle of 105°.

    It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application.


    FEATURES
    • Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
    • Industry Standard Value Loudspeaker with Proven Performance
    • Mounts a Wide Selection of Atlas Sound Baffles
    • With Factory-Installed LT-25 Line-Matching Transformer

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 96dB Peak, 93dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5, 1, 2, & 5 Watts
    Dispersion 105°
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 2.17 lbs (0.98 kgs)

    SUPPORT FILES
    Data Sheet

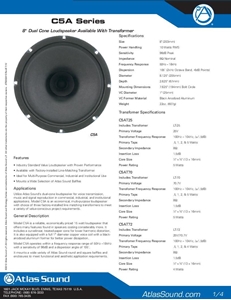

    ATS002419 C5A Series Datasheet RevB
    EASE File
    CAD Drawing
    C5AT25
    Installation Sheet
    C5A, C10A, C803A Install Sheet
