12" 2-Way Coaxial Speaker with 60-Watt 70V/100V Transformer

C12BT60
Availability: In stock
MSRP (USD): $278.99
  • HYFIDROPHOBIC_OPTIONAL
    DESCRIPTION

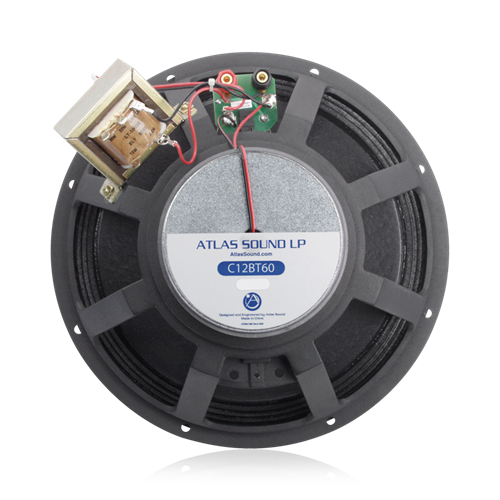

    AtlasIED Model C12BT60 is a professional quality coaxial speaker for use where full range music and voice reproduction are desired. Model C12BT60 combines a 12" diameter low frequency reproducer and a 1" diameter high frequency, post-mounted reproducer. The unit features a curvelinear, treated paper cone for lower harmonic distortion and a built-in crossover network for determining proper frequency selection between the two reproducers.

    The competitively priced unit assures smooth frequency response in a high power handling mode. For best results, enclosures with a volume of 2 cu. ft. or greater (including AtlasIED Models Q4412 or Q4612) are recommended. A factory installed 60 watt line transformer is included with the package, however, the transformer can be easily bypassed for 8 ohm applications.


    FEATURES
    • Coaxial Loudspeaker with 12" Diameter Low Frequency and 1" Diameter High Frequency Reproducer
    • Includes Factory-Installed Line-Matching Transformer
    • Mounts a Wide Selection of Atlas Sound Q Series Enclosures and Standard Baffles
    • Professional Quality Sound Reproduction at a Competitive Price

    SPECIFICATIONS
    Frequency Response 33Hz - 21kHz
    Sensitivity 95dB (at 1W/1m)
    Power Taps 7.5, 15, 30, 60
    Speaker Type Full Range Coaxial
    Dispersion 90°
    Depth 4 3/16" (10.63625 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

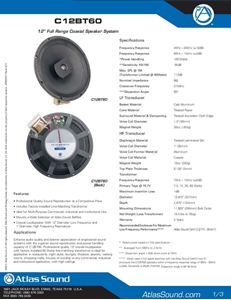

    C12BT60 Datasheet (3 pages)
    C12BT60 (2 pages)
    C12BT60
    C12BT60 EASE DATA
    Speaker Placement Tool

    The AtlasIED Speaker Placement Tool is designed to make it easy to select the proper positioning of speakers in a given room. Choose your AtlasIED speaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    This tool is not suitable for sound masking. For assistance with sound masking, please complete our Sound Making Design Request form

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
