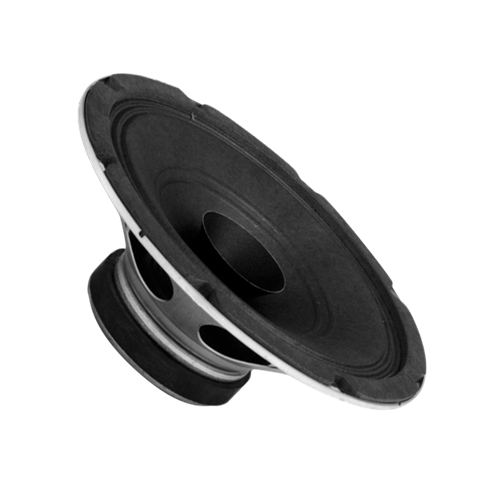

8" Dual Cone In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 10oz Magnet

C10AT72
Availability: In stock
MSRP (USD): $41.99
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

    Model C10AT72 is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 25/70.7V 4W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

    Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°.

    It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.


    FEATURES
    • Acoustically Proven, General Purpose 25-Watt Loudspeaker
    • Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
    • Includes LT-72 Factory-Installed Line-Matching Transformer
    • Mounts a Wide Selection of Atlas Sound Baffles
    • UL Certified, Safety Listed to UL1480A and UL2043

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .25, .5, 1, 2, & 4 Watts
    Dispersion 105°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.00 lbs (1.36 kgs)
    Safety Listed 1480

    SUPPORT FILES
    ATS004345 C5A-C10A-C803A Install Sheet RevC (1 page)

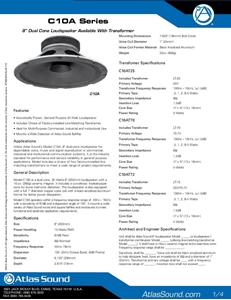

    C10A Series Datasheet (4 pages)
