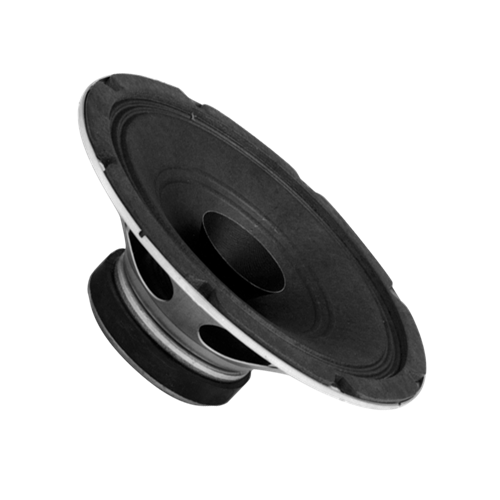

8" Dual Cone In-Ceiling Speaker with 5-Watt 70V Transformer and 10oz Magnet

C10AT70

Availability: In stock
Your Price:
$46.99
  • 70V Capable
  • HYFIDROPHOBIC_OPTIONAL
    DESCRIPTION

    Model C10AT70 is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 70V 5W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

    Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements. To ensure reliability and performance integrity, 100% of all C10A speakers are TEF-tested at the factory.


    Features
    • Acoustically Proven, General Purpose 25-Watt Loudspeaker
    • Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
    • Includes LT-70 Factory-Installed Line-Matching Transformer
    • Mounts a Wide Selection of Atlas Sound Baffles
    • Offers U.S.- Made Quality at a Realistic Price

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5, 1, 2, & 5 Watts
    Dispersion 105°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.00 lbs (1.36 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    C10AT70 EASE DATA C10AT70 EASE DATA
    C10A Series Datasheet (4 pages) C10A Series Datasheet (4 pages)
    C5A, C10A, C803A Install Sheet (1 page) C5A, C10A, C803A Install Sheet (1 page)
