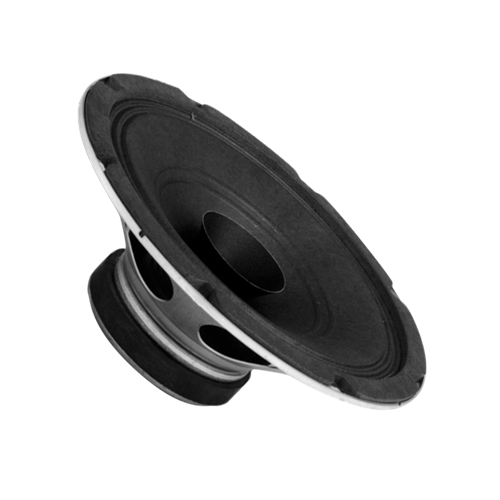

8" Dual Cone 25-Watt, 8 Ohm In-Ceiling Loudspeaker

C10A
  • 4OHM8OHMCAPABLE
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL

    Model C10A is a dual cone, 25-watt 8" (205mm) loudspeaker with a 10 oz. (260g) ceramic magnet. It includes a curvelinear, treatedpaper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a blackanodized aluminum former for better power dissipation.

    Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements. To ensure reliability and performance integrity, 100% of all C10A loudspeakers are TEF-tested at the factory. AtlasIED operates a well-equipped, certified research laboratory which contains a fully anechoic chamber complete with analog Bruel & Kjaer measurement equipment and the TEF 20® audio analyzer.

    FEATURES
    Acoustically Proven, General Purpose 25-Watt Loudspeaker
    Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
    Mounts a Wide Selection of Atlas Sound Baffles
    Offers U.S.- Made Quality at a Realistic Price
    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 45Hz - 19kHz Nominal
    Power Taps 8 Ohms
    Dispersion 105°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.00 lbs (1.36 kgs)
