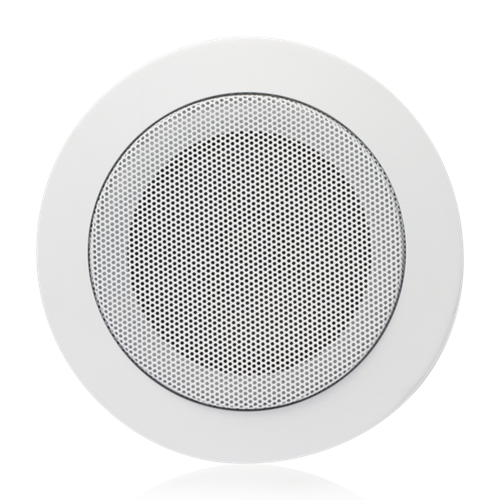

4" In-Ceiling Speaker with 4-Watt 70V Transformer and T720-4 Baffle

BT720-4-T47
Availability: Call for Availability
Your Price:
$107.99
  • 25V/70V Capable
  • CUL
  • BAA
  • TAA
  • HYFIDROPHOBIC_OPTIONAL
    DESCRIPTION

    Attractive B Series loudspeaker assemblies combine the sound performance of a full range 4" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer, and baffle. Models incorporate the popular AtlasIED FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeakers in distributed systems.

    Each loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 25V/70.7V or 70.7V transformer and round or square grille with screw mount or torsion spring (T) installation where noted.

    One model is equipped with the patented EZ-Mount support system. EZB Model is designed for application in suspended ceiling tile installations which do not require a protective enclosure. Assemblies include pre-mounted EZ brackets which are slotted to accept EZ mount support rails (provided). Rails attach with wingnuts and adjust vertically to accommodate varying ceiling depth requirements (Note: No tile bridge is required). All B Series packages are shipped assembled and ready for installation.


    Features
    • Factory-Assembled Loudspeaker Packages Save Time and Money
    • High Compliance 4" Loudspeaker for Full-Range Audio Reproduction in Background Music and Paging Systems
    • Easy to Install Torsion Spring Grille

    SPECIFICATIONS
    Speaker Type 4" (102mm) High Compliance Loudspeaker Transformer / Baffle Assemblies
    Sensitivity 94db (1W/1M)
    Frequency Response 150Hz - 17kHz
    Power Taps .5, 1, 2, & 4 Watts
    Dispersion 135° / -6db, 2kHz Octave Band
    Depth 3.64" (63mm)
    Diameter 4" (10.16 cm)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    B-Series Datasheet (3 pages) B-Series Datasheet (3 pages)
