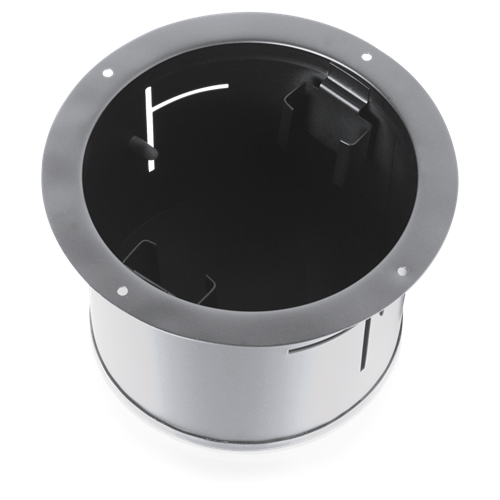

Blind Mount 4 inch Enclosure 5 inch Deep

Availability: In stock
Your Price:
  • BAA
  • TAA

    AtlasIED 4" Blind-Mount enclosure system ( U.S. Patent # 4,673,149 ) provides an easy and cost-effective alternative for secure speaker installation in retrofit ceiling applications. All necessary hardware is provided including a unique support system with mounting ears that telescope out from inside the enclosure and adjust vertically to accommodate ceilings with a thickness of 1/2" (13mm) to 1 3/8" (35mm).

    Units feature CRS construction and include torsion-spring receptacles for quick mounting of torsion-spring grilles. (J-Nuts are also included on the return of the enclosure to accommodate surface-mounting grilles.)

    To allow cable access, enclosure backplates are manufactured with three 1/2" (13mm) conduit knockouts. Enclosure is also equipped with sound damping material to minimize metallic resonance. Models are supported by two mounting ears and will accommodate AtlasIED torsion-spring grille Models T51-84 and T720-4BT which mount 4" (102mm) speakers.

    Finished in a textured black epoxy.

    • Mounting Ears Adjust Vertically to Accommodate Varying Ceiling Thicknesses
    • Quick Mounting of Torsion-Spring and Surface-Mounting Loudspeaker Grilles
    • Support System Enables Enclosure Installation in Retrofit Ceiling Applications

    Depth 5" (12.7 cm)
    Diameter 6 1/2" (16.51 cm)
    Shipping Weight 2.33 lbs (1.06 kgs)
    Mounts Baffle T51-84, T720-4BT
    Warranty Period 60 months from date of purchase

    BMT95-4 BMT95-4
    Enclosures for Blind Ceilings Installation Instructions (1 page) Enclosures for Blind Ceilings Installation Instructions (1 page)
    BT95-Series Datasheet (2 pages) BT95-Series Datasheet (2 pages)
