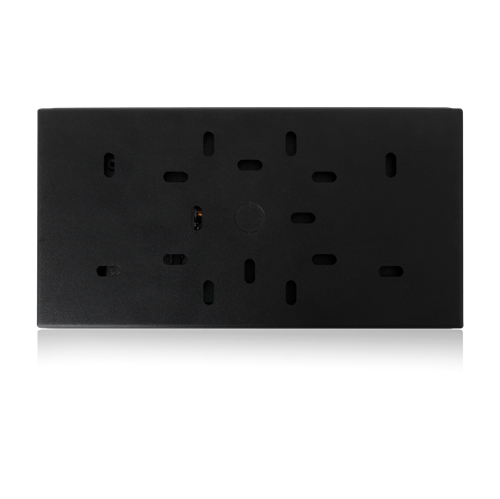

BlueBridge® 7" Touch Panel Wall Controller

BBWP-TOUCH7B
  • UL Listed
  • Touch Control
  • Network Ready
  • PoE Enabled
  • One Cable Installation

    The BBWP-TOUCH7B is a 7 inch touch screen control with multi-page control flexibility. The unit is designed to work with AtlasIED BlueBridge® Designer software allowing for remote control of integrator configured DSP settings. The screen is fully customizable using BlueBridge® Designer software allowing for multi-page control. Unit includes a complete flush mount kit (adapter plate and back box).

    Unit is also available in white finish, BBWP-TOUCH7W.

    FEATURES
    7" Touch Screen
    Designed to Work with BluePanel Software
    PoE Compatible for Easy Installation
    Installs with Included Flush Mount or Wall Mount Hardware
    Optional Rack Mount Panel Sold Separately, BB-TOUCH7-RP
    SPECIFICATIONS
    Screen Size 7" (17.78cm)
    Material Aluminum
    Ethernet Connector RJ45
    Height 5.1" (13cm)
    Width 10" (25.4cm)
    Depth 1.2" (3.0cm)
    Weight 2 lbs (0.9kg)
    SUPPORT FILES
    Software/Firmware
    BlueBridge Touch Firmware 5_5_0
    Installation Sheet

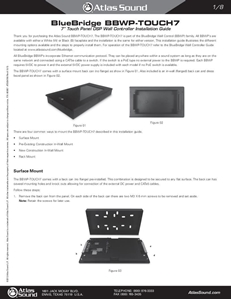

    ATS004748 BBWP-TOUCH7 Install Sheet (8 pages)
    Software/Firmware
    BlueBridge Designer 5.4.1
    Software/Firmware
    BlueBridge BluePanel v5.4.1 (All Units)
