BlueBridge® 4-Button Controller

BBWP-S4B
Availability: Call Us for Product Availability
MSRP (USD): $636.99
  • UL Listed
  • Network Ready
  • PoE Enabled
  • One Cable Installation
    DESCRIPTION

    The BBWP-S4B is part of the BlueBridge® DSP product line. The BBWP-S4B is a four-button wall controller that can be used to change any four preset selections. It can also control button, preset, matrix connect, and mute functions. Using BlueBridge® Designer software, you can virtually assign level values and stack multiple actions to the single button control.


    FEATURES
    • Power and Network Status Indicator LEDs
    • 4 Label Slots with Plastic Protective Covers
    • Aluminum Front Panel
    • RJ45 Ethernet Connector
    • External Power: 2 Pin Detachable Euro Connector
    • IP Reset Switch Push Button
    • Also Available in White

    SPECIFICATIONS
    Power 5V DC @ 1A, Power Supply Included 48VDC-PoE
    Wall Mounting Fits a 2-Gang Back Box
    Height 4.5" (114.3mm)

    SUPPORT FILES
    Installation Sheet

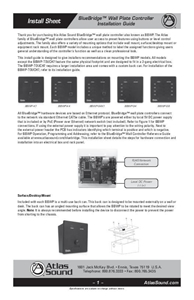

    ATS004731 BBWP Install Sheet (4 pages)
    Owners Manual
    BlueBridge Wall Control Label Template
    Owners Manual
    BlueBridge Designer II User Guide (77 pages)
    Software/Firmware
    BlueBridge Wall Plate Firmware Version 5.3.4
    Software
    BlueBridge Designer II 4.0.0 for Windows
    Software
    BlueBridge Designer II 4.0.0 MacOS
    Software
    BlueBridge Control 4.0.0 for Windows
    Software
    BlueBridge Control 4.0.0 for MacOS
