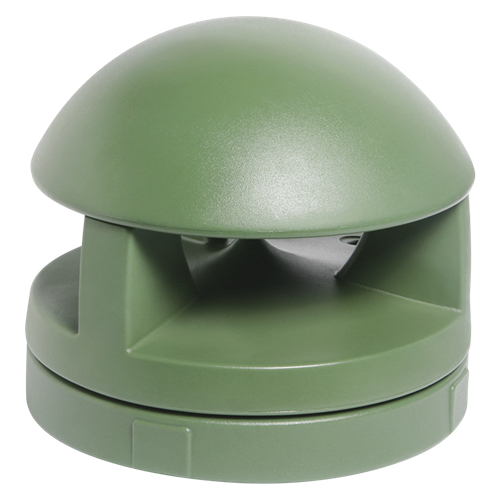

Garden Speaker (Short Base) 8 Ohm

ATS183GS8
    DESCRIPTION

    ***Model has been replaced by the GSS-G***

    The new AtlasIED garden speakers, designed for theme parks, hotels, or any architecturally landscaped area, simplify installation and deliver deep, rich sound. The speaker is a coaxial 8", polypropylene/kevlar cone with rubber surround, 1.5" voice coil, 21 oz. magnet and a 1/2" mylar dome tweeter.
    The AtlasIED garden speakers are designed to blend into any environment. They are available with two different base models. One model includes a short base for surface mounting and the other has a deeper base for in-landscape burial. The two-piece design allows for a two-phase installation. In phase one, the base is installed. Phase two, after initial construction is done, the system contractor can return to install the speaker/transformer. This multiple step process protects the speakers from being damaged during the construction/landscaping process and also eliminates the potential for theft from the construction site. The Garden Speaker base even has a protective cover to keep debris out during construction. Inside the enclosure is a durable 8" coaxial speaker with a great sounding 360-degree horizontal dispersion pattern. The enclosure is made of stable polyethylene, which ensures performance in even the most temperamental and unpredictable climates. The enclosure is available in green finish.


    Features
    • Available in a Green Finish
    • Choice of deep base for landscaping or shallow base for surface or shallow bed mounting (both have easy conduit mounting positions with drill points)
    • Hi-Fidelity 8 Ohm version
    • Revolutionary two-piece design allows for two-phase installation
    • Rugged construction can support up to 250 lbs.
    • Shallow base has drill points for 4" square, 2-gang EO box, or 1-gang box on its bottom for mounting to a deck or patio

    SPECIFICATIONS
    Depth 17 5/8" (44.7675 cm)
    Sensitivity 83.5dB 1W/1M (Half Space Ref)
    Diameter 15 1/8" (38.4175 cm)
    Shipping Weight 15.90 lbs (7.21 kgs)
    Frequency Response 43Hz to 20kHz (±7dB)
    Power Taps 8 ohms
    Speaker Type Inground
    Dispersion 360°H x 50°V

    SUPPORT FILES
    GSS-G & GST-G Garden Speaker Datasheet (2 pages) GSS-G & GST-G Garden Speaker Datasheet (2 pages)
