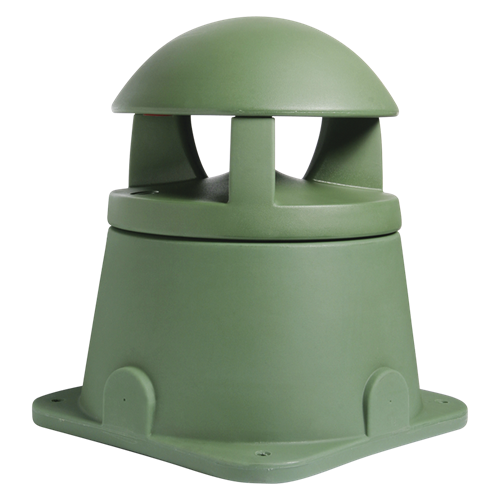

Garden Speaker (Tall Base) 8 Ohm

ATS183GL8
    DESCRIPTION

    ***Model has been replaced by the GST-G***

    The AtlasIED ATS183GL8 garden speaker, designed for theme parks, hotels, or any architecturally landscaped area, simplify installation and deliver deep, rich sound. The speaker is a coaxial 8", polypropylene/kevlar cone with rubber surround, 1.5" voice coil, 21 oz. magnet and a 1/2" mylar dome tweeter.
    The AtlasIED garden speakers are designed to blend into any environment. They are available with two different base models. Model includes a deep base for in-landscape burial. The two-piece design allows for a two-phase installation. In phase one, the base is installed. Phase two, after initial construction is done, the system contractor can return to install the speaker/transformer. This multiple step process protects the speakers from being damaged during the construction/landscaping process and also eliminates the potential for theft from the construction site. The ATS183GL8 Garden Speaker base even has a protective cover to keep debris out during construction. Inside the enclosure is a durable 8" coaxial speaker with a great sounding 360-degree horizontal dispersion pattern. The enclosure is made of stable polyethylene, which ensures performance in even the most temperamental and unpredictable climates.


    Features
    • Available in a Green Finish
    • Deep Base for Landscape Installations
    • Hi-Fidelity 8 Ohm 100W
    • Revolutionary two-piece design allows for two-phase installation
    • Rugged construction can support up to 250 lbs.

    SPECIFICATIONS
    Depth 20 7/8" (53.0225 cm)
    Sensitivity 83.5dB 1W/1M (Half Space Ref)
    Diameter 17 3/8" (44.1325 cm)
    Shipping Weight 19.00 lbs (8.62 kgs)
    Frequency Response 43Hz to 20kHz (±7dB)
    Power Taps 8 ohms
    Speaker Type Inground
    Dispersion 360°H x 50°V

    SUPPORT FILES
    GSS-G & GST-G Garden Speaker Datasheet (2 pages) GSS-G & GST-G Garden Speaker Datasheet (2 pages)
