Sound Masking Processor / Loudspeaker Controller with Scheduler Card

ASP-MG24TDB
  • Windows Compatible
  • Onboard DSP
  • Soundmasking
  • Time Scheduler

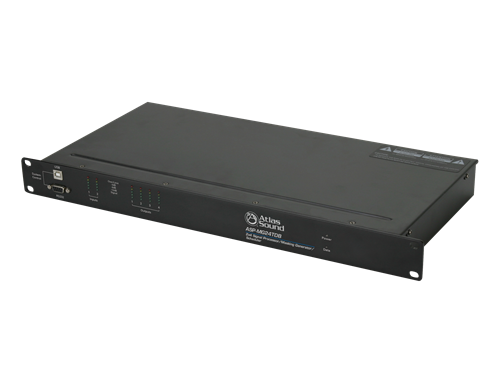

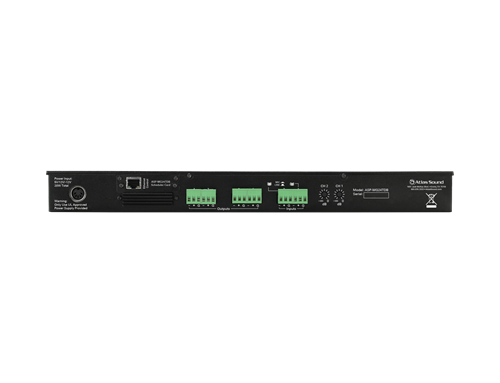

    The ASP-MG24TDB advances sound masking control including time based level control to a whole new level while providing the secondary benefit of loudspeaker processing for the most popular AtlasIED loudspeaker systems.

    The ASP-MG24 is 1RU, 2 input with 4 masking generators x 4 output DSP configurable by a very intuitive set-up GUI. Four inputs are tied to independent white/pink noise generators with adjustable ramp-up to allow gradual acclimation to masking levels. Two additional inputs are available for mic or line sources to allow paging and/or music sources to be blended with the masking sources to any of the 4 outputs.

    Dedicated 1/3 octave filter sets are available for each of the 4 generator outputs, 8 band parametric EQ blocks along with dynamic control is available for each of the two mic/line inputs. Any mix of all 6 inputs may be easily matrixed to the 4 output DSP blocks for additional parametric equalization, delay, and limiting (if required).

    Factoring in all features, a very complex 4 zone sound masking system can be easily configured with 2 external music or page sources. The MGTDB internal module allows timing and level control of all 4 Masking inputs for daytime holiday and weekend scheduling.

    For loudspeaker control functionality, the ASP-MG24TDB may be configured in 2 input x 4 output mode for stereo full range. Other configurations include full range plus sub operation with AtlasIED FAP ceiling loudspeakers, SM series surface mount loudspeakers, or AH series stadium horns for complete control of crossover types, equalization, delay, and dynamic control.

    Computer interface is simplified by USB, RS-232 and Ethernet connection (no hard to use USB to Serial adapter required!). External UL listed international voltage power supply is included.

    FEATURES
    Easy Downloads from the Atlas Sound MEQ Masking Program Make System Tuning a Breeze
    The ASP-MG24 DSP Architecture is Equally Suited for Complex Masking Systems and for Control of Atlas Sound Full Range Speakers and/or Subwoofers
    The ASP-MG24TDB Provides Accurate Detailed Control Over Masking Levels for All 4 Masking Generators Based on an Easy to Use Scheduler
    The Intuitive ASP-MG24 Set-Up GUI is Designed to Simplify Even Complex Setups that Utilize Multiple Sources Plus Masking in the Same Zone
    SPECIFICATIONS
    Frequency Response 20Hz - 20KHz
    Connector Type Phoenix
    Output Power +22dBm Balanced, +18dBm Unbalanced
    Rack Units 1
    Width 19" (48.26 cm)
    Shipping Weight 13.20 lbs (5.99 kgs)
    SUPPORT FILES
    Data Sheet

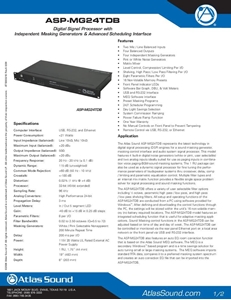

    ASP-MG24TDB Data Sheet (2 pages)
    Owners Manual

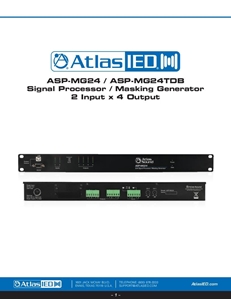

    ASP-MG24 Owners Manual (28 pages)
    Data Sheet
    ATS002836 ASP-MG24 Data Sheet (2 pages)
    Installation Sheet

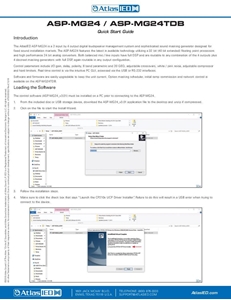

    ASP-MG24 Quick Start Guide (8 pages)
    Installation Sheet

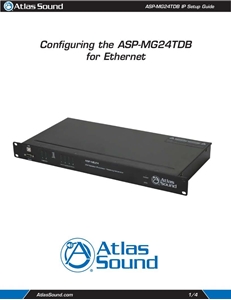

    ASP-MG24TDB IP Setup Guide (3 pages)
    Software/Firmware
    ASP-MG24_v0301
    Software/Firmware
    ASP_Firmware_v0302
    Installation Sheet

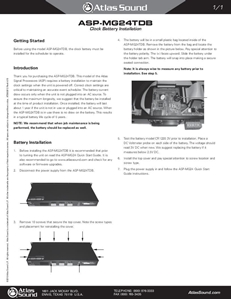

    ASP-MG24TDB Battery Replacement Instructions (1 page)
    Installation Sheet

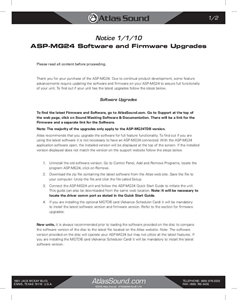

    ASP-MG24 Software and Firmware Upgrades (2 pages)
    Owners Manual

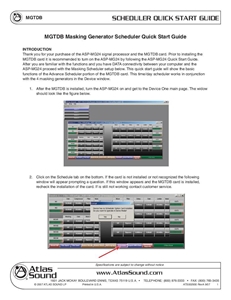

    MGTDB_Scheduler_Quick_Start_Guide (4 pages)
