Flanged Emergency Horn Speaker with 15-Watt 25V/70V Transformer

Availability: Call for Availability
Your Price:
  • UL Listed
  • IP55
  • CSFM Listed
  • 70V100VCAPABLE

    APF-15TU voice control speaker is equipped with a compression driver to provide up to 15 watts of continuous power handling, superior intelligibility and audio conversion efficiency for maximum sound projection and penetration. APF Series speakers may be flush mounted or recessed directly into interior/exterior walls or ceilings. Recessed installation may be accomplished by mounting speakers into a 5 1/2" deep opening or recessed enclosure. Units will facilitate AtlasIED L20 Serie grilles, enclosures and mounting rings (refer to SL2-1372). Accessory mounting kits Model MK-2 or FAMT-6 can be used to mount speakers into 8" diameter baffles.

    Models include a built-in 25/70.7V Vari-Tap transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Magnet assembly is equipped with self-aligning field replaceable diaphragm. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit.

    A built-in, 5 mfd capacitor is provided on Model APF-15TUC for line supervision. Model APF-15TU is not equipped with a capacitor. All units are finished in grey baked epoxy.

    All models meet or exceed UL Standard 1480 for Fire Protective Speakers and are capable of operating within an ambient temp. range of 66°C (150°F) to -35°C (-30°F).The all-metal, environmentresistant construction and re-entrant acoustic path assure protection against water, humidity, vermin, physical abuse and corrosion. Models are also California State Fire Marshal Listed.

    • Choose from Matching Grilles, Enclosures and Mounting. Rings (Order Separately)
    • Double Re-Entrant Design Provides Superior Audibility of Voice and Tone Signaling
    • High-Efficiency, 15 Watt Compression Driver with Proven Record of Outstanding Service Reliability
    • May be Flange or Recess Mounted
    • Transformer(T) Equipped Version for 25, 70.7, or 100V Line
    • Vandal Resistant Metal Construction for Indoor/Outdoor Use
    • UL Certified, Safety Listed to UL1480

    Frequency Response 600Hz - 14kHz
    Sensitivity 104dB
    Safety Listed UL 1480
    Dispersion 95°
    Operating Temperature Range -40 to 70C
    Depth 5 3/16" (13.18 cm)
    Diameter 5 5/8" (14.29 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    Operating Temperature Range 70°C (158°F) to -40°C (-40°F)
    Warranty Period 60 months from date of purchase

    APF-15TU CAD Drawing APF-15TU CAD Drawing

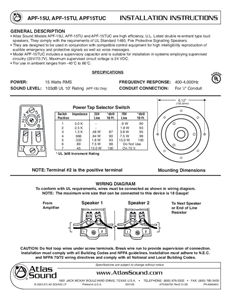

    APF-15 Installation Instructions (1 page) APF-15 Installation Instructions (1 page)

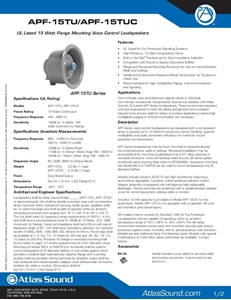

    APF-15TU Series Datasheet (2 pages) APF-15TU Series Datasheet (2 pages)
