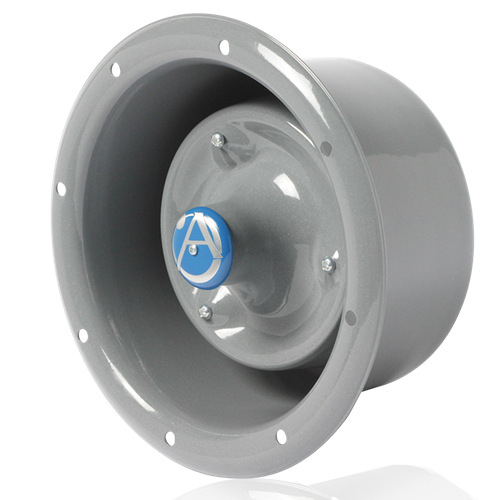

Flanged Horn Speaker with 15-Watt 25V/70V/100V Transformer

APF-15T
Availability: Call Us for Product Availability
MSRP (USD): $160.99
  • IP33
  • 25V/70V Operation
  • 70V100VCAPABLE
    DESCRIPTION

    Provide 15 watts of continuous power handling with superior intelligibility and efficiency with AtlasIED APF Series Omni-Purpose® speakers. Vandal-resistant units are designed for flange or recessed mounting to panels, interior/exterior walls, or ceilings.

    Metal construction withstands adverse temperatures, humidity and physical abuse. For flexibility and optimum adjustment convenience, transformer-equipped Model APF-15T includes the Vari-Tap® Control/connect center with 7 position, wattage/impedance selection switch.

    Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter speakers. Model FAMT-6 mounting kit is required for 8" models.) Recessed installation may be accomplished by mounting Models APF-15 or APF-15T into a 4" or 5-1/2" deep opening, respectively, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles. Speakers are finished in grey baked epoxy.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.



    Vandal resistant conduit/cable adapter plate also available.




    FEATURES
    • Choose from Matching Grilles, Enclosures and Mounting. Rings (Order Separately)
    • Double Re-Entrant Design Provides Superior Audibility of Voice and Tone Signaling
    • High-Efficiency, 15 Watt Compression Driver with Proven Record of Outstanding Service Reliability
    • May be Flange or Recess Mounted
    • Transformer(T) Equipped Version for 25, 70.7, or 100V Line
    • Vandal Resistant Metal Construction for Indoor Use

    SPECIFICATIONS
    Frequency Response 600Hz - 14kHz
    Sensitivity 104dB
    Power Taps 1, 2, 3.8, 7.5, 15W @ 70.7V
    Dispersion 95°
    Power Rating 15 Watts
    Operating Temperature Range -40 to 70C
    Depth 5 3/16" (13.18 cm)
    Diameter 5 5/8" (14.29 cm)
    Shipping Weight 4.00 lbs (1.81 kgs)
    Operating Temperature Range -40C to 70C
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

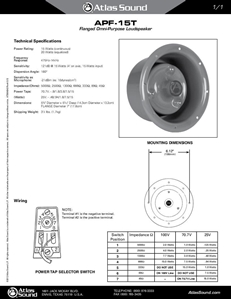

    APF-15T Install Sheet (1 page)
