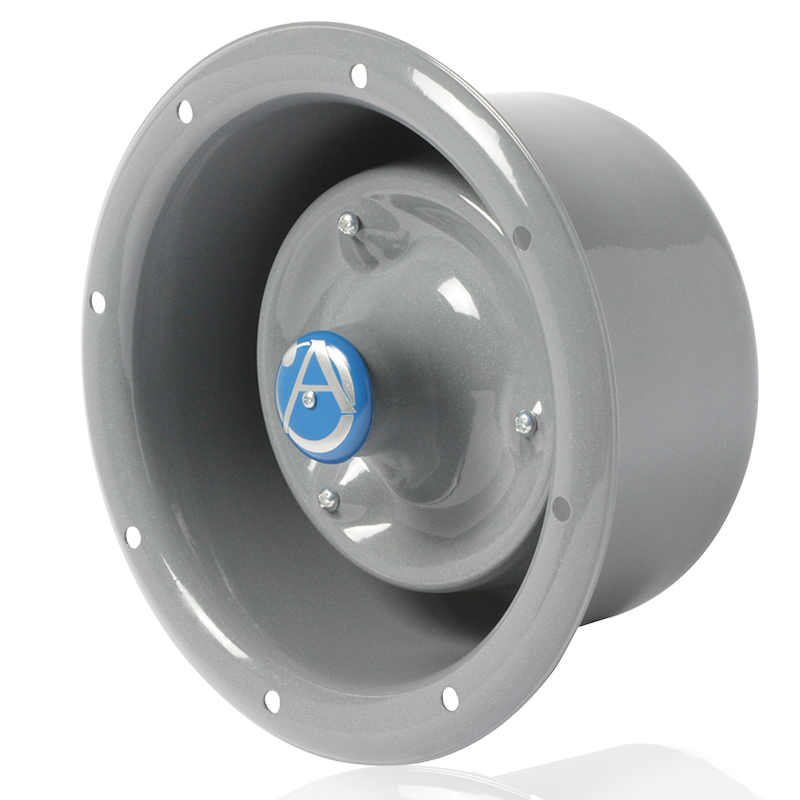

Flanged Horn Speaker 15W 8Ω - Call for Availability

APF-15
Your price (USD): $110.99
  • IP33
  • 4OHM8OHMCAPABLE
    DESCRIPTION

    Provide 15 watts of continuous power handling with superior intelligibility and efficiency with the AtlasIED APF-15 Omni-Purpose® speakers. Model APF-15T includes the Vari-Tap® Control/connect center with 7 position, wattage/impedance selection switch. Magnet assembly is equipped with self-aligning field replaceable diaphragm.

    Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter speakers. Recessed installation may be accomplished by mounting Model APF-15T into a 4" or 5.5" deep opening, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles. Speaker is finished in grey baked epoxy.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage. Vandal resistant conduit/cable adapter plate also available.




    FEATURES
    • 8-ohm Model
    • Choose from Matching Grilles, Enclosures and Mounting. Rings (Order Separately)
    • Double Re-Entrant Design Provides Superior Audibility of Voice and Tone Signaling
    • High-Efficiency, 15 Watt Compression Driver with Proven Record of Outstanding Service Reliability
    • May be Flange or Recess Mounted
    • Vandal Resistant Metal Construction for Indoor Use

    SPECIFICATIONS
    Frequency Response 600Hz - 14kHz
    Sensitivity 104dB
    Dispersion 95°
    Power Rating 15 Watts
    Operating Temperature Range -40 to 70C
    Depth 3 7/16" (8.73 cm)
    Diameter 5 5/8" (14.29 cm)
    Shipping Weight 3.00 lbs (1.36 kgs)

    SUPPORT FILES
    EASE File
    APF-15 EASE Data
    Data Sheet
    ATS003855_APF-15_Series_Datasheet
    EASE File
    APF-15 EASE DATA
