15A Power Conditioner and Distribution Unit

  • UL Listed
  • ETL
  • CETL

    The AP-S15L features noise filtering for eliminating unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15L's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds, thus ensuring virtually trouble free protection. The AP-S15L has incorporated a front panel pull-out dimmable LED tube light to light a rack,. The rear of the rack can be illuminated using the optional 16" gooseneck LED lamp connected via an XLR style socket.

    • 9 Total Outlets

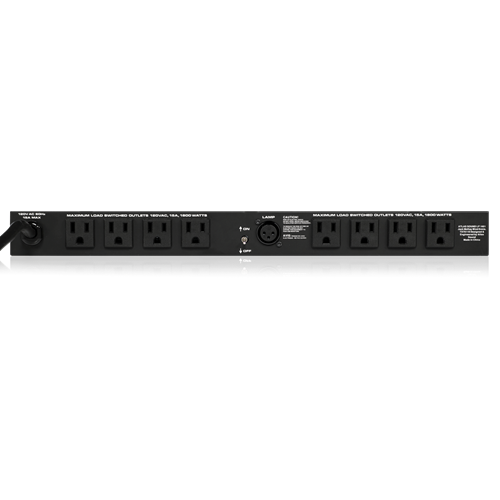

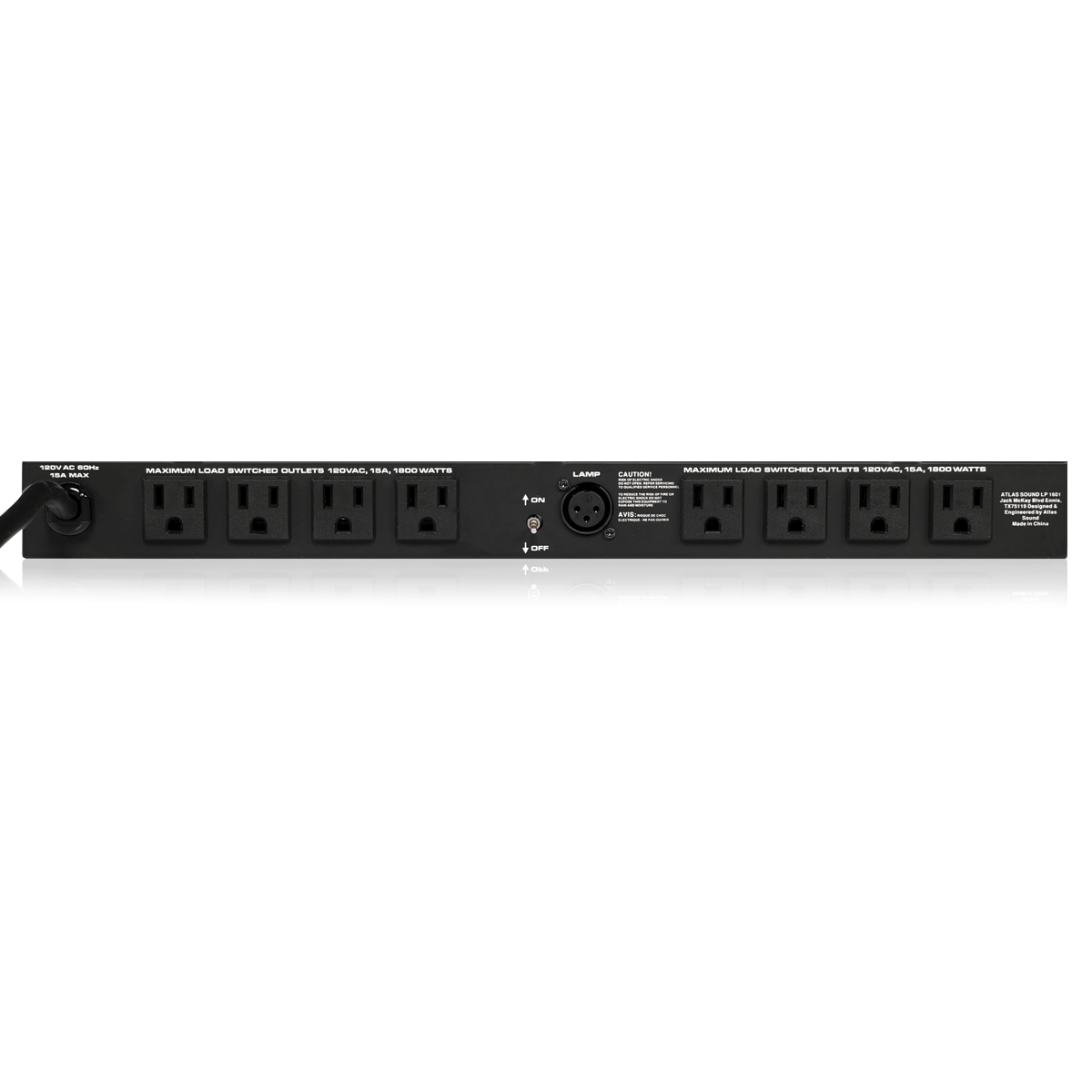

    • 8 Rear Panel Switched Outlets

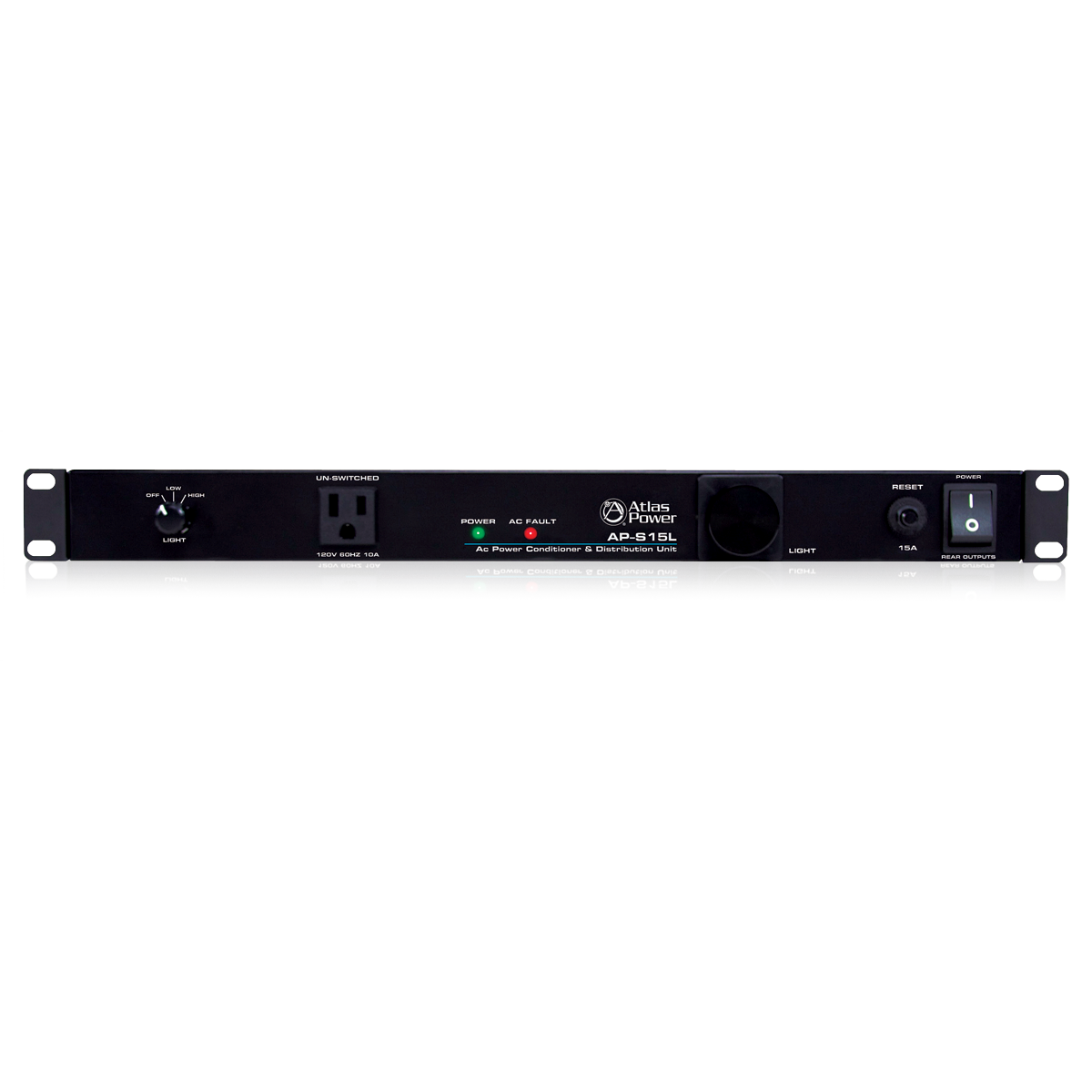

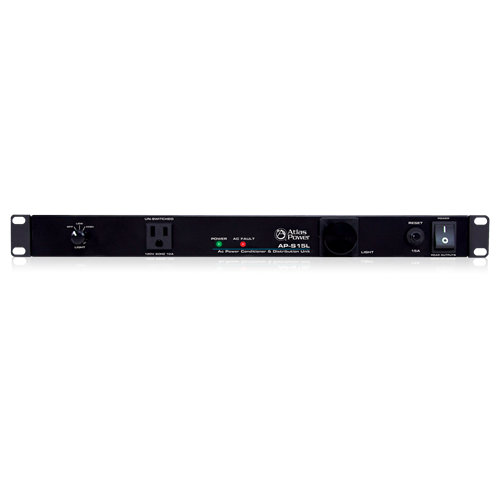

    • 1 Front Panel Unswitched Outlet
    • Radio Frequency and Electromagnetic Interference Filtering
    • Circuit Breaker Protection @ 15A
    • Spike Suppression Up to 6000V
    • AC Fault Indicator

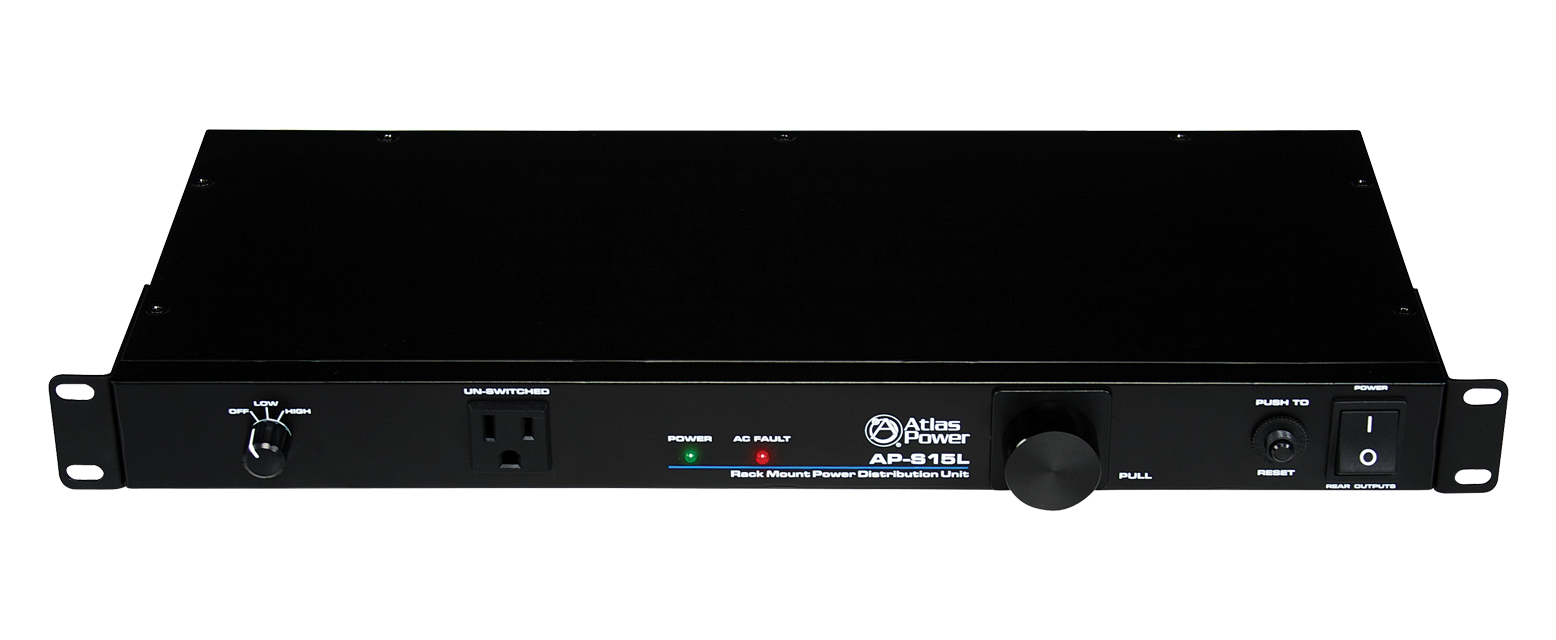

    • Front Mounted Pull-Out LED Light with 2-Position Dimmer
    • Rear Mounted XLR Connector for 12VDC LED Lamp (AP-GNL18)

    Current Rating 15 Amps
    Certified to Safety Listing MET (UL 1449)
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Power Consumption 8 Watts
    AC Mains Power Cord 9' (3m)
    Height 1.75" (44.5mm)
    Width 19" (482.6mm)
    Depth 5" (127mm)
    Weight 5.5 lbs. (2.49 kg)
    Warranty Period 12 months from date of purchase

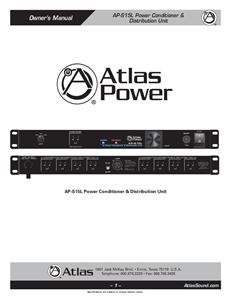

    AP-S15L Owners Manual (8 pages) AP-S15L Owners Manual (8 pages)

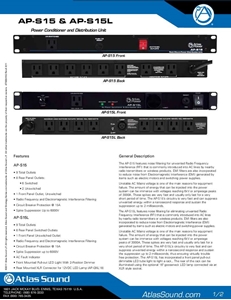

    AP-S15 & AP-S15L Datasheet (2 pages) AP-S15 & AP-S15L Datasheet (2 pages)
