19" IP addressable Power Distribution Unit

Availability: In stock
Your Price:
  • UL Listed
  • Web Browser Control

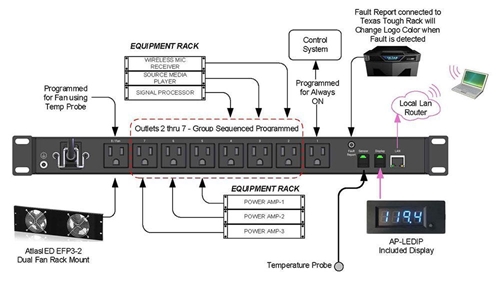

    The AP-S15IP is a power conditioner with LAN monitoring & remote control for AC power distribution management. The AP-S15IP features a web based user interface (UI) that can monitor voltage, current, temperature and humidity. Through the UI, alarms can be set to alert users when a fault condition has occurred via the network UI or Fault contacts. The AP-S15IP’s eight rear outlets are programmable and can be scheduled to sequence On / Off individually or in groups on a 24-hour / 7-day schedule. Each AC outlet has a front panel LED status indicator can also be used to manually turn the outlet On or Off. This feature can be disabled via the UI for increased security. A front panel unswitched AC outlet is also included.

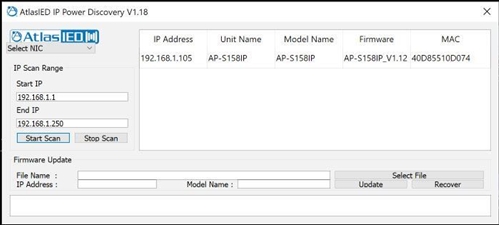

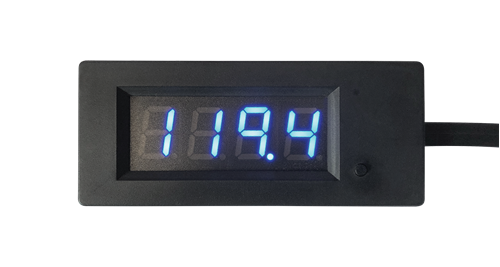

    The AP-S15IP utilizes PC based IP discovery software to automatically identify units connected to the network. An LED display, AtlasIED model AP-LEDIP, is included to provide a visual reference of the voltage, current, temperature or humidly data within the rack in real time. The AP-LEDIP can also be used to read the IP address of the unit eliminating the need to use the discovery software. The external temperature/humidity probe can be used to monitor rack climate conditions to activate a cooling system if needed. Programable alarm settings are easily configured with fault logs and fault reporting via the UI. The unit or individual outlets can be tested or monitored for on active status via the network Auto Ping Reset feature.

    The AP-S15IP features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products that commonly deteriorate video signals and that can be heard as static in audio signals. The AP-S15IP is designed to allow the installer to select the power cord length that is required for the installation. A removable 2m IEC power cord with a retainer bracket is supplied with the unit.

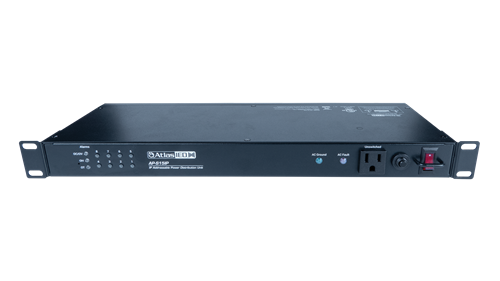

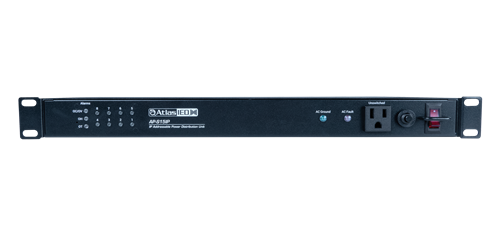

    The AP-S15IP is designed to be rack mounted into full width racks using 19" (1RU) space.

    • 15A Rack Mount Power Strip with web enabled monitoring & control
    • Supports LAN (Local Area Network) type networks
    • On-board IP Address display
    • IP discovery PC software

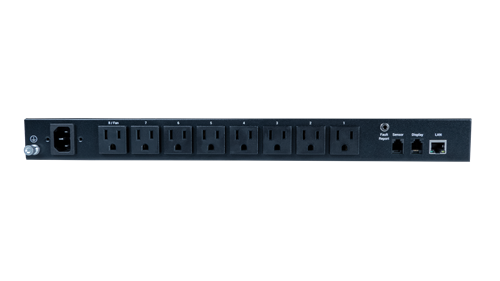

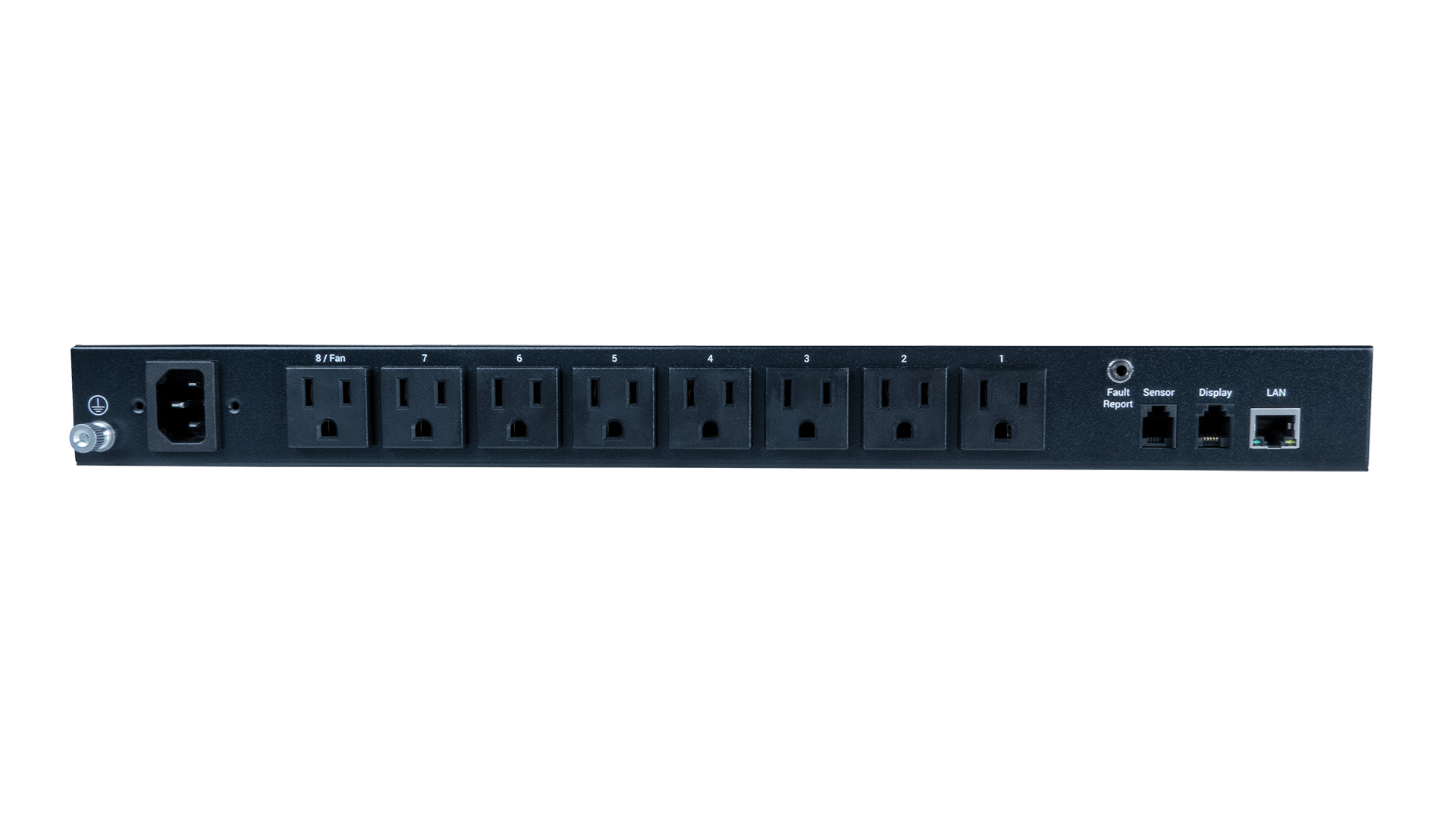

    • 9 total AC Outlets: 8 rear panel programmable switched outlets, 1 front panel unswitched convenience outlet
    • Individual outlet on/off manual switch and LED indicator (enable/disable)
    • Removable 15A IEC power cord with retainer bracket
    • RFI noise filtering
    • Earth ground fault connection indicator
    • Web user interface
    • DHCP or static IP addressable
    • Voltage, current, temperature and humidity monitoring capability
    • Over-voltage, current, temperature and humidity alarm settings
    • Each outlet can be individually managed remotely
    • User-definable names for each outlet
    • User-definable delay time and sequence
    • Temperature setting for AC fan activation
    • Fault log with reporting
    • Fault reporting GPIO port
    • Password protection
    • APRST (Auto PING Reset)
    • User-definable 24/7 schedules of individual outlets to switch devices on or off
    • 2-Meter humidity/temperature probe
    • AP-LEDIP display panel shows voltage, current, temperature, humidity and IP Address

    Power Rating 15A IT/Audio Applications, 12A continuous
    Ethernet Connector 10/100Mbps
    Operating Voltage 100VAC-132VAC
    Circuit Breaker Protection 15A
    Power Consumption 8-Watts
    Minimum Spike Clamping Voltage 460VRMS @ 3,000A
    Maximum Spike Clamping Voltage 6,000V, 1 nanosecond
    Spike Clamping Voltage @ 100A 1,250Vp for 20μs
    Maximum Surge Current 6,500A
    Operating Temperature Range 40º - 105ºF (5º - 40.5ºC)
    Height 1.75" (44.5mm) 1RU
    Width 19" (482.6mm)
    Depth 7.3" (187mm)
    Weight 5.5 lbs. (2.5kg)
    Shipping Weight 7.72 lbs. (3.5kg)
    Safety Listed UL 90950-1
    Country of Origin Taiwan
    Warranty Period 12 months from date of purchase

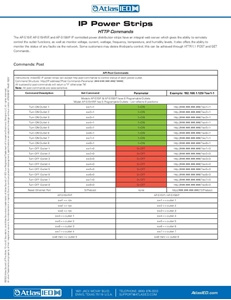

    IP Power Strip Command Doc (6 pages) IP Power Strip Command Doc (6 pages)

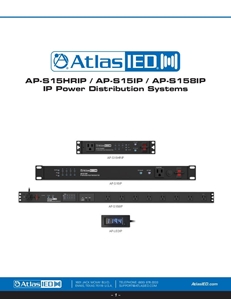

    IP Power Strip Owner's Manual (40 pages) IP Power Strip Owner's Manual (40 pages)
    AtlasIED IP Power Discovery Setup v1.19 AtlasIED IP Power Discovery Setup v1.19

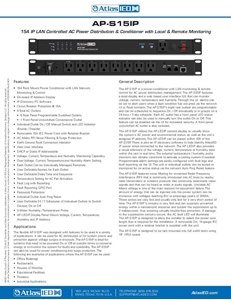

    AP-S15IP Data Sheet (10 pages) AP-S15IP Data Sheet (10 pages)
