20A - 72 inch, 30 Outlet Vertical Power Strip


    The Atlas Power Vertical Power Strips offer complete power management, multiple outlet spacing and outlet orientations, and RFI filtering along with spike/surge protection to make them the most compact, effective power management protection systems on the market today. The AP-7230-20S is 72" rack mountable and features 20A, 2500W power capability.

    30 Available 20A Outlets
    Slimline Designs, 1.62"W x 1.25"D
    Two AC Outlet Orientations: "In Line" and "90 Degree to Chassis"
    Lighted Main Power Switch
    Circuit Breaker Protection
    Three-Way Surge Suppression MOV Protection: H-N, H-G, N-G
    RFI Filtering
    AC Protect Indicator
    UL, cUL Listed

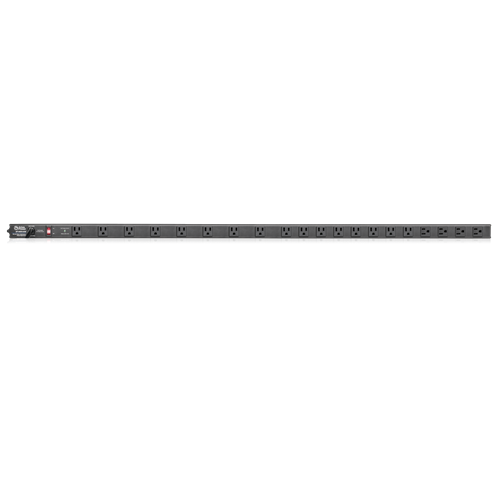

    Also Available in 48", 20 Outlet (AP-4820-20S) and 24", 10 Outlet (AP-2410-20S) Models
    Tech Specs
    Outlets NEMA 5-20R, Qty. 30
    Power Cord 9' (2.74m), 12-gauge, AC Plug NEMA 5-20P
    Load Rating 2500W
    MAX Current Protection 20A AC Mains Breaker
    Voltage Protection Rating L-N: 500V, L-G: 500V, N-G: 500V / 3kA, 8/20µs
    Energy Rating 450 Joules, 8/20µs
    Power Consumption .5W
    Height 1.25" (31.75mm)
    Length 72" (1828.8mm)
    Width 1.62" (41.10mm)
    Weight 5.1 lbs (2.32kg)
