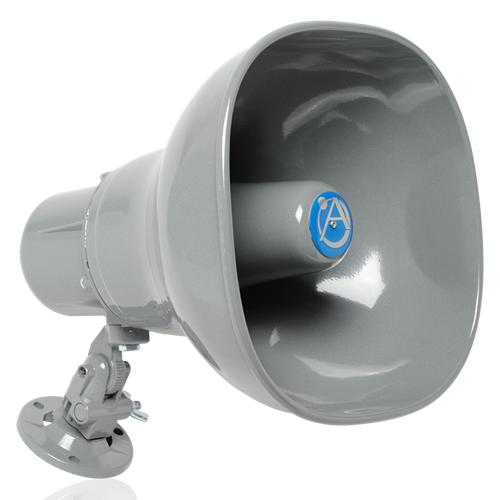

Emergency Horn Loudspeaker with 15-Watt 25V/70V Transformer Meets Buy America Requirements

AP-15TU-USA
  • UL Listed
  • IP45
  • 70V100VCAPABLE
  • TAA
  • BAA

    The AtlasIED AP-15TU-USA loudspeaker is equipped with a compression driver providing up to 15 Watts RMS power handling capability, superior intelligibility and dispersion to achieve maximum sound projection and penetration. Weather-resistant metal construction and re-entrant acoustic path assure protection against water, humidity, vermin, and corrosion. The Omni-Purpose® mounting bracket allows directional sound dispersion via vertical and horizontal positioning. Provisions are also included for surface or strap mounting to pillars and I-beams.

    The AP-15TU-USA includes a built-in 25/70.7V Vari-Tap® transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit.

    This unit meets or exceeds the UL Listed standards for audible signal appliances and is capable of operating within an ambient temp. range of 70˚C (158˚F) to -40˚C (-40˚F). Additionally the AP-15TU-USA complies with UL Standard 1480 - Loudspeakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19). The AP-15TU-USA also meets Buy American Act Standards.

    Features
    High-Efficiency, 15 Watt Compression Driver
    Built In Vari-Tap® Transformer for Easy Impedance Selection
    Optional 5 MFD Capacitor for Line Supervision
    Omni-Purpose Surface Mounting Bracket For Precise Positioning
    Vandal and Environment-Resistant Metal Construction for Outdoor or Indoor Use
    Recommended for High Intelligibility Paging, Intercommunication, and Signaling
    Tech Specs
    Frequency Response 400Hz-4kHz
    Sensitivity 102dB at 15 Watts, 10ft
    Dispersion 70˚ (-6dB, 2000Hz Octave Band)
    Power Rating 15 Watts Continuous
    Height 8 3/4" (222.25mm)
    Width 7 7/8" (200.03mm)
    Depth 9 5/16" (236.54mm)
    Weight 4.0 lbs (1.8kgs)
    Temperature Range -40˚C - 60˚C
    Finish Grey Baked Epoxy
