Emergency Horn Loudspeaker with 15-Watt 25V/70V Transformer

AP-15TU
  • UL Listed
  • CSFM Listed
  • 70V100VCAPABLE
  • IP55

    AtlasIED AP-15TU loudspeakers are equipped with a compression driver providing up to 15 watts RMS power handling capability, superior intelligibility and dispersion to achieve maximum sound projection and penetration.

    Weather-resistant metal construction and re-entrant acoustic path assure protection against water, humidity, vermin and corrosion. The Omni-Purpose® mounting bracket allows directional sound dispersion via vertical and horizontal positioning. Provisions are also included for surface or strap mounting to pillars and I-beams.

    All models include a built-in 25/70.7V Vari-Tap® transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit. Model AP-15TU is not equipped with a capacitor.

    Model meets or exceeds the UL Listed standards for audible signal appliances and are capable of operating within an ambient temp. range of 66°C (150°F) to -35°C (-30°F). Model complies with UL Standard 1480—Loudspeakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19).

    FEATURES
    15-Watt High Efficiency Compression Driver
    Built-In Vari-Tap® Transformer for Easy Impedance Selection
    Omni-Purpose Surface Mounting Bracket For Precise Positioning
    Optional 5 MFD Capacitor for Line Supervision
    Recommended for High Intelligibility Paging, Intercommunication, and Signaling
    Vandal-Resistant, Weatherproof Construction
    UL Certified, Safety Listed to UL1480
    SPECIFICATIONS
    Frequency Response 400Hz - 14kHz
    Sensitivity 106dB
    Dispersion 70°
    Power Rating 15 Watts
    Safety Listed 1480
    Operating Temperature Range -40 to 70C
    Height 8 3/4" (22.23 cm)
    Width 7 7/8" (20.00 cm)
    Depth 9 5/16" (23.66 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    SUPPORT FILES
    Data Sheet

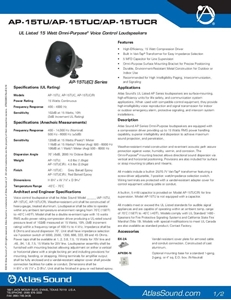

    ATS003853_AP-15TU(C)_Series_Datasheet (2 pages)
    Installation Sheet

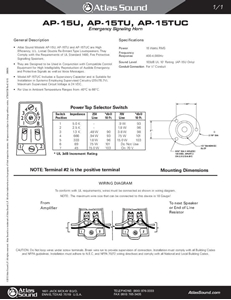

    ATS000739E_AP-15U,_AP-15TU,_AP-15TUC_Install_Sheet (1 page)
    Revit Drawing
    AP-15T Revit Drawing
