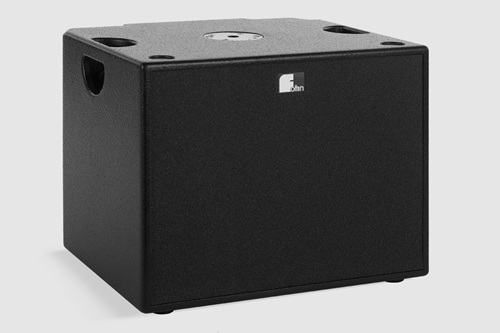

Single 12" Powered Subwoofer with 1500-Watt Integrated Amplifier

ALS-XS22
    DESCRIPTION

    The ALS-XS22 12” active subwoofer augments Fohhn’s X-Series / Xperience-Series product lines.

    Specially designed to offer more power, greater sound pressure levels and better low frequency response, it is equipped with a considerably more powerful 1500W/ 2x 750W Class D amplifier. This drives a 500W state-of-the-art, high performance, 12” long excursion speaker. The subwoofer is notable for its powerful reproduction of bass frequencies and for its extremely even, controlled sound over the entire frequency range (38Hz – 130Hz). With the new developed "Non-turbulent symmetric port design" (NTSP), aerodynamic noises and port compression are reduced considerably. With a max SPL of 127dB, the ALS-XS22’s performance surpasses that of many currently available 12” models.

    As with other X-Series subwoofers, it can be used in combination with practically any mid/high speakers. It can also be connected to conventional 2-way systems with 6,5“/1“ CD, 8“/1“ CD, 10“/1“ CD or 12“/1“ CD specifications (Xperience Series), as well as to Linea LX-Series line arrays. A passive subwoofer with integrated crossovers such as the XSP-22 can also be connected.

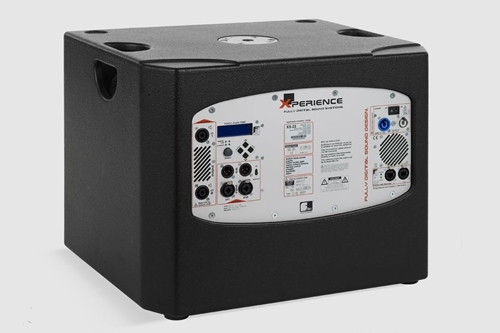

    The ALS-XS22 is equipped with integrated Fohhn Double Precision DSPs that are designed to guarantee optimal adjustment capability between tops and subs. This can be carried out quickly and easily at the touch of a button, or via Fohhn’s intuitive control software. A weight of just approx. 25 kg makes the ALS-XS22 highly practical for transportation.


    FEATURES
    • Single 12" Subwoofer
    • Integrated 1500-Watt Class D Amplifier
    • Non-turbulent Symmetric Port design" (NTSP) Reduces Aerodynamic Noises and Port Compression
    • Integrated Fohhn Double Precision DSPs

    SPECIFICATIONS
    Subwoofer 12" Long Excursion
    Amplifier Power 1500-Watts
    MAX SPL 127dB
    Frequency Response 38Hz - 130Hz
    Height 16.54" (420mm)
    Width 20.47" (520mm)
    Depth 16.93" (430mm)
    Weight Approx~55 lbs. (25kg)
    Finish Textured Black Paint
