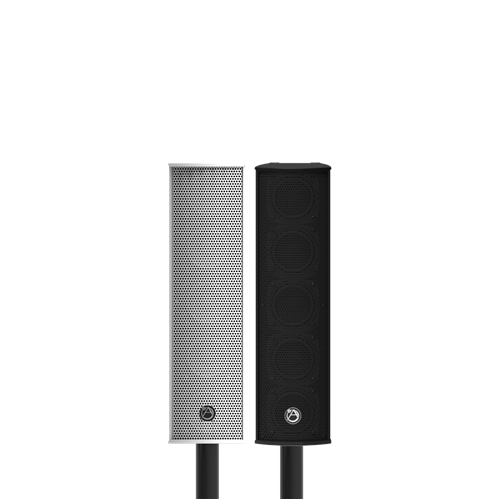

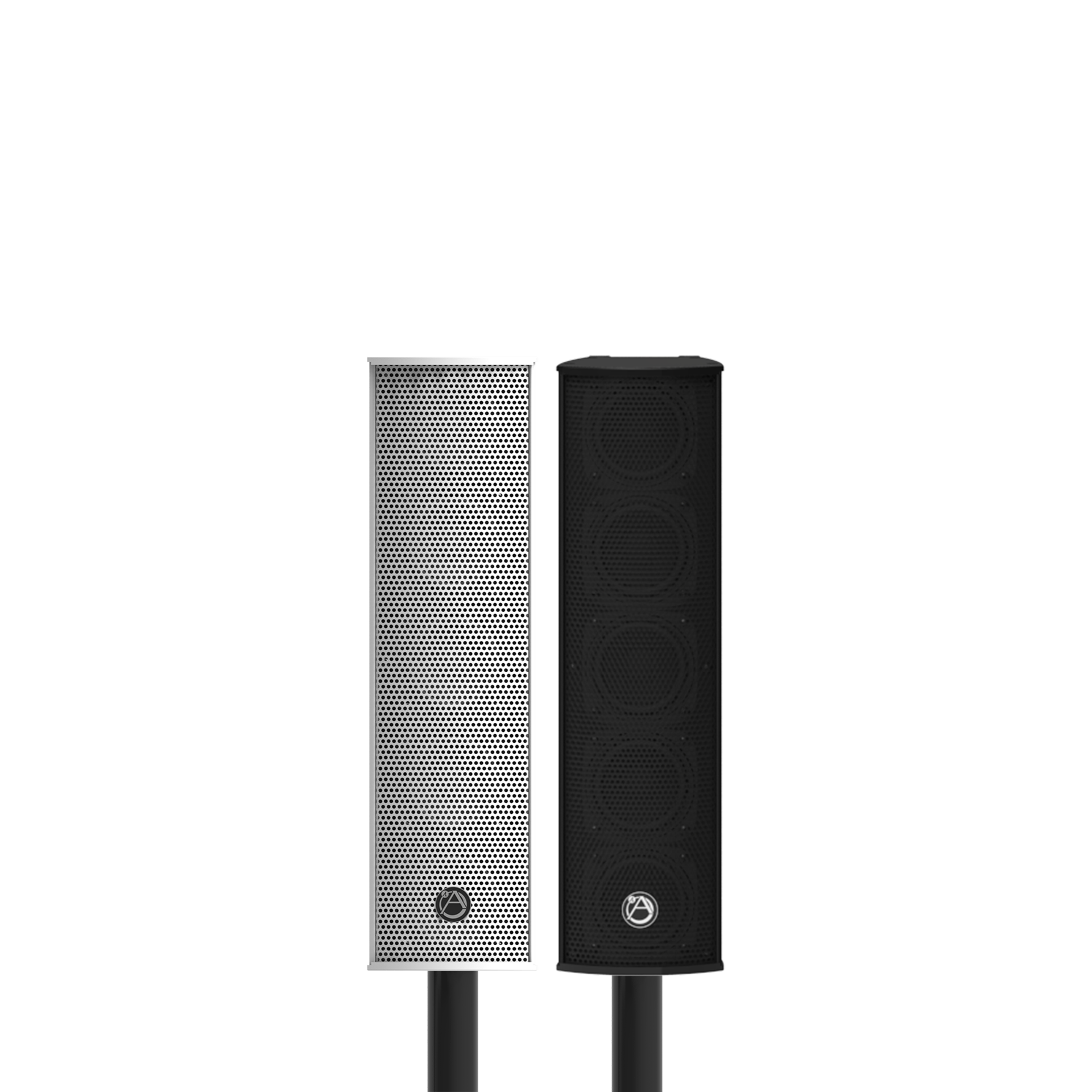

EN54-24 Certified 5 Speaker Full Range Line Array Speaker System in Black or White Finish

Picture of EN54-24 Certified 5 Speaker Full Range Line Array Speaker System (black finish)

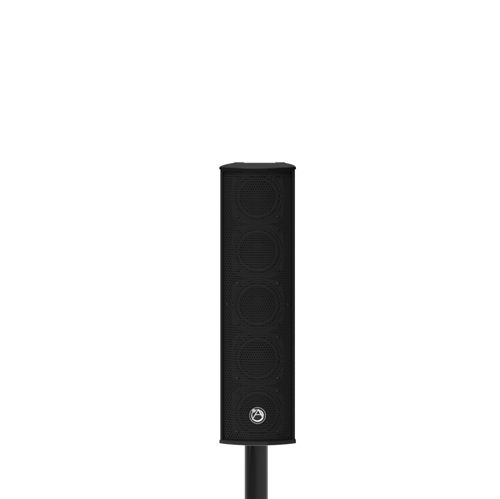

EN54-24 Certified 5 Speaker Full Range Line Array Speaker System (black finish)
SKU: ALA5TAW-B
Availability: In stock
Your Price:
$561.99
Picture of EN54-24 Certified 5 Speaker Full Range Line Array Speaker System (white finish)

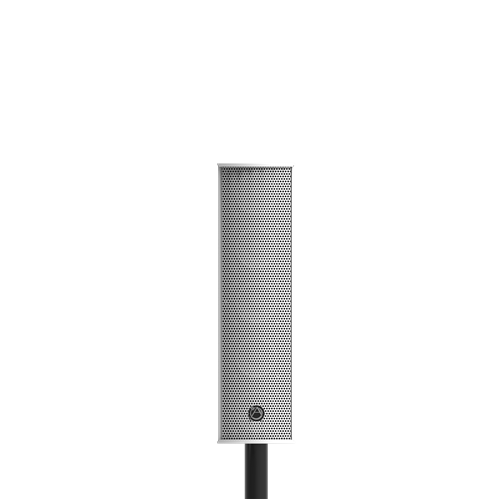

EN54-24 Certified 5 Speaker Full Range Line Array Speaker System (white finish)
SKU: ALA5TAW
Your Price:
$561.99
  • EN54-24 Certified
  • IP33
  • Non-Powered
  • 6-Ohm Capable
  • 70V100VCAPABLE
    DESCRIPTION

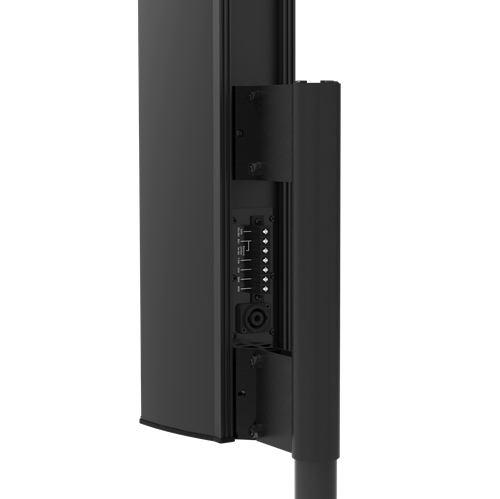

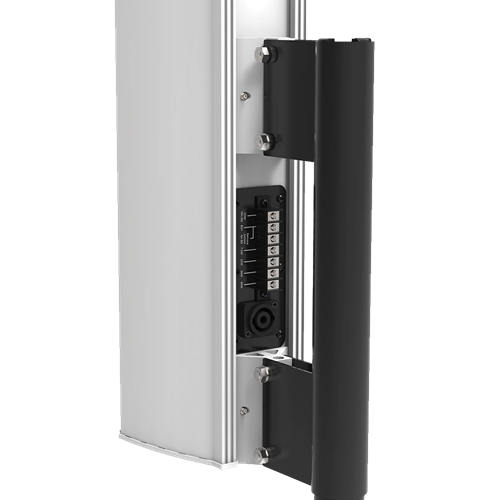

    The EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW’s transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.

    Note: Pole and pole mount bracket sold separately.





    Features
    • 45° Vertical Coverage
    • 135° Horizontal Coverage
    • Two (2) High Frequency Tweeters
    • Five (5) Proprietary 3" (76mm) Full Range Drivers

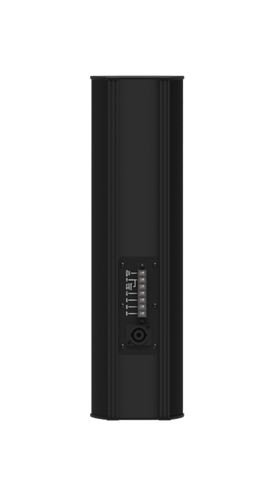

    • Barrier Strip and NL-4 Terminals
    • Lightweight Aluminum Housing
    • Wall Mount Bracket Included

    SPECIFICATIONS
    6Ω RMS Power 375 Watts
    70.7V Power Taps 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
    100V Power Taps 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
    Dispersion 135° H x 45° V
    Sensitivity 92dB (1W/1m)
    Sensitivity (EN54-24) 78dB (1W/4m)
    Frequency Response 137Hz - 20kHz (+/-5dB)
    Height 16.61" (422mm)
    Depth 5.43" (137.9mm)
    Width 4.61" (117mm)

    SUPPORT FILES

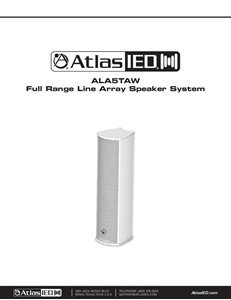

    ALA5TAW Installation Sheet (12 pages) ALA5TAW Installation Sheet (12 pages)
    Declaration of Performance (DoP) _3004-EN54-24 UK & CE for ALAxxTAW (4 pages) Declaration of Performance (DoP) _3004-EN54-24 UK & CE for ALAxxTAW (4 pages)
    ALA5TAW CAD Drawing ALA5TAW CAD Drawing
    ALA5TAW CAD Drawing (pdf) ALA5TAW CAD Drawing (pdf)
    ALA5T EASE DATA ALA5T EASE DATA

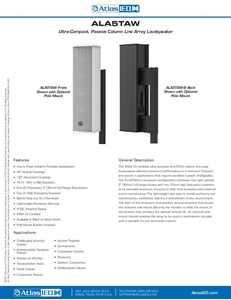

    ALA5TAW Data Sheet (8 pages) ALA5TAW Data Sheet (8 pages)

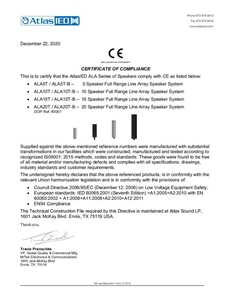

    Certificate of Quality Compliance - ALA Series (1 page) Certificate of Quality Compliance - ALA Series (1 page)
