5 Speaker Full Range Line Array Speaker System

ALA5T
  • IP31 Rated
  • 4OHM8OHMCAPABLE
  • Non-Powered
  • 70V100VCAPABLE
    DESCRIPTION

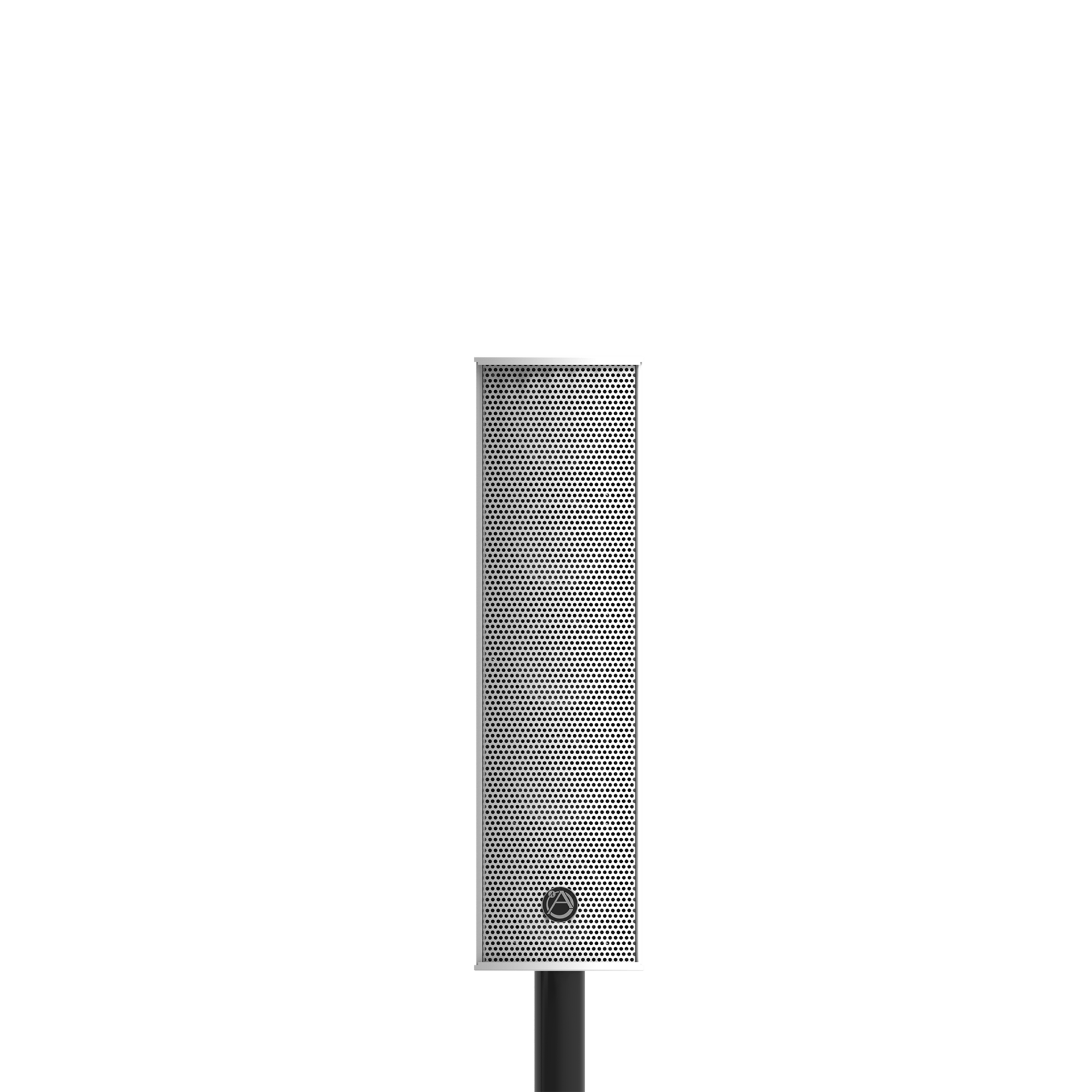

    The ultra-compact ALA5T column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5T’s transducer configuration combines five tight packed 3" full range drivers and two 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.

    Finish is silver.

    Note: Pole and pole mount bracket sold separately.





    Features
    • 45° Vertical Coverage
    • 135° Horizontal Coverage
    • Two (2) High Frequency Tweeters
    • Five (5) Proprietary 3" (76mm) Full Range Drivers

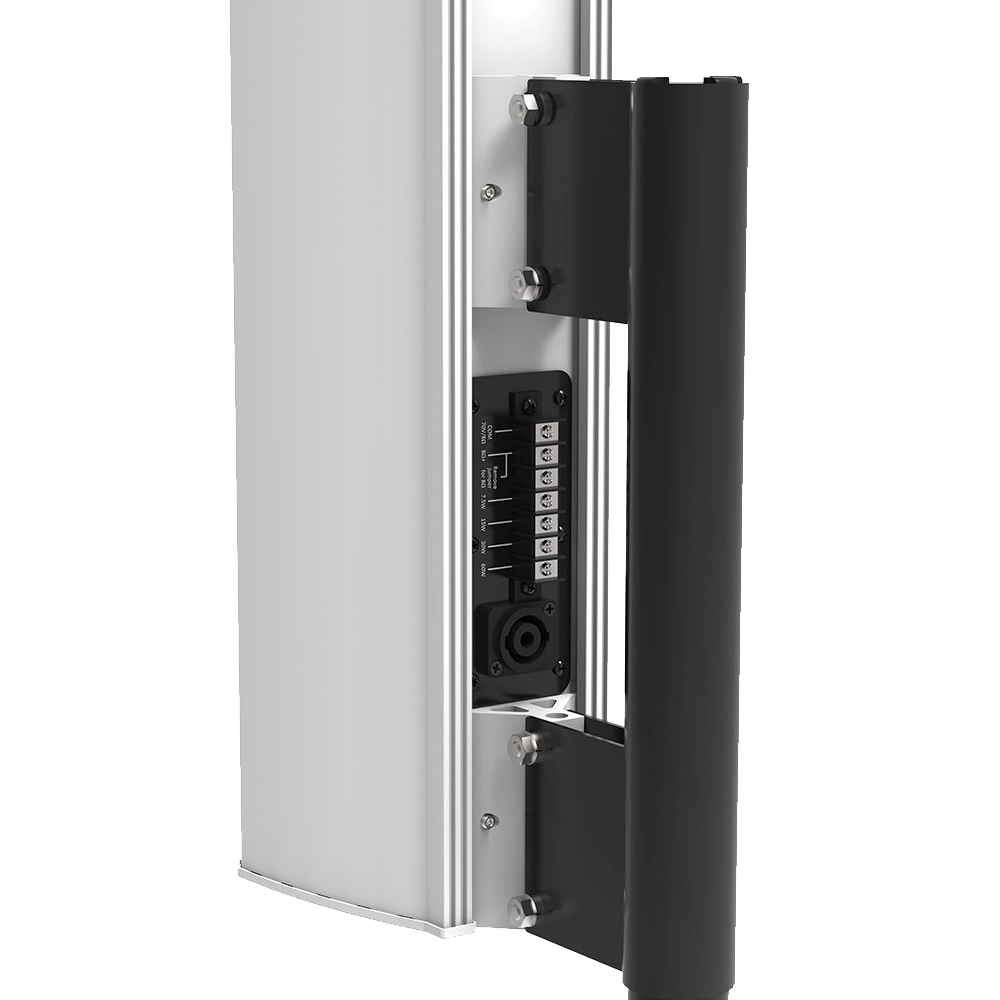

    • Barrier Strip and NL-4 Terminals
    • Lightweight Aluminum Housing
    • Wall Mount Bracket Included

    SPECIFICATIONS
    8Ω RMS Power 125 Watts
    70.7V Power Taps 7.5, 15, 30, & 60 Watts
    Dispersion 135° H x 45° V
    Sensitivity 92dB 1W/1m
    Frequency Response 125Hz - 20kHz
    Height 16.61" (422mm)
    Depth 5.43" (137.9mm)
    Width 4.61" (117mm)
    Warranty Period 60 months from date of purchase
