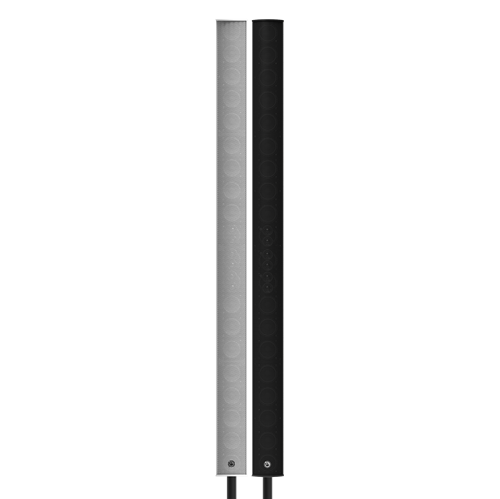

EN54-24 Certified 20 Speaker Full Range Line Array Speaker System in Black or White Finish

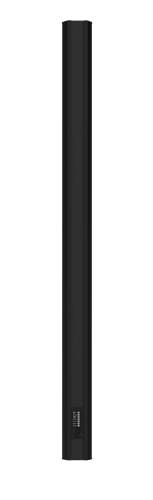

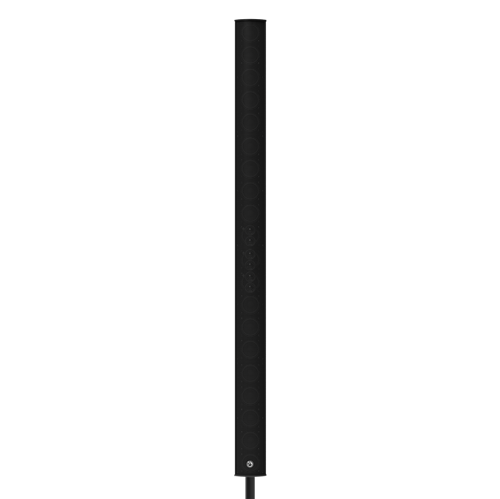

Picture of EN54-24 Certified 20 Speaker Full Range Line Array Speaker System (black finish)
EN54-24 Certified 20 Speaker Full Range Line Array Speaker System (black finish)
SKU: ALA20TAW-B
Availability: In stock
MSRP (USD): $1,058.99

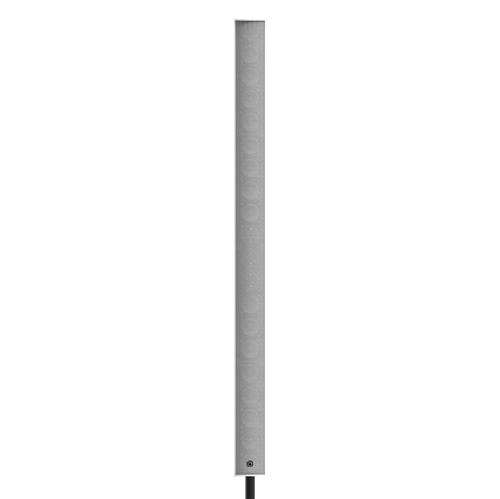

Picture of EN54-24 Certified 20 Speaker Full Rnge Line Array Speaker System (white finish)
EN54-24 Certified 20 Speaker Full Rnge Line Array Speaker System (white finish)
SKU: ALA20TAW
Availability: In stock
MSRP (USD): $1,058.99
  • EN54-24 Certified
  • IP33
  • Non-Powered
  • 6-Ohm Capable
  • 70V100VCAPABLE
    DESCRIPTION

    The EN54-24 certified ALA20TAW column line array loudspeaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20TAW’s transducer configuration combines twenty tight packed 3" (76mm) full range drivers and six 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.

    Note: Pole and pole mount bracket sold separately.


    FEATURES
    • 45° Vertical Coverage
    • 135° Horizontal Coverage
    • Twenty (20) Proprietary 3" (76mm) Full Range Drivers

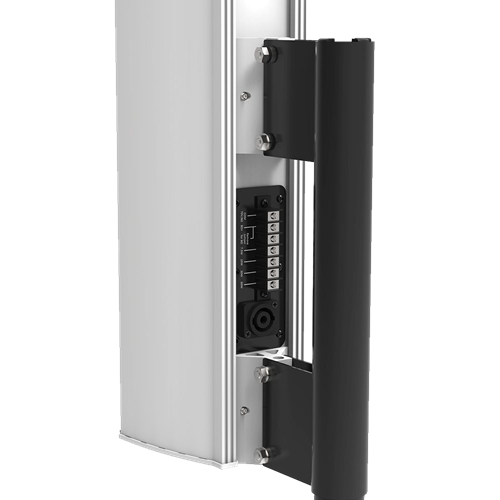

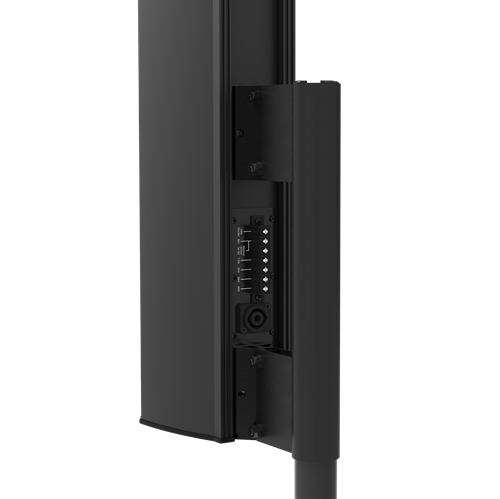

    • Barrier Strip and NL-4 Terminals
    • Barrier Strip and NL-4 Terminals
    • Lightweight Aluminum Housing
    • Wall Mount Bracket Included

    SPECIFICATIONS
    6Ω RMS Power 1000 Watts
    70.7V Power Taps 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
    100V Power Taps 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
    Dispersion 135° H & 40° V
    Sensitivity 97dB (1W/1m)
    Sensitivity (EN54-24) 82dB (1W/4m)
    Frequency Response 110Hz - 20kHz (+/-5dB)
    Height 65.75" (1670mm)
    Depth 5.43" (137.9mm)
    Width 4.61" (117mm)

    SUPPORT FILES
    ALA20TAW Installation Sheet (12 pages)

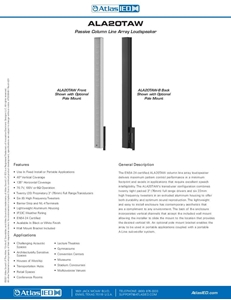

    ALA20TAW Data Sheet (8 pages)
    ALA20TAW CAD Drawing (pdf)
    ALA30TAW CAD Drawing
    ALA20T EASE File
    Declaration of Performance (DoP) _3004-EN54-24 UK & CE for ALAxxTAW (4 pages)
    Certificate of Quality Compliance - ALA Series (1 page)
