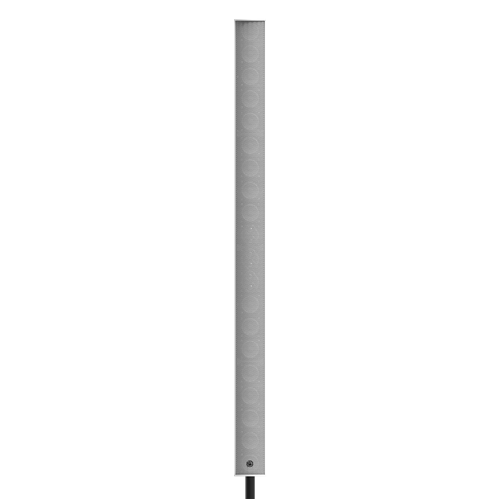

20 Speaker Full Range Line Array Speaker System

ALA20T

  • IP31 Rated
  • 4OHM8OHMCAPABLE
  • Non-Powered
  • 70V100VCAPABLE
    DESCRIPTION

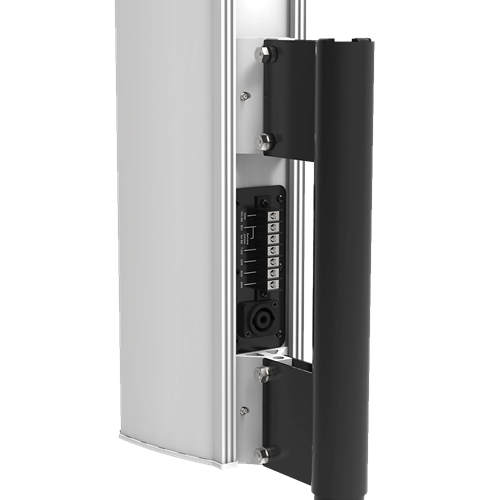

    The ALA20T column line array speaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20T’s transducer configuration combines twenty tight packed 3" full range drivers and six 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.

    Finish is silver.

    Note: Pole and pole mount bracket sold separately.


    Features
    • 45° Vertical Coverage
    • 135° Horizontal Coverage
    • Twenty (20) Proprietary 3" (76mm) Full Range Drivers
    • Barrier Strip and NL-4 Terminals
    • Barrier Strip and NL-4 Terminals
    • Lightweight Aluminum Housing
    • Wall Mount Bracket Included

    SPECIFICATIONS
    8Ω RMS Power 500 Watts
    70.7V Power Taps 7.5, 15, 30, & 60 Watts
    Dispersion 135° H & 40° V
    Sensitivity 97dB 1W/1m
    Frequency Response 90Hz - 20kHz
    Height 65.75" (1670mm)
    Depth 5.43" (137.9mm)
    Width 4.61" (117mm)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    Declaration of Performance (DoP) _3004-EN54-24 UK & CE for ALAxxTAW (4 pages) Declaration of Performance (DoP) _3004-EN54-24 UK & CE for ALAxxTAW (4 pages)
    ALA20T CAD File ALA20T CAD File
    ALA20T EASE DATA ALA20T EASE DATA
    ALA20T Install Sheet (6 pages) ALA20T Install Sheet (6 pages)
    ALA20T Datasheet (8 pages) ALA20T Datasheet (8 pages)
    Certificate of Quality Compliance - ALA Series (1 page) Certificate of Quality Compliance - ALA Series (1 page)
