15 Speaker Full Range Line Array Speaker System - Black

ALA15T-B
  • Non-Powered
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
  • IP31 Rated

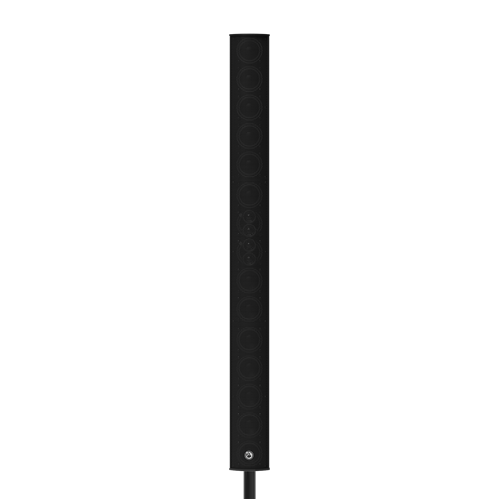

    The ALA15T-B column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA15T-B's transducer configuration combines fifteen tight packed 3" full range drivers and four 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.

    Note: Pole and pole mount bracket sold separately.

    FEATURES
    70.7V or 8Ω Operation
    135° Horzontal Coverage
    40° Vertical Coverage
    Fifteen Proprietary 3" Full Range Drivers
    Four High-Frequency Tweeters

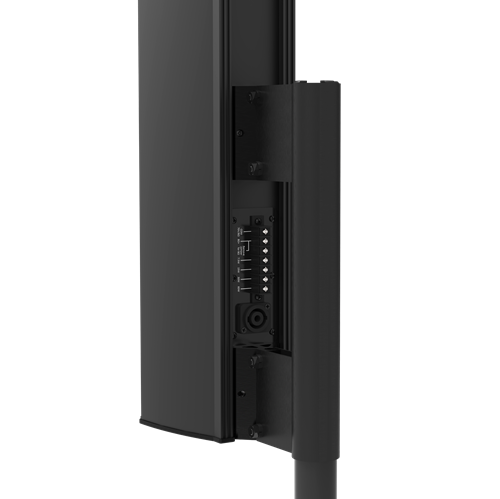

    Barrier Strip and NL-4 Terminals
    Lightweight Aluminum Housing
    Mounting System Included
    SPECIFICATIONS
    8Ω RMS Power 250 Watts
    70.7V Power Taps 7.5, 15, 30, & 60 Watts
    Dispersion 135° H x 40° V
    Sensitivity 96dB 1W/1m
    Frequency Response 90Hz - 20kHz
    Height 49.37" (1254mm)
    Depth 5.43 (137.9mm)
    Width 4.61" (117mm)
    SUPPORT FILES

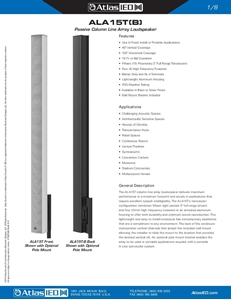

    Data Sheet
    ALA15T Data Sheet (8 pages)
    Installation Sheet
    ALA15T Install Sheet (6 pages)
    CAD Drawing
    ALA15T CAD File
    EASE File
    ALA15T EASE File
