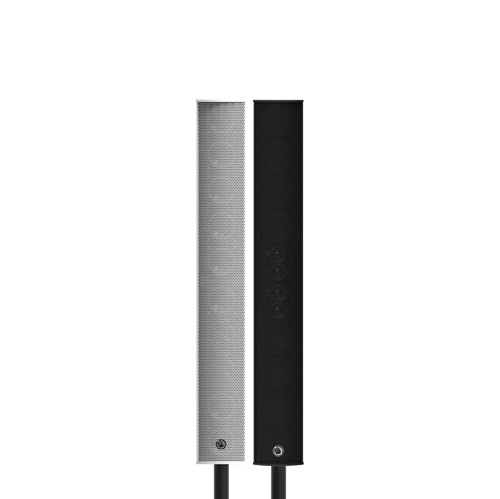

EN54-24 Certified 10 Speaker Full Range Line Array Speaker System in Black or White Finish

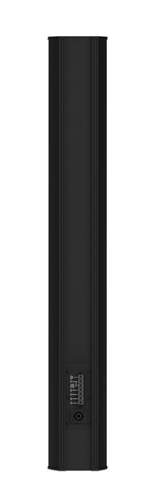

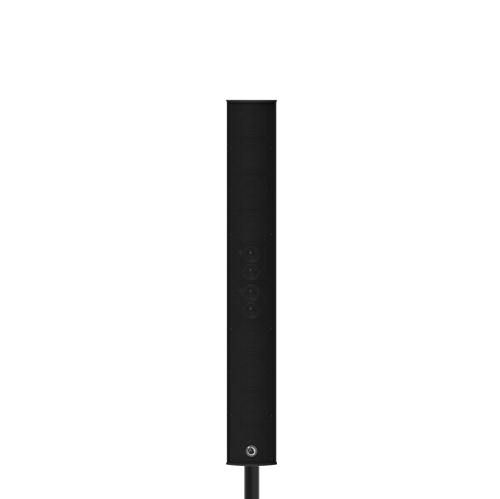

Picture of EN54-24 Certified 10 Speaker Full Range Line Array Speaker System (black finish)
EN54-24 Certified 10 Speaker Full Range Line Array Speaker System (black finish)
SKU: ALA10TAW-B
Availability: In stock
MSRP (USD): $746.99

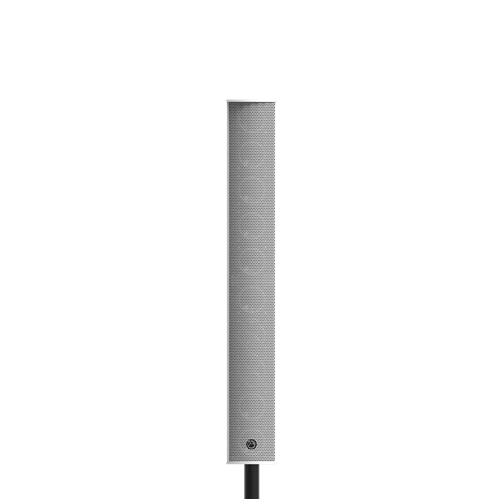

Picture of EN54-24 Certified 10 Speaker Full Range Line Array Speaker System (white finish)
EN54-24 Certified 10 Speaker Full Range Line Array Speaker System (white finish)
SKU: ALA10TAW
MSRP (USD): $746.99
  • EN54-24 Certified
  • IP33
  • Non-Powered
  • 6-Ohm Capable
  • 70V100VCAPABLE
    DESCRIPTION

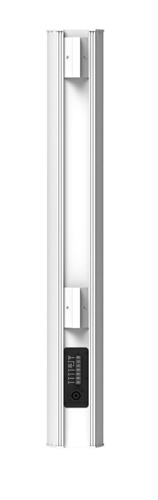

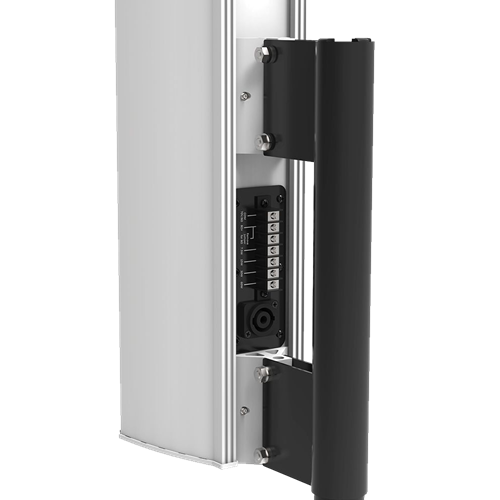

    The EN54-24 certified compact ALA10TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA10TAW’s transducer configuration combines ten tight packed 3" (76mm) full range drivers and four 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.

    Note: Pole and pole mount bracket sold separately.


    FEATURES
    • 45° Vertical Coverage
    • 135° Horizontal Coverage
    • Ten (10) Proprietary 3" (76mm) Full Range Drivers
    • Four (4) High Frequency Tweeters
    • Barrier Strip and NL-4 Terminals
    • Lightweight Aluminum Housing
    • Wall Mount Bracket Included

    SPECIFICATIONS
    6Ω RMS Power 600 Watts
    70.7V Power Taps 60W (81Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
    100V Power Taps 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
    Dispersion 135° H x 40° V
    Sensitivity 96dB (1W/1m)
    Sensitivity (EN54-24) 82dB (1W/4m)
    Frequency Response 160Hz - 20kHz (+/-5dB)
    Height 32.9" (835.7mm)
    Depth 5.43" (137.9mm)
    Width 4.61" (117mm)

    SUPPORT FILES
    ALA10TAW Installation Sheet (12 pages) 1 MB
    ALA10TAW Data Sheet (8 pages) 724 KB
    ALA10TAW CAD Drawing (pdf) 119 KB
    ALA10TAW CAD Drawing 248 KB
    ALA10T EASE DATA 400 KB
    Declaration of Performance (DoP) _3004-EN54-24 UK & CE for ALAxxTAW (4 pages) 285 KB
    Certificate of Quality Compliance - ALA Series (1 page) 347 KB
