10 Speaker Full Range Line Array Speaker System - Black

ALA10T-B

  • IP31 Rated
  • 4OHM8OHMCAPABLE
  • Non-Powered
  • 70V100VCAPABLE
    DESCRIPTION

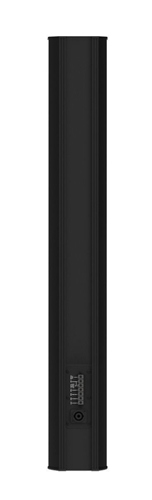

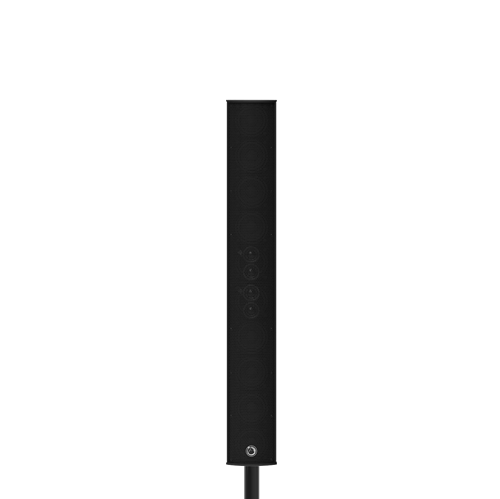

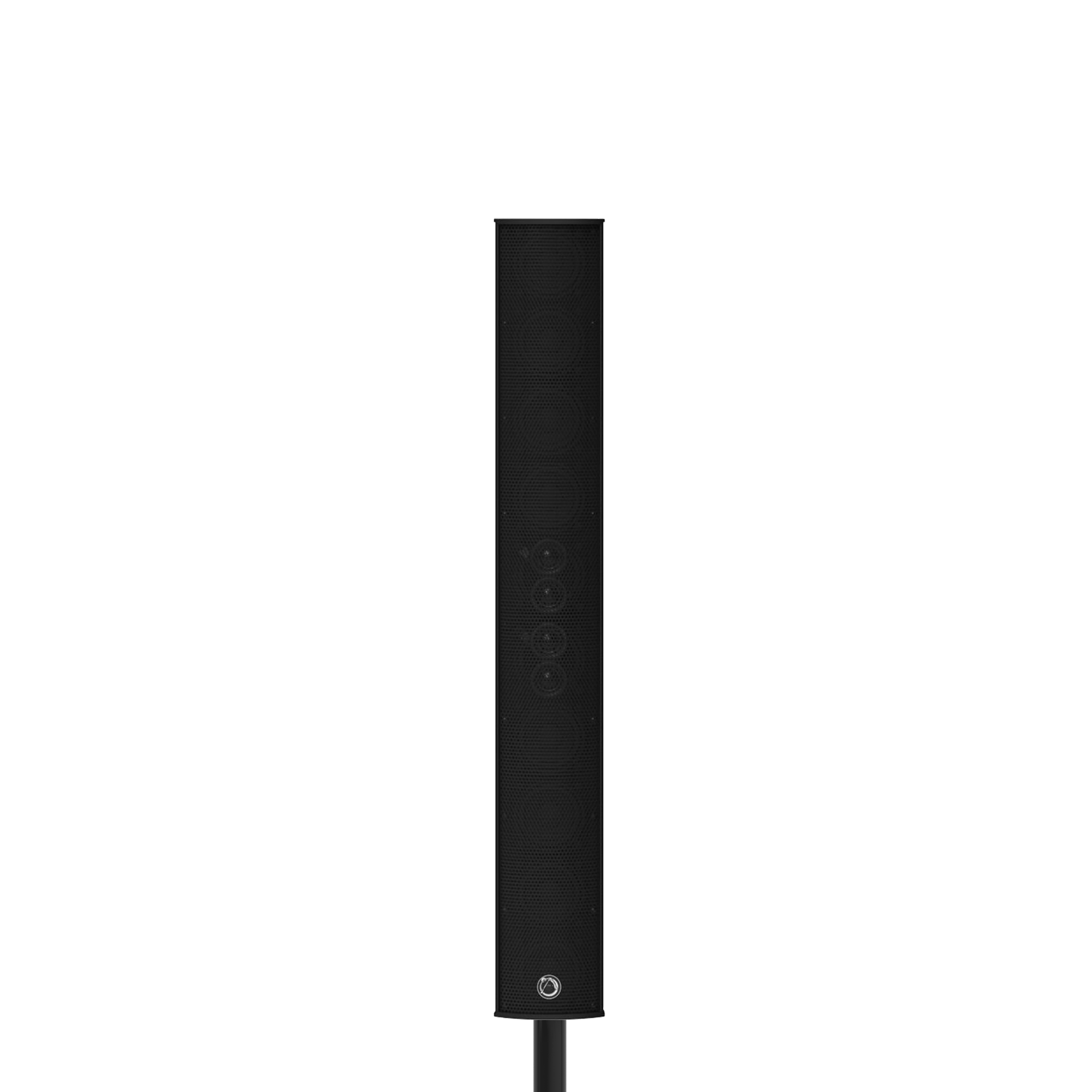

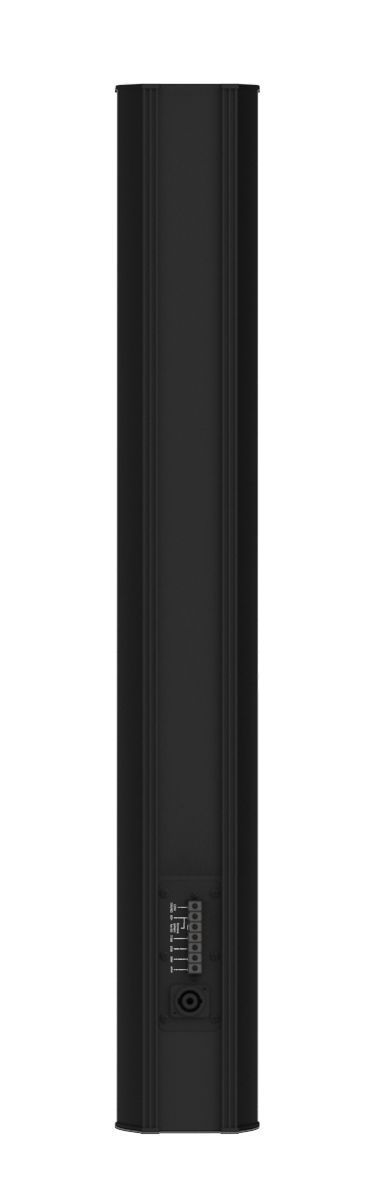

    The ALA10T-B column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA10T-B’s transducer configuration combines ten tight packed 3" full range drivers and four 25mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable
    A-Line subwoofer system.

    Note: Pole and pole mount bracket sold separately.


    Features
    • 45° Vertical Coverage
    • 135° Horizontal Coverage
    • Ten (10) Proprietary 3" (76mm) Full Range Drivers
    • Four (4) High Frequency Tweeters

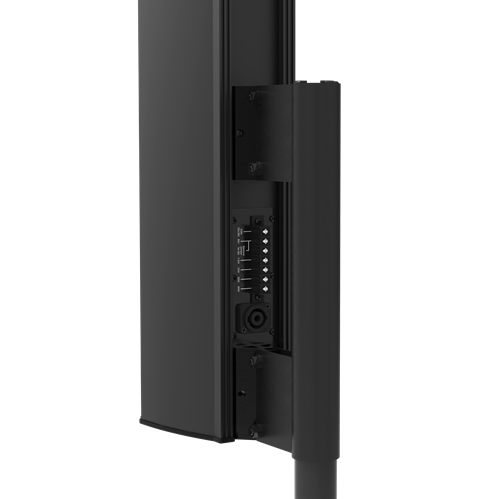

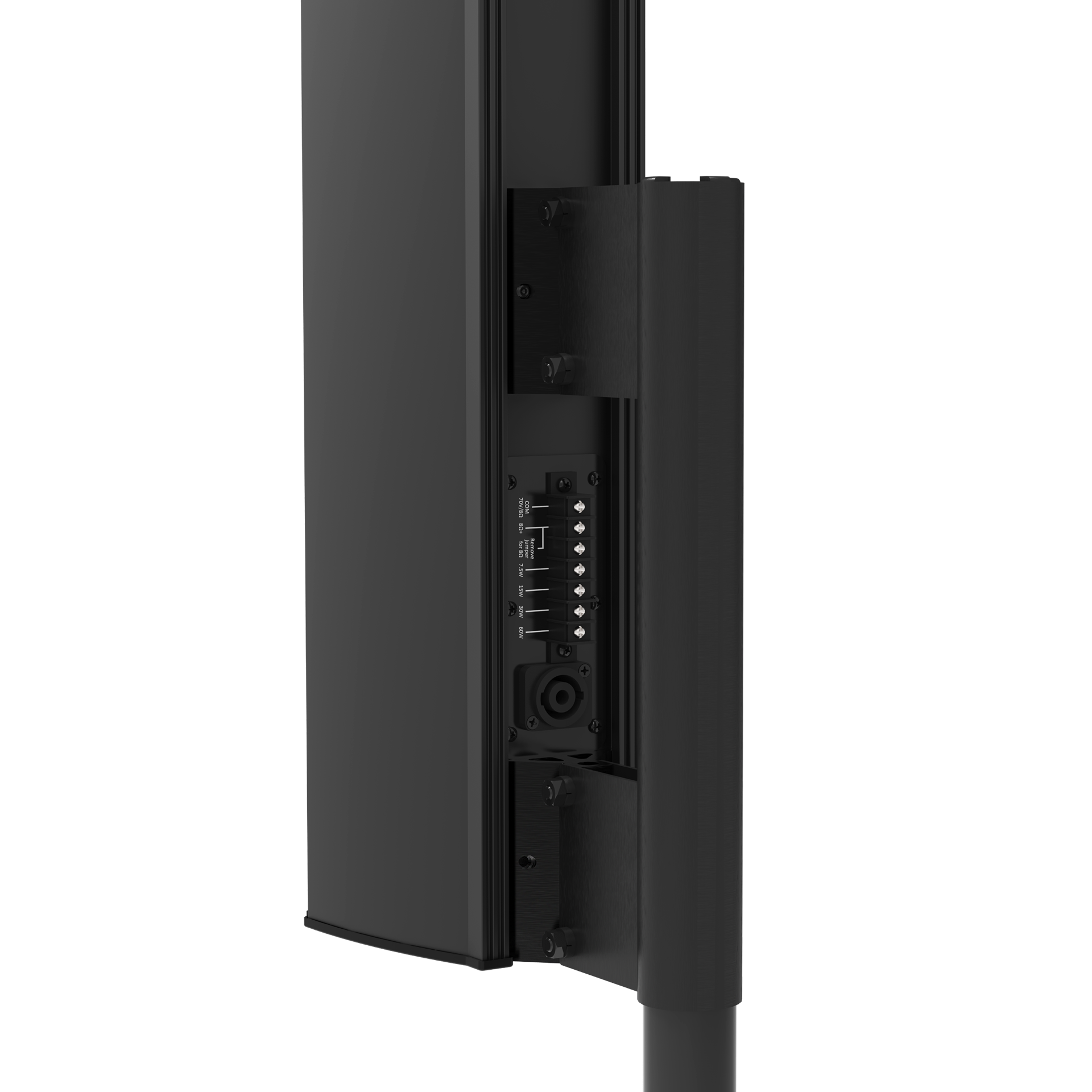

    • Barrier Strip and NL-4 Terminals
    • Lightweight Aluminum Housing
    • Wall Mount Bracket Included

    SPECIFICATIONS
    70.7V Power Taps 7.5, 15, 30, & 60 Watts
    Dispersion 135° H x 40° V
    Sensitivity 96dB 1W/1m
    Frequency Response 125Hz - 20kHz
    Height 32.9" (835.7mm)
    Depth 5.43" (137.9mm)
    Width 4.61" (117mm)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    Declaration of Performance (DoP) _3004-EN54-24 UK & CE for ALAxxTAW (4 pages) Declaration of Performance (DoP) _3004-EN54-24 UK & CE for ALAxxTAW (4 pages)
    ALA10T EASE DATA ALA10T EASE DATA

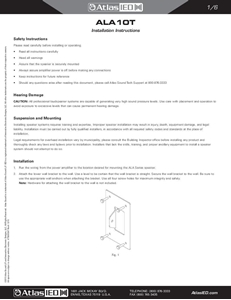

    ALA10T Install Sheet (6 pages) ALA10T Install Sheet (6 pages)

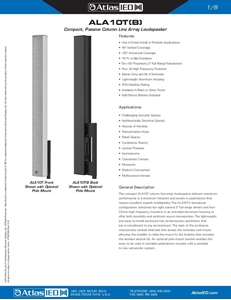

    ALA10T Datasheet (8 pages) ALA10T Datasheet (8 pages)
    Certificate of Quality Compliance - ALA Series (1 page) Certificate of Quality Compliance - ALA Series (1 page)
