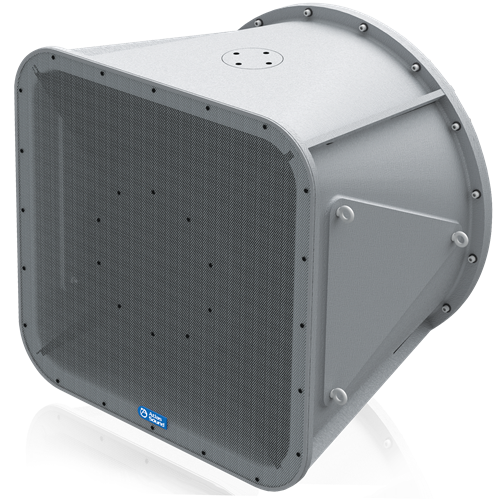

15" AH Series Stadium Subwoofer System

AHSUB15-BSG

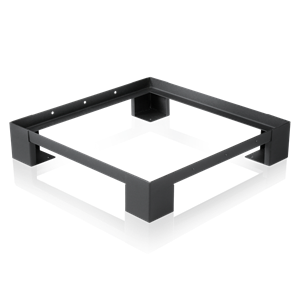

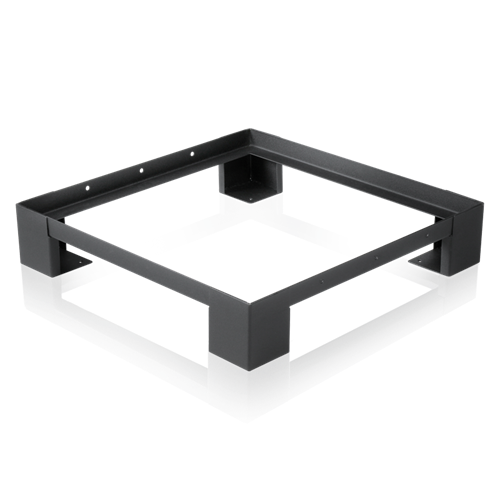

  • Mount Sold Separately
  • 4OHM8OHMCAPABLE

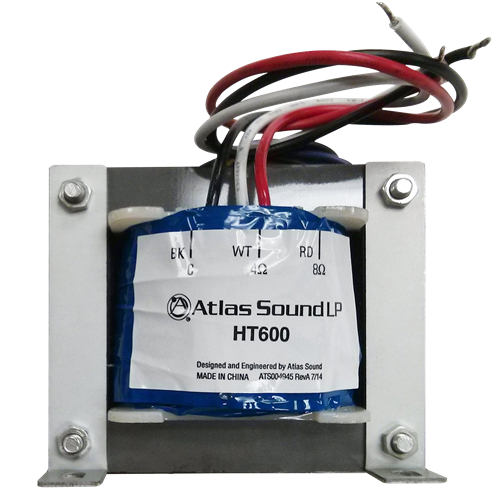

  • 70V100VCAPABLE
  • Non-Powered
  • IP54
    DESCRIPTION

    The AHSUB15-BSG subwoofer system features high output and amazing low frequency response for indoor and outdoor applications including football stadiums, sports arenas, baseball fields, and large auditoriums.

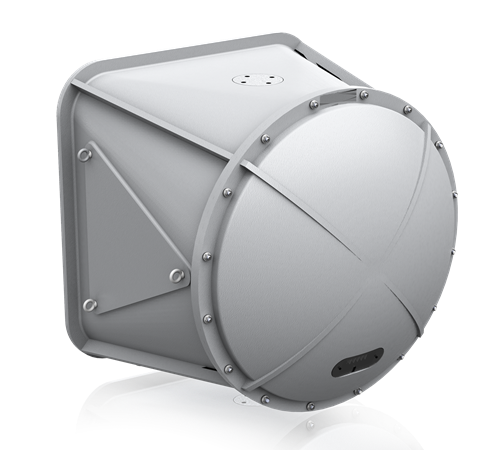

    Unit features an efficient low frequency woofer loaded into a durable, weather resistant, rear firing enclosure.


    Features
    • 250W RMS 500W Peak Power Handling
    • Easy Installation. Secure Surface Mounting or Suspension Installation is Possible Via the Integral Forged Eyebolts.
    • Easy, Weather Resistant Connection Via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
    • Impressive Efficiency Rating of 103dB 1Watt/1Meter Makes the AHSUB15-BSG a Perfect Choice for Low Frequency Augmentation of High Energy Music Playback at Sporting Events
    • Maximum Output of 127dB (Rated Power @ 1M)
    • Weather and Rodent Resistant. Rear Firing Woofer Cavity and Mesh Screen Over the Enclosure Front Protects the Speaker from Weather and/or Rodent Damage.

    SPECIFICATIONS
    Frequency Response 55Hz - 120Hz
    Power Handling 250W
    Dispersion Omni
    Sensitivity 103dB SPL (1W/1m)
    Width 30" (762 mm)
    Height 30.56" (776.22 mm)
    Depth 28.16" (715.26 mm)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    AHSUB15 CAD Drawing AHSUB15 CAD Drawing
    AHSUB15-BSG Revit Drawing AHSUB15-BSG Revit Drawing

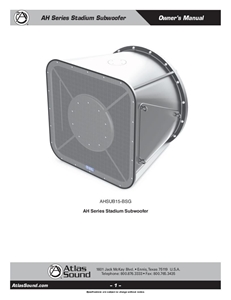

    AHSUB15-BSG Owners Manual (12 pages) AHSUB15-BSG Owners Manual (12 pages)

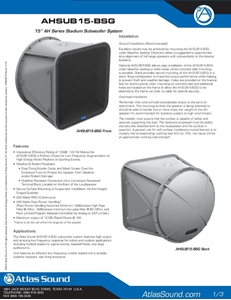

    AHSUB15S-BSG Datasheet (3 pages) AHSUB15S-BSG Datasheet (3 pages)
