8" 2-way Stadium Horn Loudspeaker System 90° x 40°

AH94-8T-BSG
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
  • 90°H x 40°V Coverage
  • Non-Powered
  • IP54

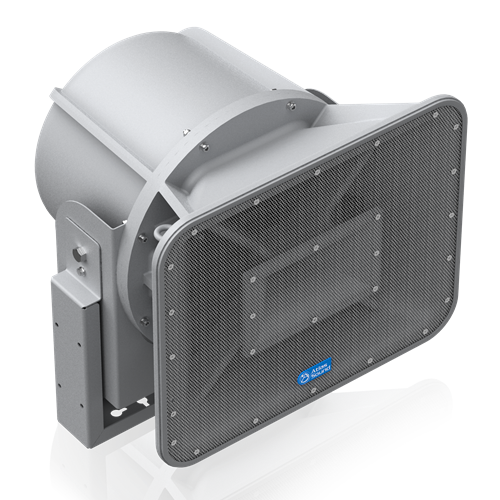

    AtlasIED model AH94-8T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.

    Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

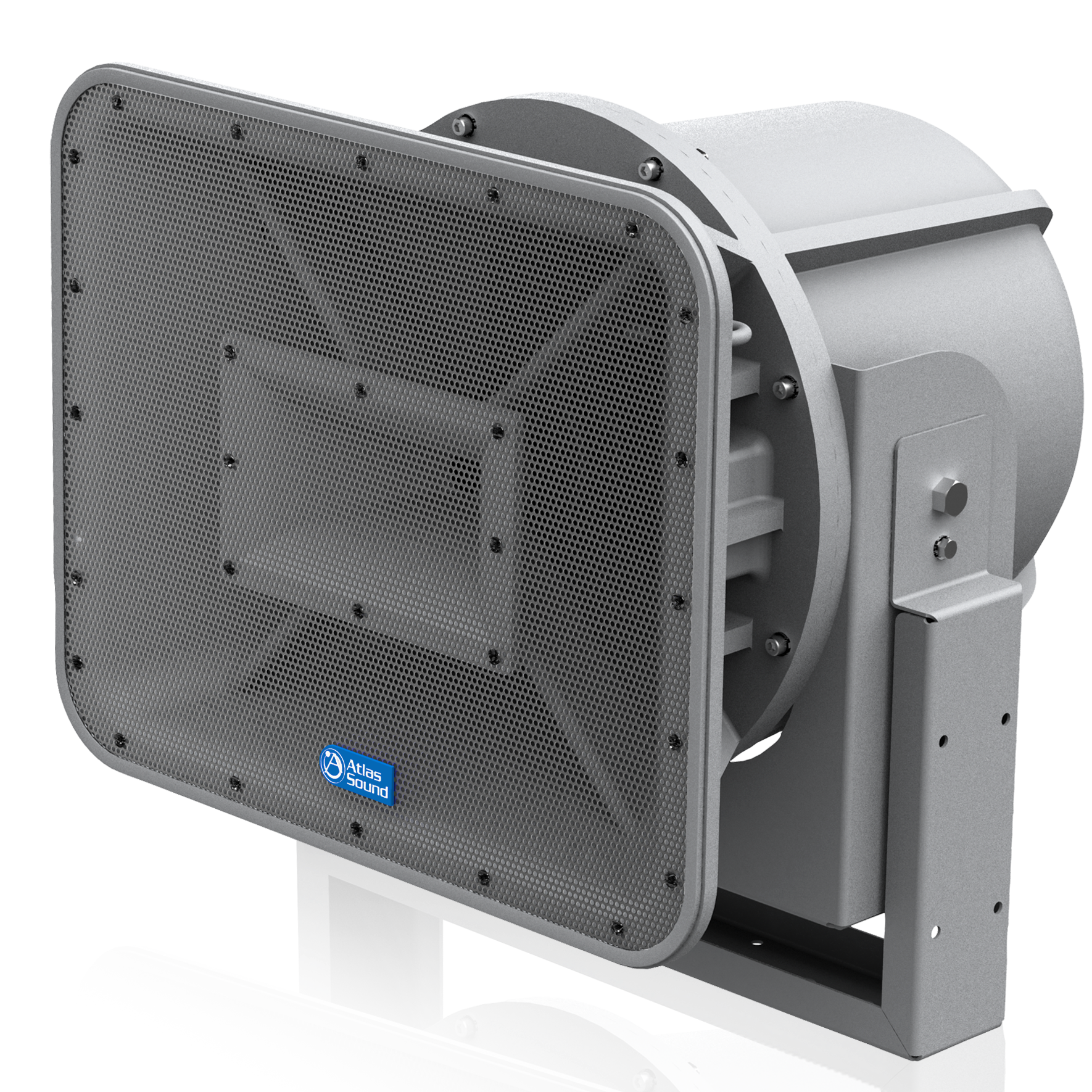

    Weather resistant construction features of the AH94-8T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 8" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

    Features
    100 Watts Power Handling
    Constant Directivity Design Offers Controlled Coverage of 90° Horizontal by 40° Vertical (2kHz Octave Band)
    Driver Compliment Includes 8" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 90°H x 40°V HF Horn
    Efficiency Rating of 101dB (1W/1m)

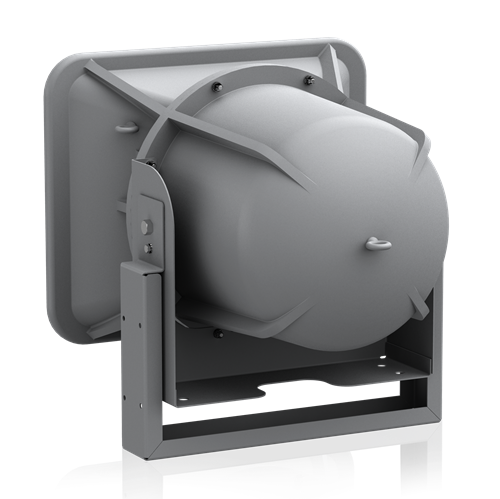

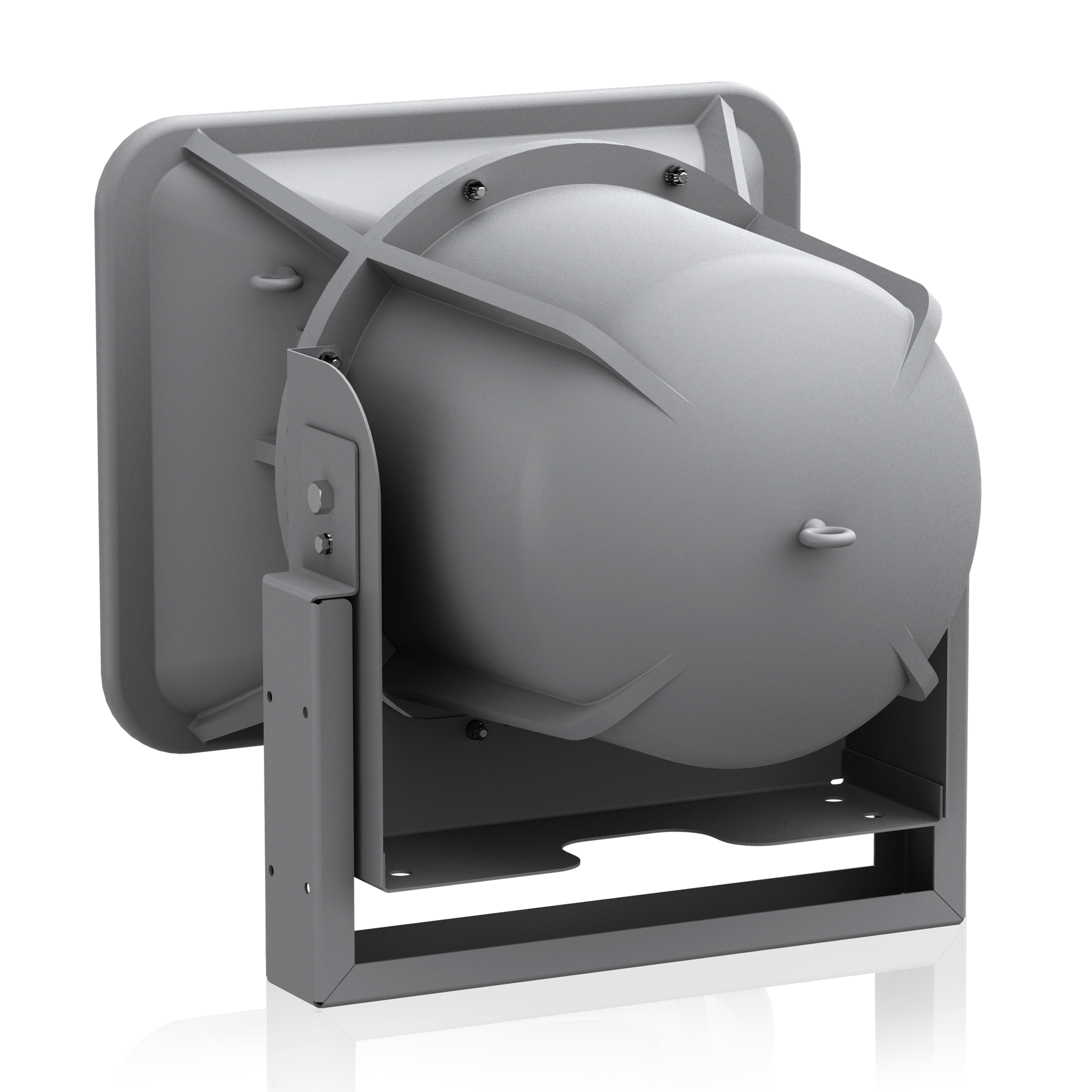

    Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
    Maximum Output of 121dB (Rated Power @ 1M)
    Tech Specs
    Power Taps 7.5, 15, 30, and 60 Watts & 8Ω
    Sensitivity 101dB SPL
    Frequency Response 90Hz - 15kHz
    Driver Type 1" HF and 8" LF
    Dispersion 90° x 40°
    Width 19.66" (49.93cm)
    Weight 63.00 lbs (28.58 kgs)
    Support Files
    CAD Drawing AH94CD8 CAD Drawing Download
    AH_Brochure (4 pages) View | Download

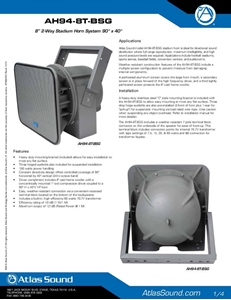

    Data Sheet ATS004761 AH94-8T-BSG Data Sheet RevA (4 pages) View | Download
    Installation Sheet AH Series PoleStar Install Parts Guide (5 pages) View | Download
    Installation Sheet ATS004338_AH_Series_LoudSpeakers_Install_Sheet (11 pages) View | Download
    Revit Drawing AH94-8T-BSG Revit Drawing Download
