12" 2-Way Stadium Horn Loudspeaker System 65° x 65°

AH66-12T-BSG
Availability: In stock
Your price (USD): $1,490.99
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
  • 60°H x 60°V Coverage
  • Non-Powered
  • IP54

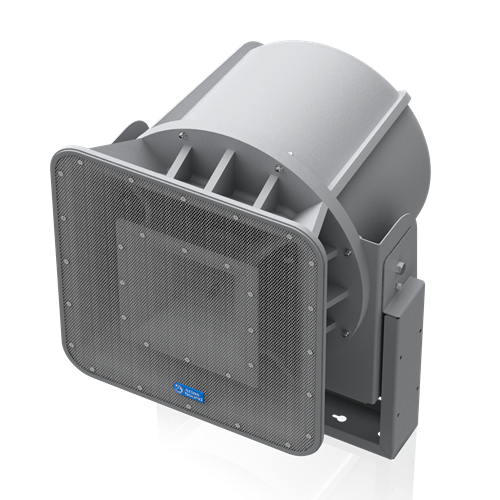

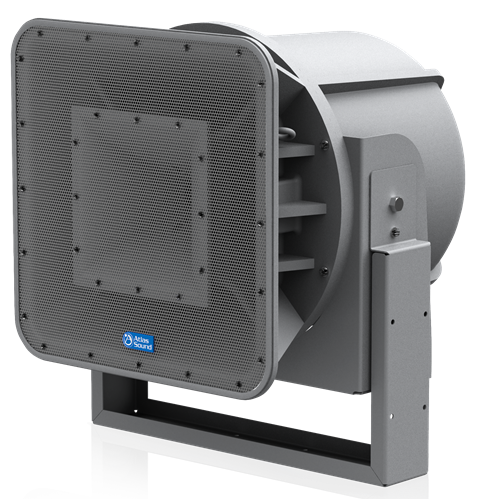

    AtlasIED model AH66-12T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.

    Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

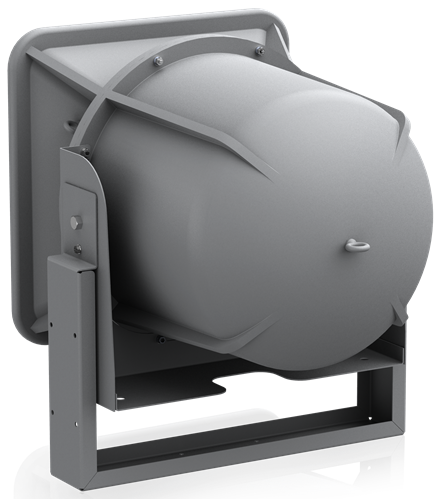

    Weather resistant construction features of the AH66-12T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 12" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.



    FEATURES
    Constant Directivity Design Offers Controlled Coverage of 65° Horizontal by 65° Vertical (2kHz Octave Band)
    Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 65°H x 65°V HF Horn
    Efficiency Rating of 102dB (1W/1m)
    Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
    Maximum Output of 125dB (Rated Power @ 1M)
    Neutral Battleship Gray Finish
    SPECIFICATIONS
    Power Taps 7.5, 15, 30, and 60 Watts & 8Ω
    Sensitivity 101dB SPL
    Frequency Response 80Hz - 15kHz
    Driver Type 1" HF and 12" LF
    Dispersion 65° x 65°
    Width 21.41" (54.38cm)
    Weight 82.00 lbs (37.19 kgs)
    SUPPORT FILES
    CAD Drawing
    AH66CD12 CAD Drawing

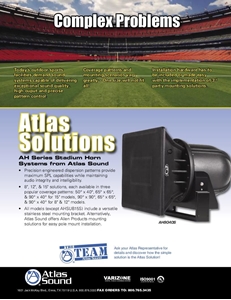

    AH_Brochure (4 pages)
    AH-12_SINGLE_POLE_MOUNT-REV01-073008 (2 pages)
    AH-12_DOUBLE_POLE_MOUNT-REV03-073008 (1 page)
    Data Sheet

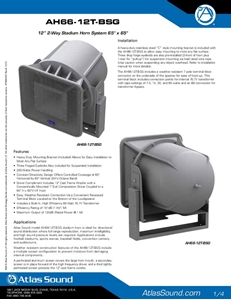

    ATS004767 AH66-12T-BSG Data Sheet RevA (4 pages)
    Installation Sheet

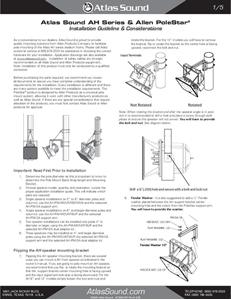

    AH Series PoleStar Install Parts Guide (5 pages)
    Installation Sheet

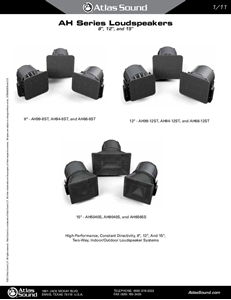

    ATS004338_AH_Series_LoudSpeakers_Install_Sheet (11 pages)
    Revit Drawing
    AH66-12T-BSG Revit Drawing
