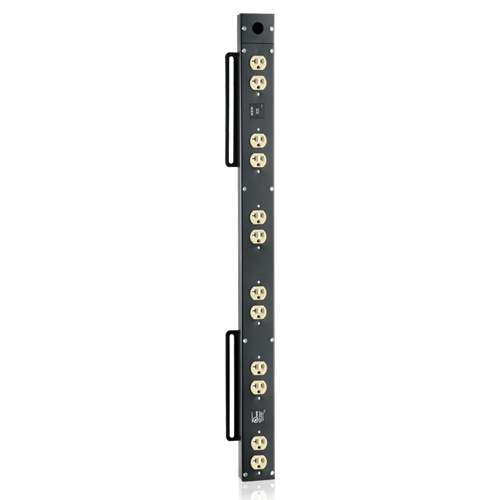

AC Outlet Strip 12 outlets 20A

Name: Discontinued Obsolete SKU
Brand: AtlasIED
SKU: ACS-2A
Rating: 5 (5 reviews)

ACS-2A

DESCRIPTION

Outlet strip includes six grounded duplex outlets for installation in equipment cabinets with vertical panel space greater than 36 3/4".

May be used in conjunction with AtlasIED fan assemblies and power panels to provide a complete cooling and AC power distribution system. Includes hardware. Finished in black epoxy.

Dimensions are 36 3/4" L x 2 5/8" W x 1 5/8" H.

Features

20 Amp Outlet Rating
6" Pigtail
Finished in Black Epoxy
Includes Six Grounded Duplex Outlets for Installation in Equipment Cabinets with Vertical Panel Space Greater than 36 3/4"

SPECIFICATIONS

Current Rating	20A
Light	No
Mounting Orientation	Vertical
Outlets	12
Height	36 3/4" (93.35 cm)
Width	2 5/8" (6.67 cm)
Depth	1 5/8" (4.13 cm)
Shipping Weight	7.50 lbs (3.40 kgs)
Safety Listed	5
Warranty Period	12 months from date of purchase

SUPPORT FILES

ACS-2A CAD Drawing

Download

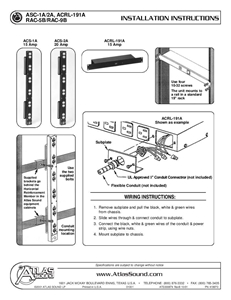

Rack Outlet Strip Installation Instructions (2 pages)

View | Download

AC Outlet Strips Datasheet (2 pages)

View | Download
