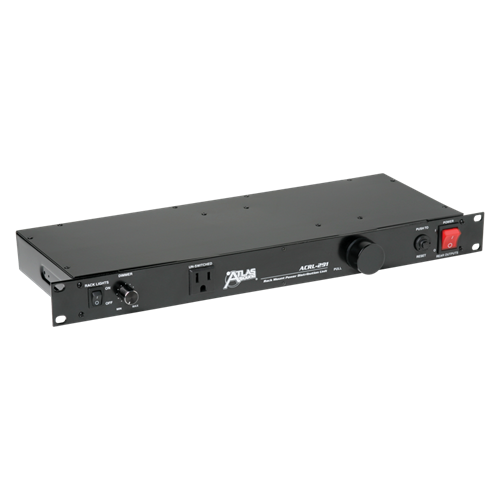

Rack Mount Power & Light Module 8 Switched Outlets, Front & Rear Pull Out Lights

  • UL Listed

    Model ACRL-291 slimline AC power panel requires only 1 RU (1¾") of vertical panel space and features a front mounted DPST-type rocker switch for switching both sides of the power line, a red neon status indicator lamp, a 15-amp resettable circuit breaker on the front panel, and eight switched grounded outlets on the back chassis along with one unswitched front panel outlet. Dimmable pull-out lights are provided on the front and rear of the unit to provide illumination during and after installation of rack mount equipment.

    A 9' (3m) factory installed powercord is included with the unit. However, a unique removable rear wiring panel with E.O. connector/strain relief provides for easy connection to internal pigtail power leads.

    Panel is 16-gauge CRS and formed on two sides for recessed mounting. Standard finish is textured black epoxy.

    • Dimmer switch for pull-out lights included on front panel
    • Eight switched outlets - rear panel
    • Front-mounted, resettable 15-amp circuit breaker
    • Lighted rocker switch with a red neon status indicator lamp
    • MOV voltage spike protection
    • One pull-out light on front panel
    • One pull-out light on rear panel
    • One unswitched outlet - front panel
    • Provides single switch control for all AC power
    • RFI/EMI filtering
    • Slim design utilizes only 1-3/4" (1RU) of vertical panel space

    Height 1 3/4" (4.445 cm)
    Width 19" (48.26 cm)
    Depth 6 1/4" (15.875 cm)
    Shipping Weight 7.00 lbs (3.18 kgs)
    Current Rating 15A
    Light Yes
    Mounting Orientation Horizontal
    Outlets 9

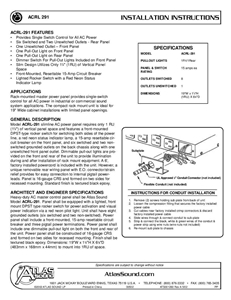

    ACRL Power Panel Install Sheet (1 page) ACRL Power Panel Install Sheet (1 page)

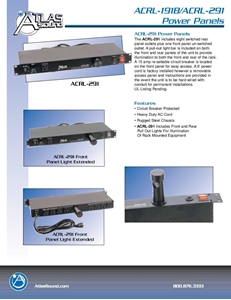

    ACRL Power Panel Datasheet (2 pages) ACRL Power Panel Datasheet (2 pages)
