Rack Mount Power Module, 6 Switched, 2 Unswitched Outlets

  • UL Listed

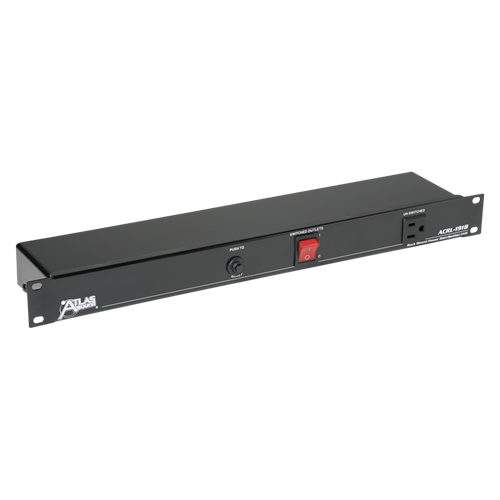

    Model ACRL-191B slimline AC power panel requires only 1 RU (1-3/4") of vertical panel space and features a front-mounted DPST-type rocker switch for switching both sides of the power line, a red neon status indicator lamp, a 15 amp resettable circuit breaker on the front panel, and (6) six switched and two non-switched grounded outlets on the back chassis along with (1) one unswitched front panel outlet.

    A 9' (3m) factory installed powercord is included with the unit. However, a unique removable rear wiring panel with E.O. connector/strain relief provides for easy connection to internal pigtail powerleads.

    Panel is 16-gauge CRS and formed on two sides for recessed mounting.
    Standard finish is textured black epoxy.

    • Front-mounted, resettable 15-amp circuit breaker
    • Lighted rocker switch with a red neon status indicator lamp
    • One unswitched outlet - front panel
    • Provides single switch control for all AC power
    • Six switched and two unswitched outlets - rear panel
    • Slim design utilizes only 1-3/4" (1RU) of vertical panel space

    Height 1 3/4" (4.445 cm)
    Width 19" (48.26 cm)
    Depth 3 3/4" (9.525 cm)
    Shipping Weight 6.00 lbs (2.72 kgs)
    Current Rating 15A
    Light No
    Mounting Orientation Horizontal
    Outlets 9

    ACRL Power Panel Datasheet (2 pages) ACRL Power Panel Datasheet (2 pages)

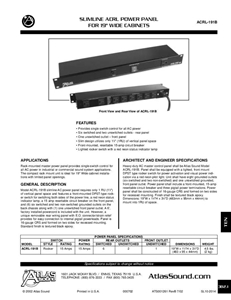

    ACRL Power Panel Data Sheet (2 pages) ACRL Power Panel Data Sheet (2 pages)
