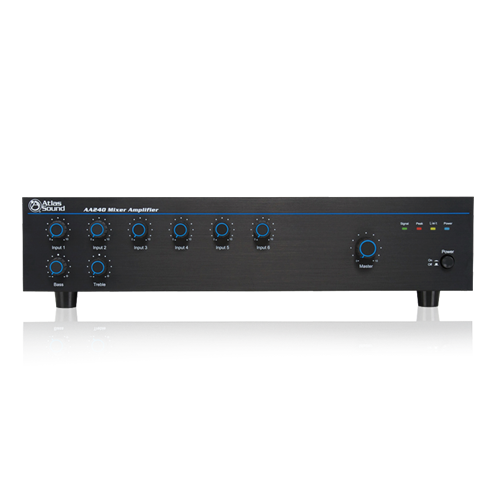

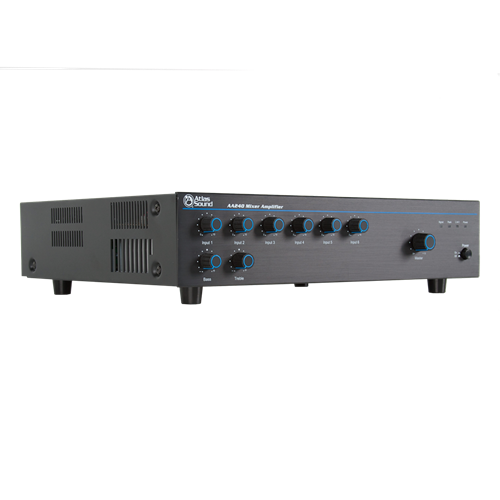

6-Input, 240-Watt Mixer Amplifier

AA240

  • Rack Kit Sold Separately
  • UL Listed
  • 4OHM8OHMCAPABLE
  • 70V / 100V Operation
  • Remote Level
    DESCRIPTION

    The AA240 is a 240 Watt six input channel mixer amplifier engineered with unique features to assist the contractor or installer in today’s commercial business audio environment. It is designed for distributed paging and background music (BGM) systems, small to medium sound masking systems, and in applications where music on hold (MOH) plus paging is required.

    With five microphone/line inputs and one stereo line input, the AA240 will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers.This six input mixer amplifier features muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. VCA remote level control circuitry is included which may be assigned to the BGM input or globally for the entire amplifier.


    Features
    • 240 Watt 6 Channel Mixer Amplifier
    • 5 Mic/Line Inputs with Phantom Power and 1 Stereo Summing AUX Input
    • Bridge In/Out Circuit with Balanced Link / Internal Relay to Engage Circuit is Perfect for Small Room Combining Systems Eliminating the Need for External Electronics
    • Pre Out / Power Amp In for Patching External Processors
    • Remote or VOX Mute Capabilities
    • Special Low Cut Filter is 6dBu/octave at 400Hz and also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T
    • VCA Control Assignable to Input 6 Line Level (BGM) Input or Global for the Mix Bus
    • Zone 2 MOH Out from CH6 Line Source
    • UL60065 Listed

    SPECIFICATIONS
    Frequency Response 50Hz - 20kHz
    Power Output 240-Watts 8Ω/25V/70.7V/100V
    Connector Type Phoenix and RCA
    Output Power 240 Watts
    Rack Units 2
    Height 4 1/4" (10.71626 cm)
    Width 16 9/16" (42.0116 cm)
    Depth 14 1/16" (35.7124 cm)
    Shipping Weight 26.44 lbs (11.99 kgs)
    Safety Listed 60065-ROHS 2006 Compliant
    Voltage Compatibility 110V - 120V
    Warranty Period 36 months from date of purchase

    SUPPORT FILES

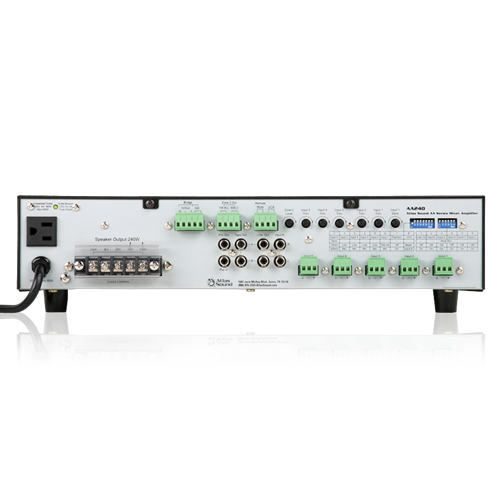

    AA_Amps_Front_Rear AA_Amps_Front_Rear

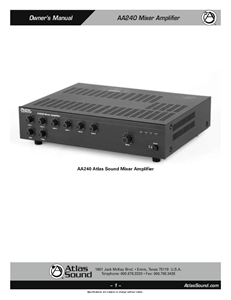

    AA240 Owners Manual (24 pages) AA240 Owners Manual (24 pages)

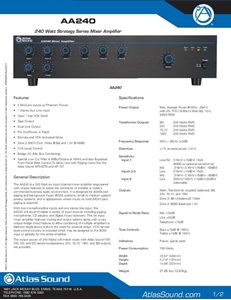

    AA240 Datasheet (2 pages) AA240 Datasheet (2 pages)
