6-Input, 120-Watt Mixer Amplifier w/ Module Input

AA120M
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $0.00
  • UL Listed
  • CUL
  • 70V / 100V Operation
    DESCRIPTION

    AtlasIED's AA120M is possibly the most versatile mixer/amplifier on the market today.

    True 3 zone matrixing (main 120W output, 1W output and line level output), 24VDC output with relay sync to the mute bus, bridge in/out with built-in relay control, (1) industry standard module input with direct to mix bus or direct to amp assignment, global or BGM input VCA control and multiple mute bus configuration options round out the unit's extensive feature set.

    The AA120M is ideal for applications like sound masking, industrial paging, retail and BGM, commercial PA, priority volume control applications and hotel ballrooms/meeting rooms just to name a few.


    FEATURES

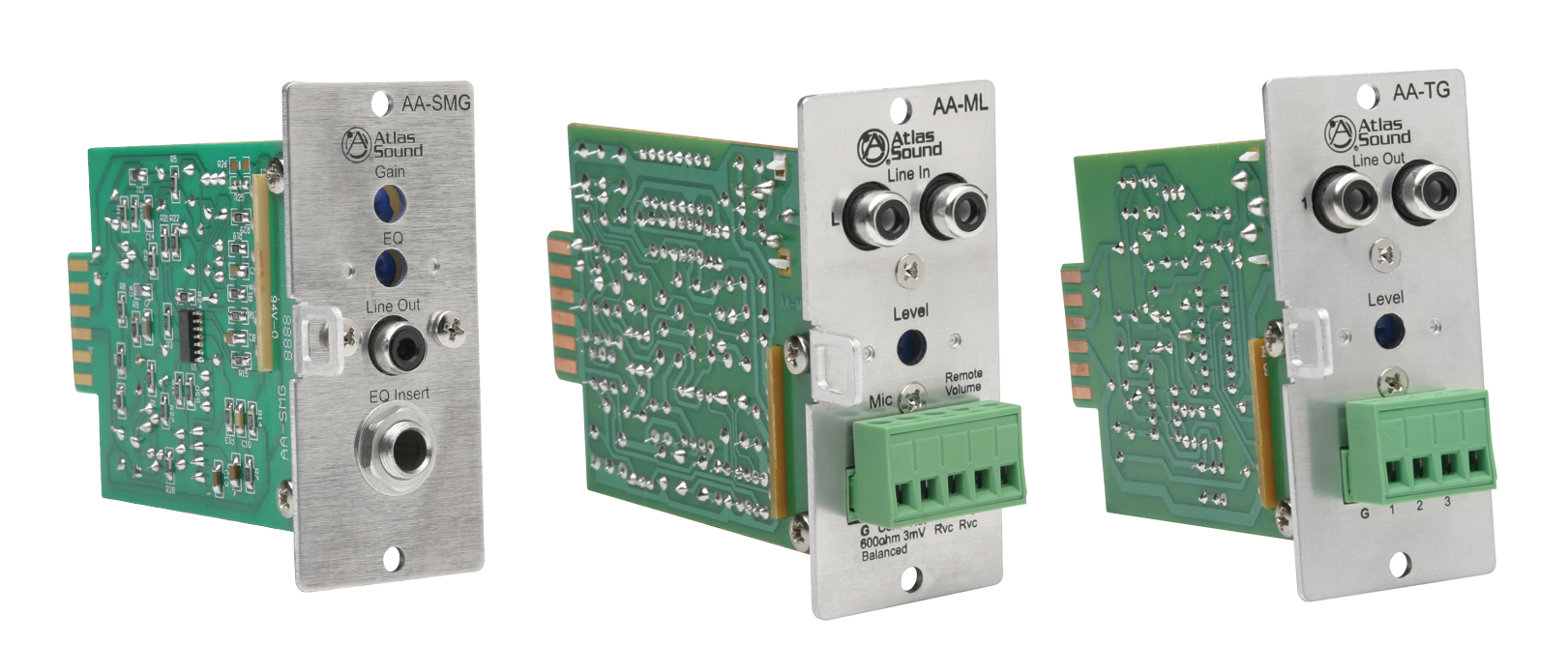

    • 1 Module input
    • 1 Stereo line (BGM) input
    • 24VDC output and patchable relay assignable to CC or Vox mute circuit (allows use of Atlas priority attenuators without any additional hardware)
    • 4 Mic/Line inputs
    • Bridge I/O with relay like AA120/AA240
    • Channel 2-4 and 6 can be configured for mute receive or mute send
    • Input trim control per channel
    • Module input features mix bus or "amp direct" routing (Perfect for sound masking as masking source is not affected by front panel EQ settings and treble control can be used for adding HF to page in masking systems)
    • UL60065 Listed
    • Separate zone 2/3 Matrix per channel
    • VCA control assignable to CH5 BGM input or main mix bus
    • Vox mute and contact closure mute may be assigned separately for "quasi" dual level mute priority via internal jumpers
    • Zone 2 / 3 output (line level and 1W 8Ω)

    SPECIFICATIONS
    Frequency Response 50Hz-20kHz ±3dB
    Connector Type Phoenix and RCA
    Output Power 120 Watts
    Rack Units 2
    Height 4 1/4" (10.71626 cm)
    Width 16 9/16" (42.0116 cm)
    Depth 14 1/16" (35.7124 cm)
    Safety Listed 60065-ROHS 2006 Compliant
    Shipping Weight 27.75 lbs (12.59 kgs)

    SUPPORT FILES
    CAD Drawing
    AA_Amps_Front_Rear

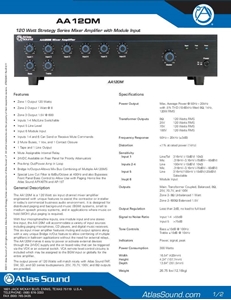

    Data Sheet
    Data Sheet

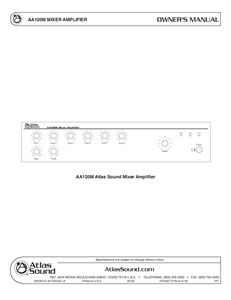

    Owners Manual
    AA120MManual
