8 inch Flanged Round Enclosure 7 inch Deep W/Fiberglass

96-8-7
Availability: In stock
Your price (USD): $39.99
  • UL Listed
  • TAA
  • BAA

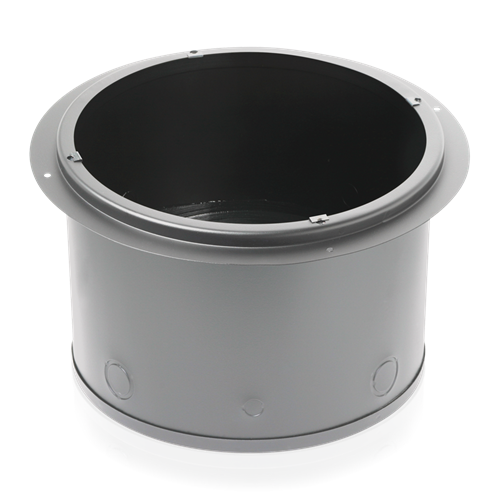

    AtlasIED 96-8-7 is a cost-efficient cylindrical protective enclosure that mounts a variety of AtlasIED grilles.

    Unit features welded CRS construction with a painted finish.

    Undercoated and patch-jute lined to eliminate mechanical and acoustical resonances.

    FEATURES
    Generous Acoustic Fiberglass Lining Improves Low Frequency Response to Achieve Fuller, Richer Bass
    Loudspeaker Enclosures with Greater Cubic Capacity Provide Improved Loading to Enhance High-Quality Sound Systems
    Mounting Holes Located on the Internal Plaster Flange to Allow Easy and Convenient Installation
    Round, Recessed, Model to Meet Professional Sound Installation Requirements
    SPECIFICATIONS
    Depth 7" (17.78 cm)
    Diameter 11 7/8" (30.16 cm)
    Shipping Weight 4.67 lbs (2.12 kgs)
    Mounts Baffle 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, M222(W), P900, VP-60R, U51-8, U61-8W, U62-8, UG22-8, UM222W
    Safety Listed 1480
    SUPPORT FILES
    CAD Drawing
    96-8-7 CAD Drawing
    Data Sheet

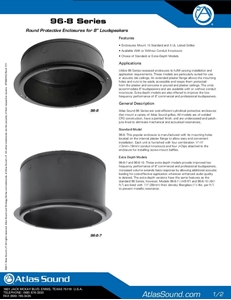

    ATS004102 96-8 Datasheet RevA (2 pages)
